Inverse-Welding Prevention Cap Tip for Nut Welding /
Inverse-Welding Prevention Outer Taper Tip for Nut Welding

Overview

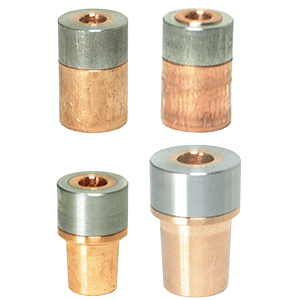

When the nut is set upside down, the nut feet are welded to the SS ring, and prevent inverted nut welding to the work piece.

Schematic diagram

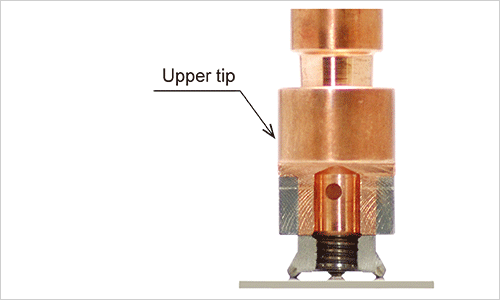

Normal welding

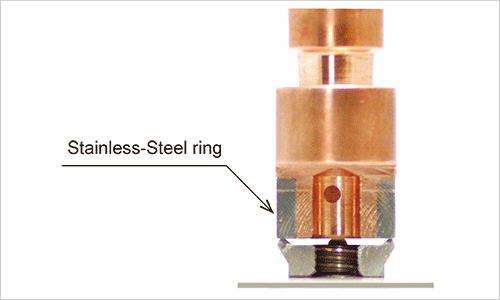

Inverse welding  ※Feet of the nut welded to the stainless-steel ring.

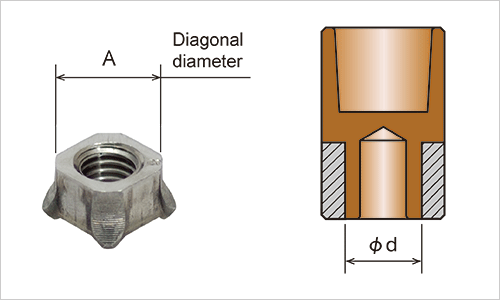

How to choose the proper Inverse-Welding Prevention Tip (for square nut)

φd must be approx. 1 mm shorter than A.
If A is 11 mm, φd must be 10 mm.

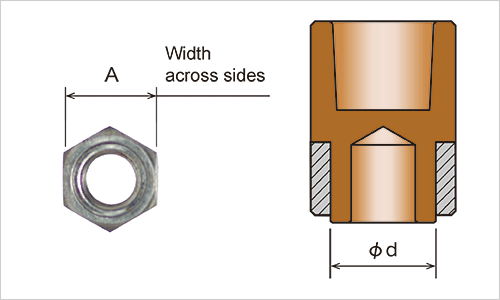

How to choose the proper Inverse-Welding Prevention Tip (or hex nut)

φd must be approx. 1 mm shorter than A.
If A is 12 mm, φd must be 11 mm.
※Unsuitable for pilot nut.
