Poor weld detection system

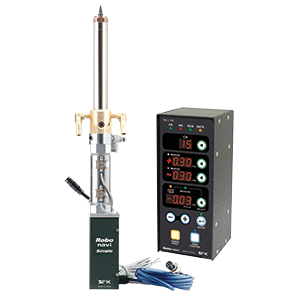

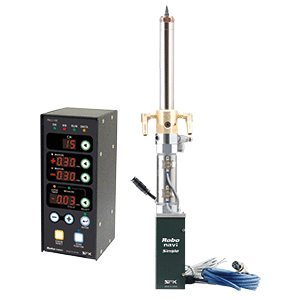

Robo-navi-Single

Overview

Robo-navi-Single detects with a high accuracy whether or not the nut and the workpiece are set correctly right before welding.
It prevents manufacturing defectively welded products.
It is a poor weld detection system developed for robots and automated machinery in nut welding.



- SMK has acquired the intellectual property rights both inside and outside Japan.

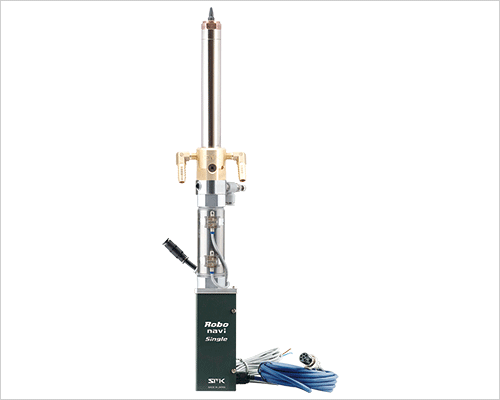

Robo-navi-Single Slide Unit

Easy replacement of guide pins

By using the entire stroke of the cylinder, the guide pin is shifted from the inside of the holder for easy replacement.


Positioning is much easier

The replacement work can be done easily without time-consuming adjustment and centering work that occurs when replacing each part and electrode.


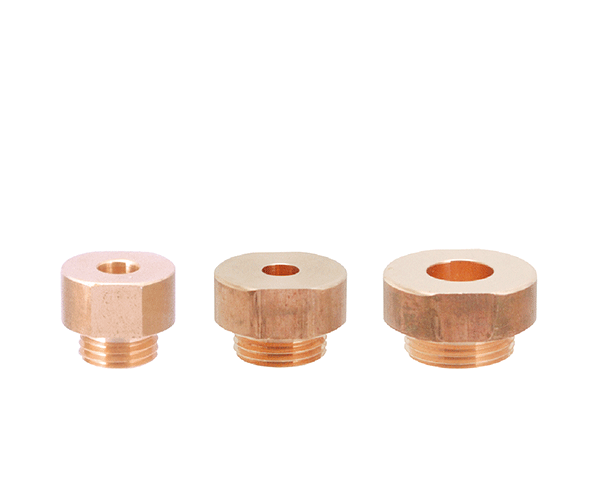

Air Blow system

Air blow system reduces spatter adhesion to nuts, guide pins, and inside of the unit. Air cooling effect prevents heating of the electrode.

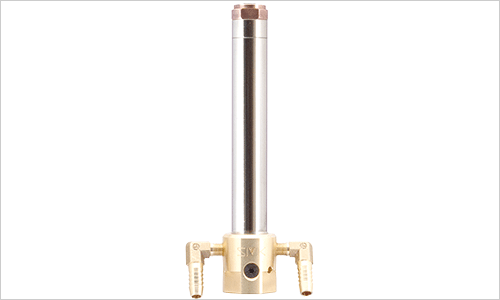

Holder has excellent cooling effect! Six sizes available.

Internal water-cooling system that directly cools the inside of the holder reduce abrasion and spatter adhesion caused by heat on the electrode part.
Slim and compact body without water jacket or intermediate adapter allows minimum interference with the workpieces.

We have 6 standard sizes for inner water-cooling holder.
Please contact us for other sizes.


Holder outer dia. Φ25 Φ32
Suitable nut size M4・M5・M6・M8 M10・M12・7/16
Holder lenghth 150㎜・200㎜・250㎜ 150㎜・200㎜・250㎜

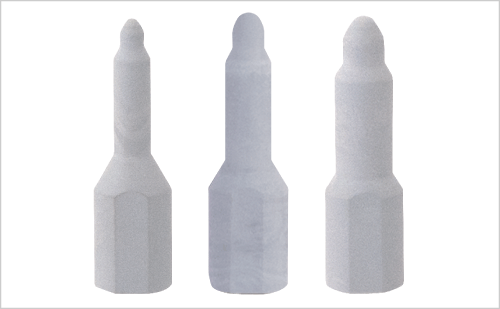

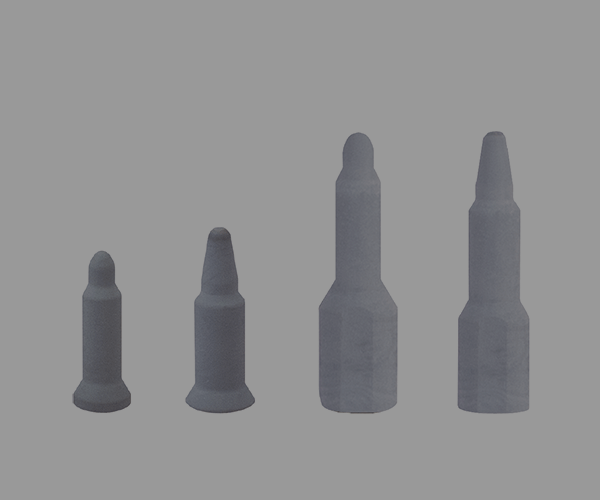

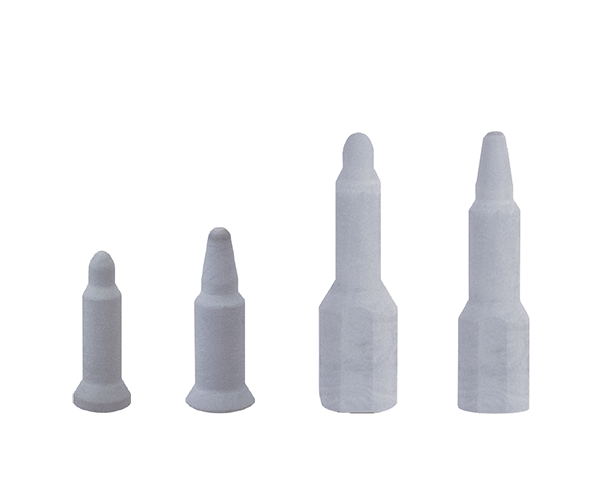

Ceramics guide pin specification

Ceramics guide pin (Silicon nitride) is included as standard equipment.
Ceramics guide pin has high hardness and long service life. Because there is no electrocorrosion, nor abrasion.
Also there is no adhesion of spatter and jamming of nut.
The use of silicon nitride guide pins stabilizes navi measurements.

No friction!

Adoption of high-powered cylinder has reduced friction between the workpiece and the guide pin, and it raises operation rate.

Tact up effect

Vertical movement of the guide pin enables high-speed movement of the workpiece, and to shorten tact time.

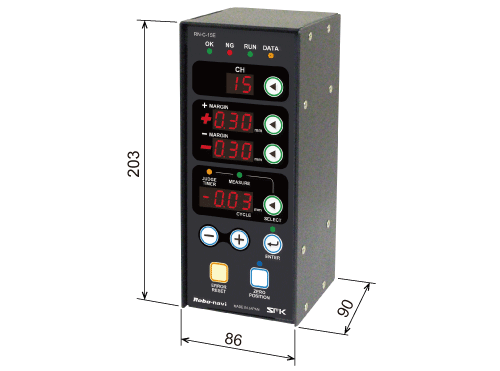

Robo-navi Controller

  • 15 conditions in standard specification, and up to 31 conditions (optional) can be registered.
  • OK output and NG output from this unit to external equipment is possible.
  • Channel can be specified by external equipment.
  • Overlapped nuts detection (optional sensor)
  • Manufacturing defects prevention

Attachments

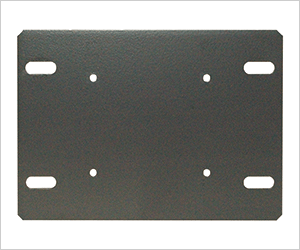

Controller mounting plate

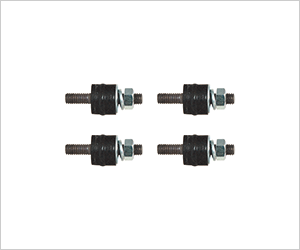

Rubber cushion

Specification

Product name Robo-navi-Single
Weight Approx. 3.4 kg
(The size and weight are for the cases of a holder dia. 25 x 150 mm.)
Guide pin drive Air cylinder
Cooling method Inner water-cooling
Holder outer dia.(mm) 25/32
Holder overall length(mm) 150/200/250
Attachments Controller mounting plate: 1 pce, Rubber cushion: 4 pcs
