Poor weld detection system

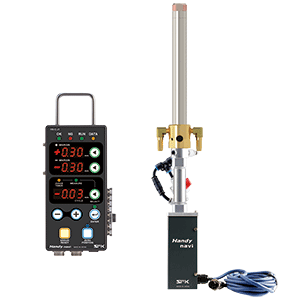

Handy-navi-Bolt

Overview

Handy-navi-Bolt detects with a high accuracy the difference in length of the neck lower part and shape of the tip of the bolt right before welding. Also, it detects whether or not the workpiece is set correctly in the same way.
It prevents manufacturing defectively welded products.
It is a poor weld detection system for bolt welding developed to be able to mount on any welding machine. There are two types: Air cap with O-ring specification and Water jacket and intermediate adapter specification.



- SMK has acquired the intellectual property rights both inside and outside Japan.

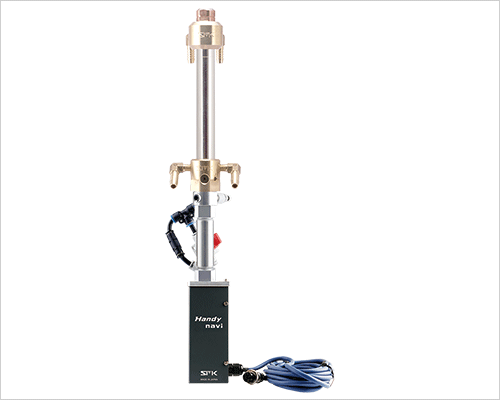

Handy-navi-Bolt Slide Unit

・Replaceable for nut welding

Multi-functional type that can be used for nut detection by simply replacing the attachment.

・Positioning is much easier

The replacement work can be done easily without time-consuming adjustment and centering work that occurs when replacing each part and electrode.

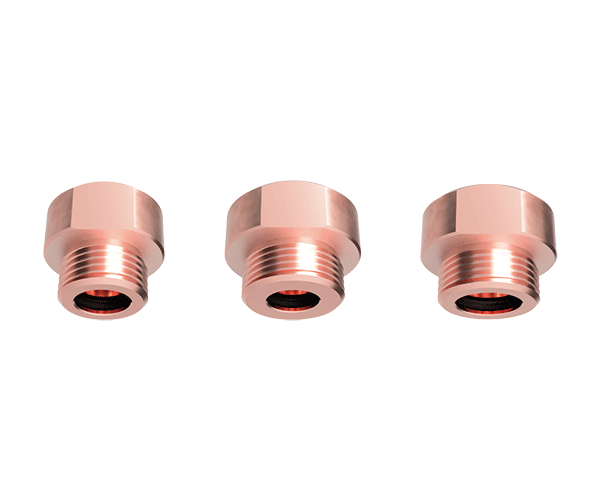

Air cap with O-ring specification

  • Suitable for bolts with a length of 15 to 35 mm below the head.


Internal water-cooling system that directly cools the inside of the holder reduce abrasion and spatter adhesion caused by heat on the electrode part.
Slim and compact body without water jacket or intermediate adapter allows minimum interference with the workpieces.

We have 6 standard sizes for inner water-cooling holder.
Please contact us for other sizes.


Holder outer dia. Φ25 Φ32
Suitable for bolt M6・M8 M10
Holder lenghth 140㎜・190㎜・240㎜ 140㎜・190㎜・240㎜

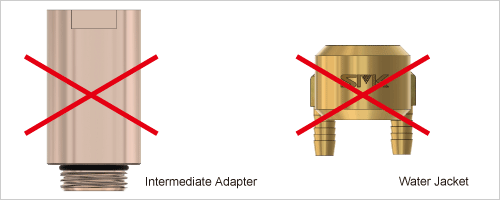

The following two items are not required.

Water jacket and intermediate adapter specification

  • Suitable for bolts with a length of 35 mm or less below the head.


Internal water-cooling system that directly cools the inside of the holder reduce abrasion and spatter adhesion caused by heat on the electrode part.

We have 6 standard sizes for inner water-cooling holder.
Please contact us for other sizes.


Holder outer dia. Φ25 Φ32
Suitable for bolt M5・M6・M8 M10
Holder lenghth 140㎜・190㎜・240㎜ 140㎜・190㎜・240㎜

Air cap with O-ring specifications and Water jacket and intermediate adapter specifications Common design

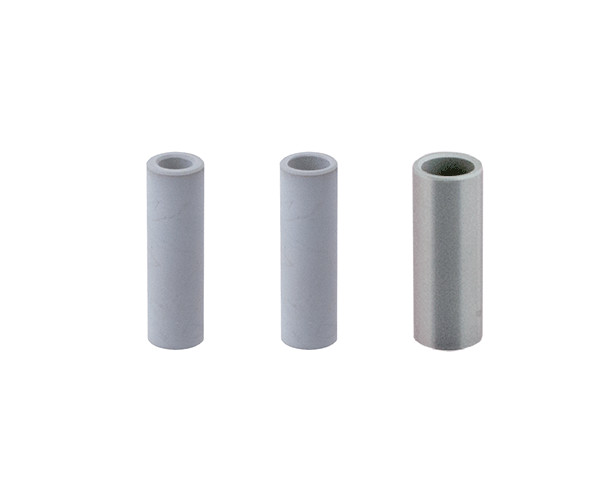

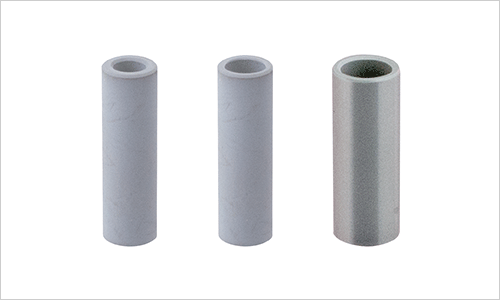

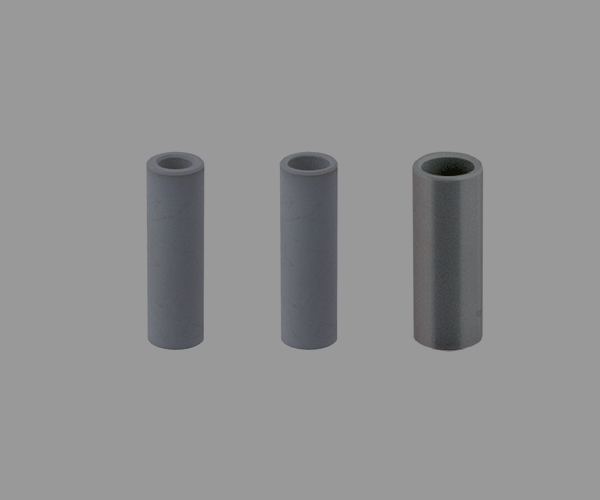

Ceramics guide pipe specification

Ceramics guide pipe has high hardness and long service life. Because there is no electrocorrosion, nor abrasion. Also there is no adhesion of spatter and jamming of bolt.

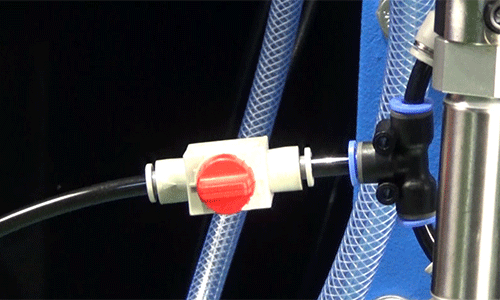

Air-Bleeding Valve

Air-Bleeding Valve is included as standard equipment, which enables quick air bleeding in electrode replacements.

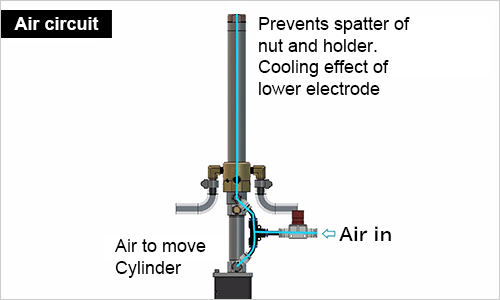

Air Blow system

Air blow system reduces spatter adhesion to bolts, guide pipes, and inside of the unit. Air cooling effect prevents heating of the electrode.

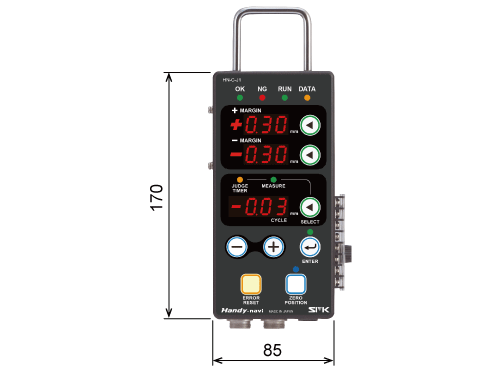

Handy-navi Controller

  • CE marking acquisition
  • Palm-sized, outstanding operability
  • Overlapped nuts detection (optional sensor)
  • Manufacturing defects prevention
  • Error display

Attachments

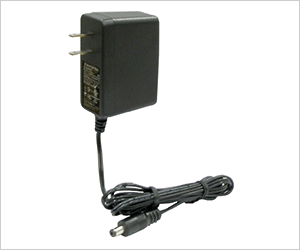

AC adapter

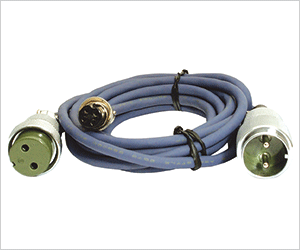

Junction cable for manual operation

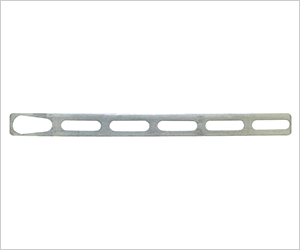

Controller mounting plate

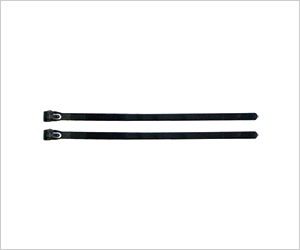

Cable Tie

Specification

Product name Handy-navi-Bolt
Air cap with O-ring specification
Weight Approx. 1.94kg(The size and weight are for the cases of a holder dia. 25 x 150 mm.)
Guide shaft drive Air cylinder
Cooling method Inner water-cooling
Holder outer dia.(mm) 25/32
Holder overall length(mm) 140/190/240
Attachments AC adapter: 1 pc, Junction cable for manual operation: 1 pc, Controller mounting plate: 1 pc, Cable Tie: 2 pcs

Product name Handy-navi-Bolt
Water jacket and intermediate adapter specification
Weight Approx. 2.34kg(The size and weight are for the cases of a holder dia. 25 x 150 mm.)
Guide shaft drive External water jacket / Inner water-cooling
Cooling method Inner water-cooling
Holder outer dia.(mm) 25/32
Holder overall length(mm) 140/190/240
Attachments AC adapter: 1 pc, Junction cable for manual operation: 1 pc, Controller mounting plate: 1 pc, Cable Tie: 2 pcs
