Inner Electrodes

language

Overview

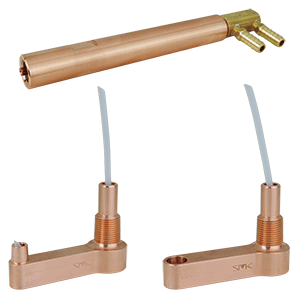

The Inner Electrode is designed to weld the inside of sheet metal housing.

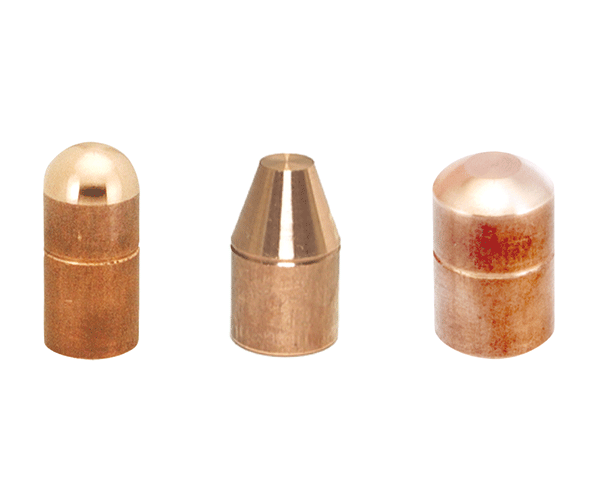

We have high cooling effect cap tip specification and mini tip specification which is ideal for welding in narrow spaces, so you can choose according to your welding environment.



- Pending registration for a trademark   - Design registration pending

Features

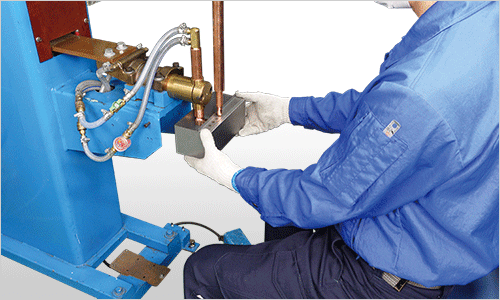

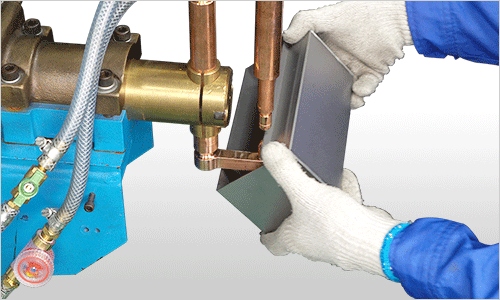

The shape is designed easy to put inside workpiece.

The shape is designed easy to put inside workpiece so it is easy to weld hard-to-reach spots. Convenient for welding home appliances, office equipment, electrical equipment, etc.


Available in two specifications

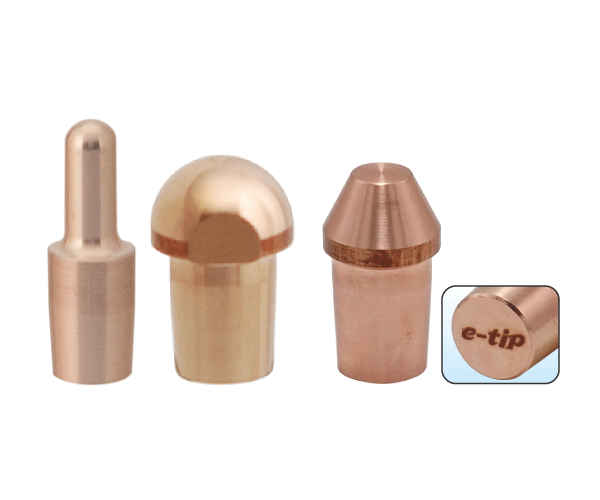

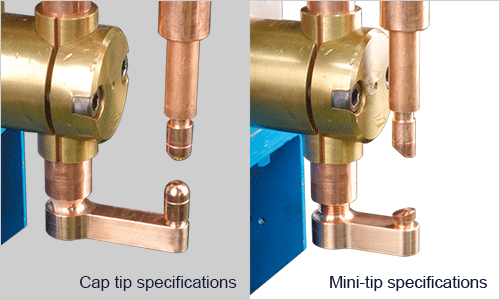

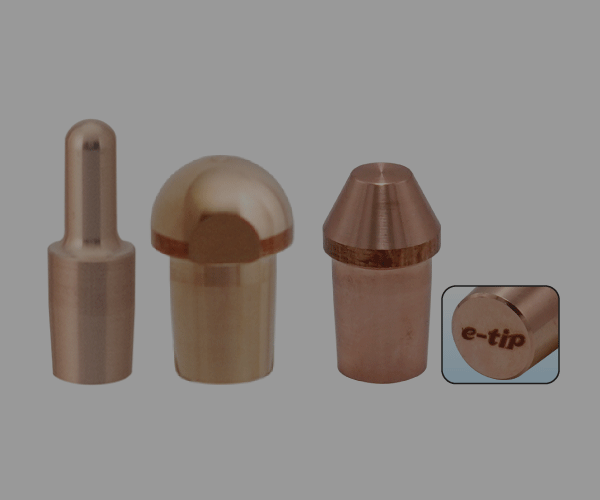

We have cap tip specifications, and mini tip specifications which is ideal for welding narrow spaces, so you can choose according to your welding environment.
Tip electrode is replaceable and its structure enables cooling water reaches to the tip end so the running cost can be kept lower and economical.

Against water leakage

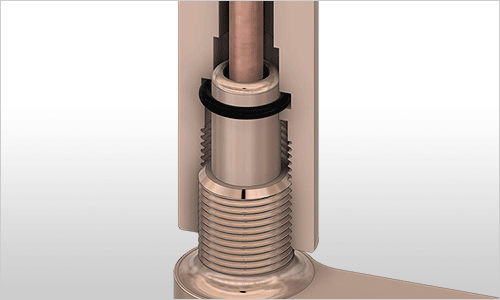

The O-ring is built into the Inner Holder to prevent water leakage.

Easy replacement

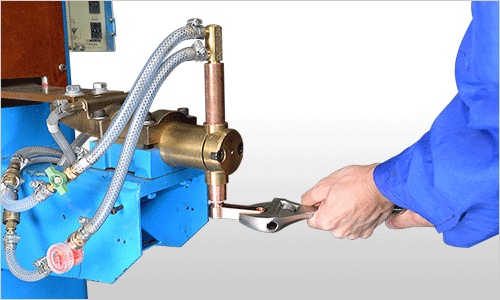

It's easy to replace, you can make job changes quickly. Even if the inner holder position shifted when replacing, the hose connector is tapered so final adjustment is easy.

Maximum welding force

Inner Adapter Suitable for φ9 Cap tips

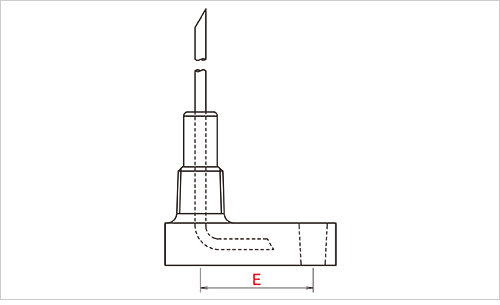

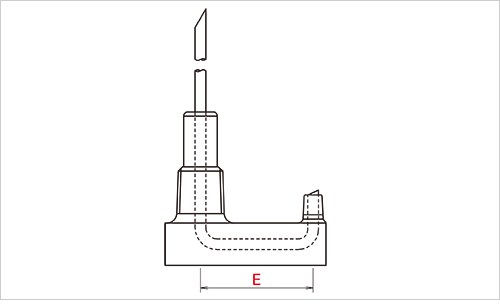

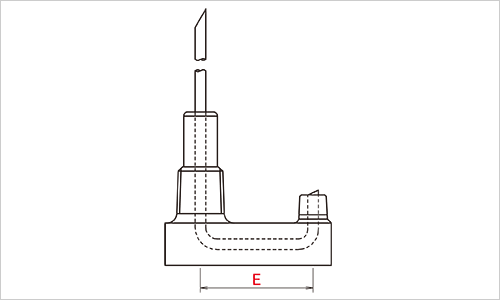

E (Offset) 40 50 60 70
Maximum welding force(kN) 1.0 0.9 0.8 0.5

Inner Adapter Suitable for φ12・φ13 Cap tips

E(Offset) 40 50 60 70
Maximum welding force(kN) 2.0 1.8 1.5 1.0

Inner Adapter Suitable forφ10・φ12 Mini tips

E(Offset) 40 50 60 70
Maximum welding force(kN) 2.0 1.8 1.5 1.0

Inner Adapter Suitable forφ16 Mini tips

E(Offset) 40 50 60 70
Maximum welding force(kN) 2.0 1.8 1.5 1.0

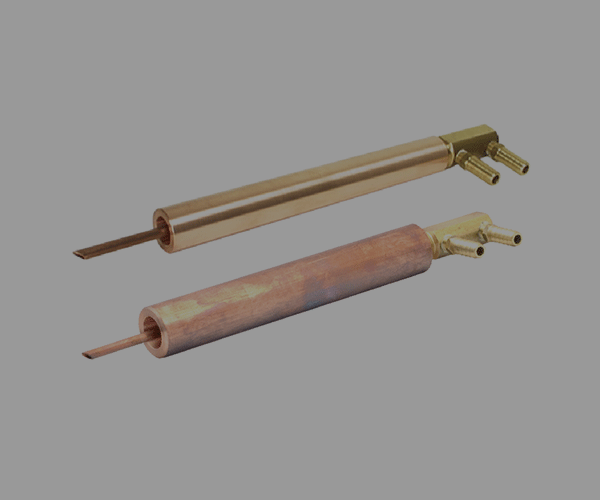

Holder Size

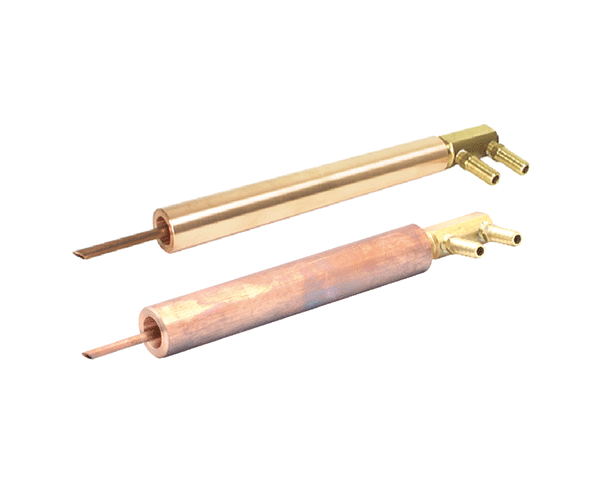

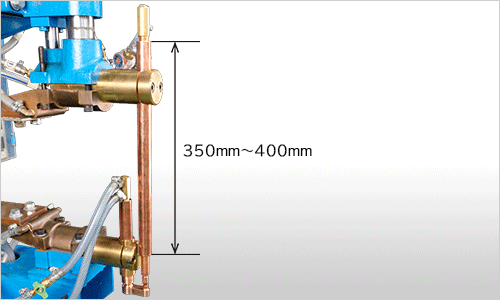

Please use an upper straight holder with φ 25 and a length of 350 to 400 mm.
