Height detection system
Upper-navi

Example of specification document for Upper-navi

language

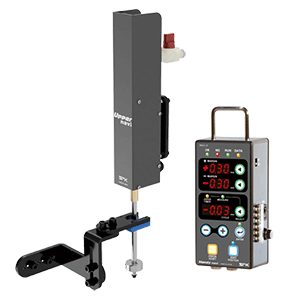

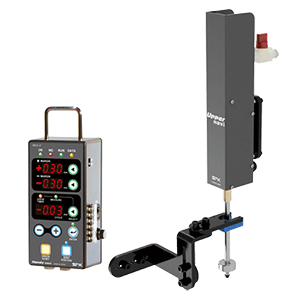

Overview

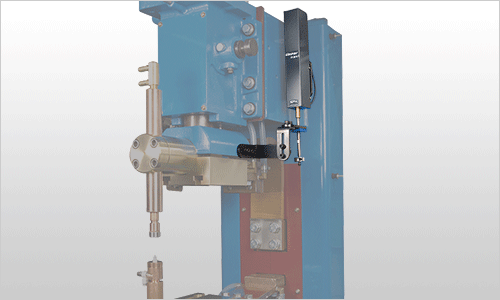

Upper-navi can detect whether nut/bolt is set or not, nut height and unsuitable workpiece thickness.

- Utility model - Registered trademark

Features

Fine adjustment of the jig is not necessary.
Easy to set a reference point.
Detection accuracy is 0.01mm.
Easy mounting attachment.
Easy to install, attaching left-right adjustable unit.

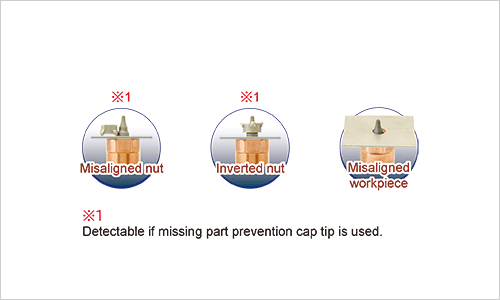

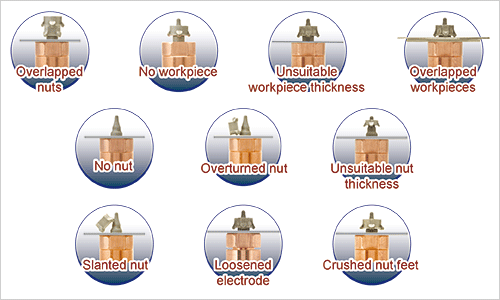

Examples of Incorrect Nut Setting

Undetectable

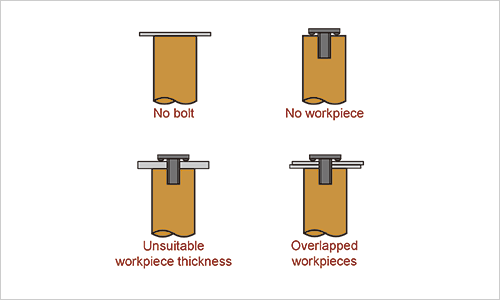

Examples of Incorrect Bolt Setting

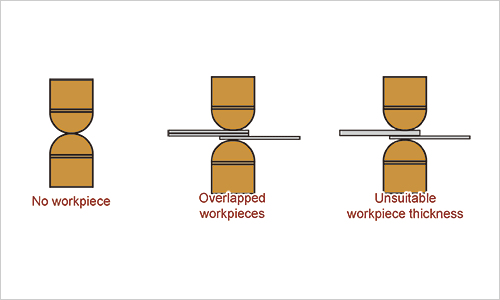

Examples of Incorrect Spot Setting

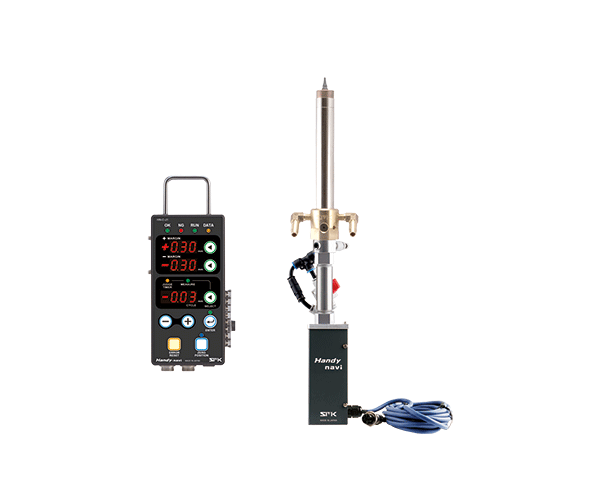

Related products

Poor weld detection system for Nut welding

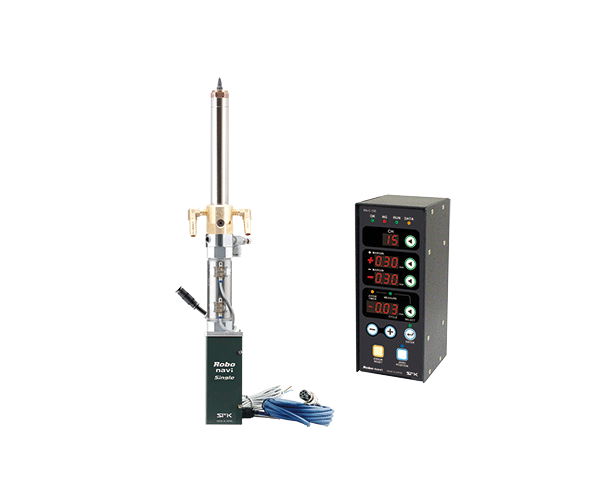

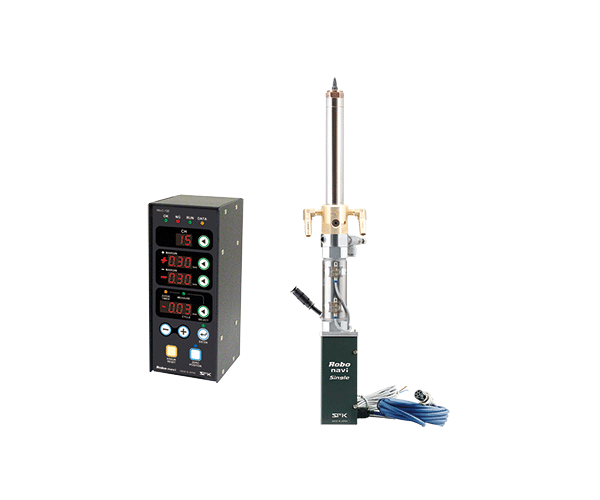

Robo-navi-Single

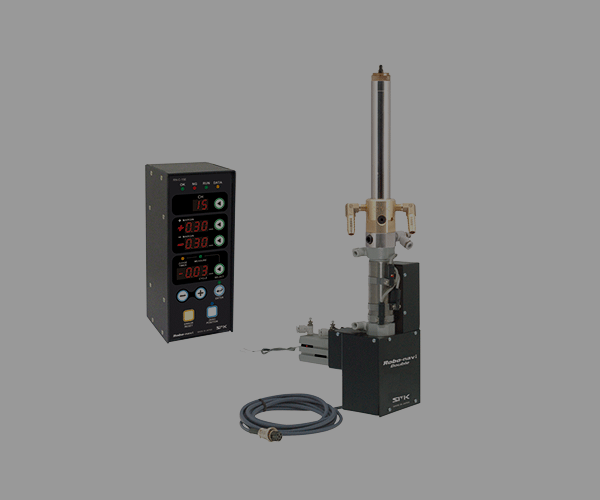

Robo-navi-Double
