About navi for Nut Welding

No More Poor Weld

The navi detects with a high accuracy whether or not the nut and the workpiece are set correctly right before welding. It prevents manufacturing defectively welded products.

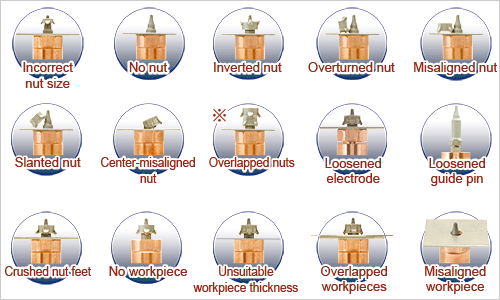

Examples of Incorrect Nut Setting

※Consult us if you need to detect overlapped.


Method of Nut Detection

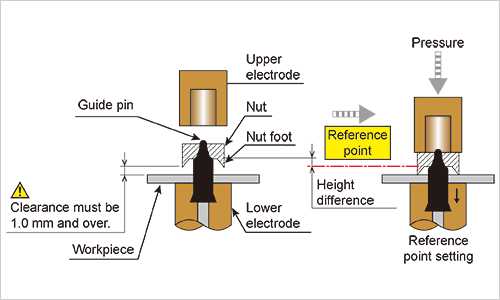

When pressured, the guide pin is pressed by the upper electrode to descend.
This height difference determines whether the nut is set correctly or not.

How to Detect Incorrect Nut Setting

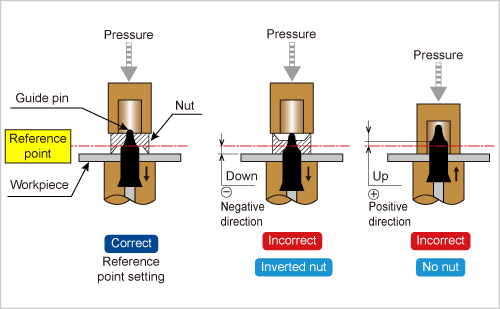

Input of +/- tolerance to a reference point allows the device to determine whether the nut is set correctly or not.
