Space-navi | The welding electrode is SMK

language

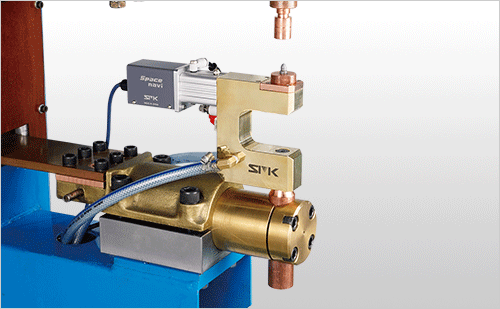

Overview

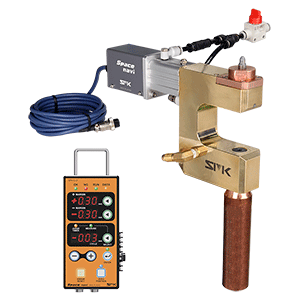

Space-navi detects with a high accuracy whether or not the nut and the workpiece are set correctly right before welding.

Suitable for nut size: M4・M5・M6・M8・M10・M12・7/16

- Design registration pending - Patent pending - Registered trademark

Features

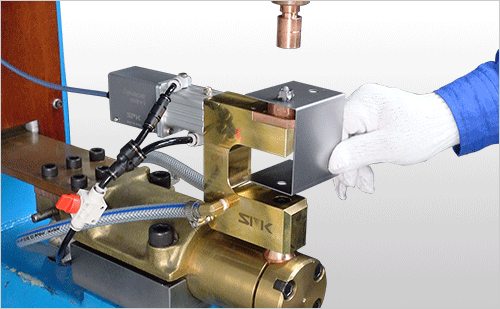

Bad welds on upper side of the U-shaped workpieces can be detected.

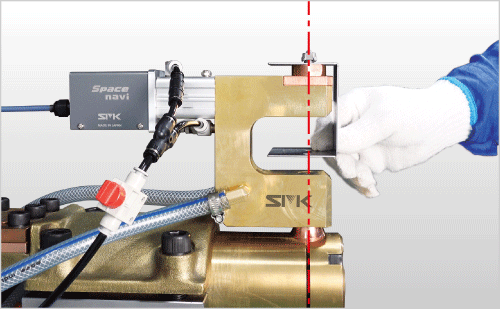

Hardly bent, ensured concentricity design.

Pressure is applied concentrically, so it is hardly bent, and this enables stable welding quality.

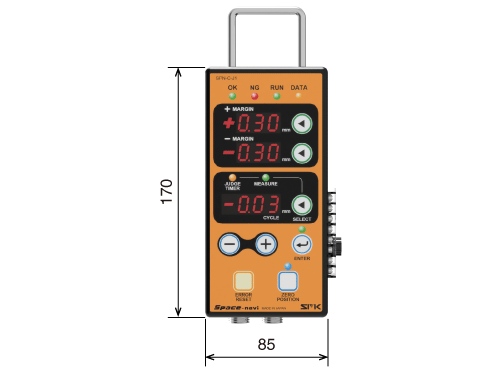

Space-navi sensor unit

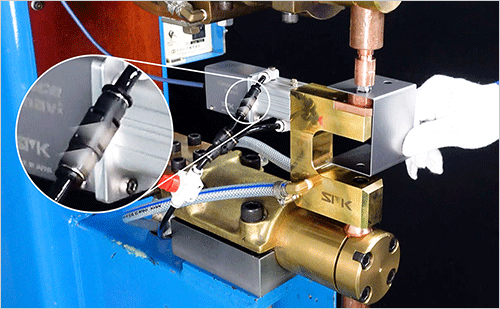

Equipped as standard with a quick exhaust valve. Improve durability of the air cylinder.

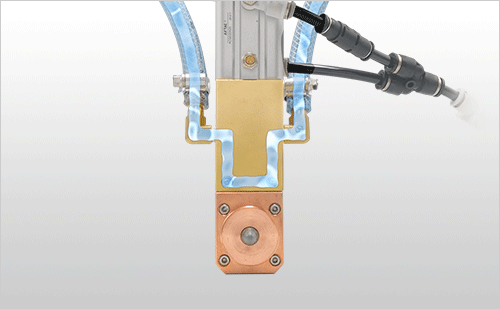

Internal water-cooling system that directly cools the inside of the arm reduce abrasion and spatter adhesion caused by heat on the electrode part.

Positioning is much easier

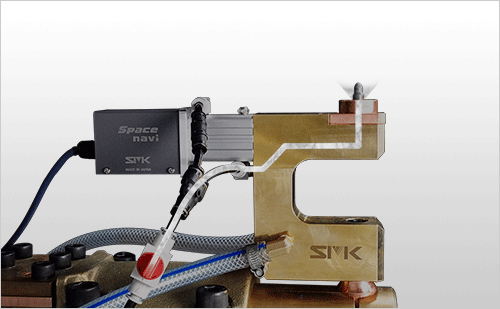

Air blow system reduces spatter adhesion to nuts, guide pins, and inside of the arm. In addition, Air cooling effect prevents heating of the electrode.

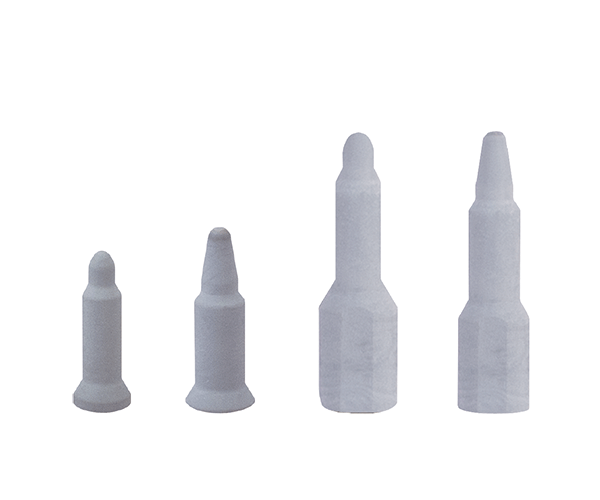

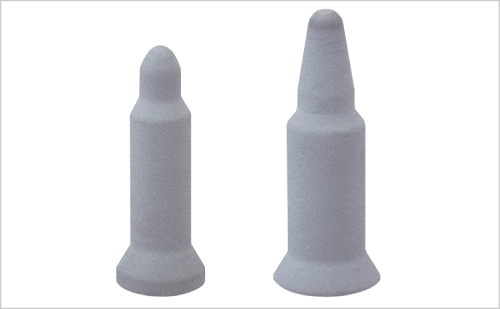

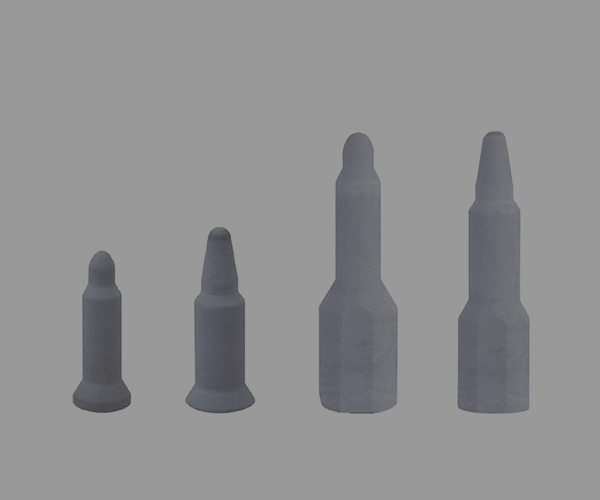

Ceramics guide pin specification

Ceramics guide pin (Silicon nitride) is included as standard equipment.

Ceramics guide pin has high hardness and long service life. Because there is no electrocorrosion, nor abrasion.
Also there is no adhesion of spatter and jamming of nut.
The use of silicon nitride guide pins stabilizes navi measurements.
