Overview

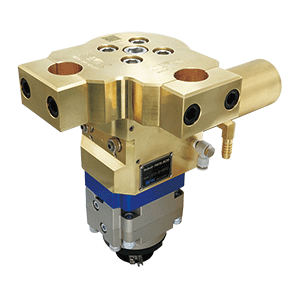

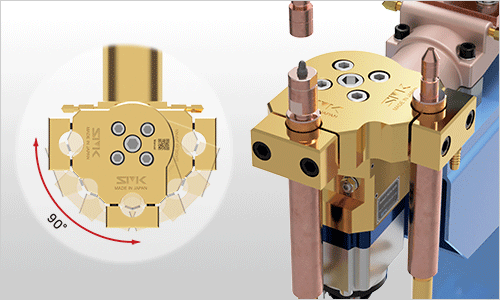

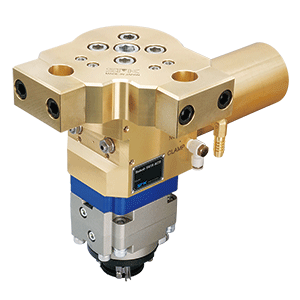

Two holders can be attached to the Robot-Twin Arm. Suitable for robot, automatic machines and manual operations. It greatly improves tact time.

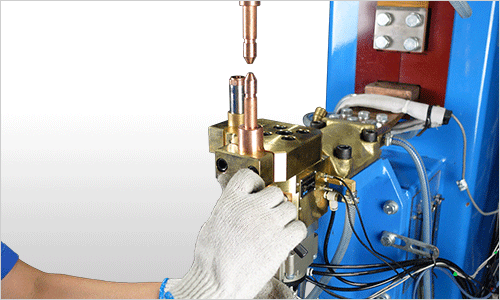

Make job change quickly because the arm automatically rotates. The rotating arm is clamped by the internal air cylinder of main unit.

- Registered trademark -Registered design -International design

The shape has changed

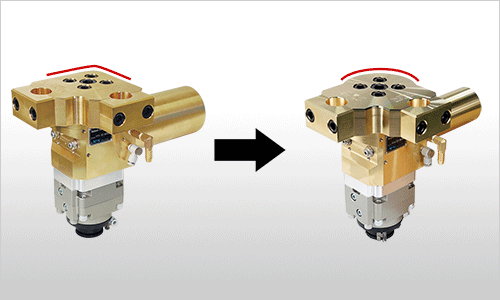

The shape of the rotating arm has been partially changed. Interference with the surroundings and usage will not change.

Features

2 in 1

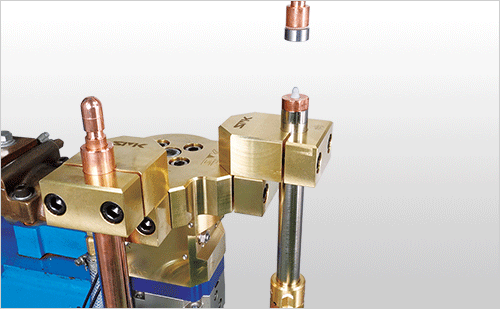

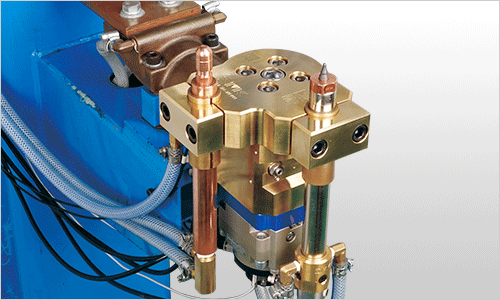

Two types of welding can be done on one welding machine without a set-up change, such as a combination of spot welding and nut welding or a combination of different nut sizes like M6 and M10.

Space-saving

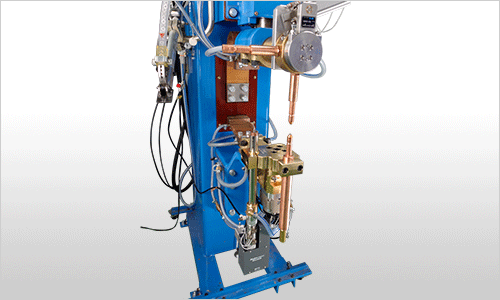

Two types of welding can be done on one welding machine so it requires less facility space.

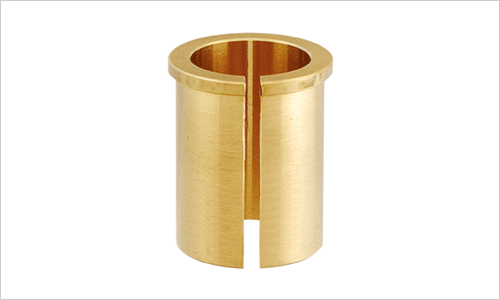

Holder diameter φ25・φ32

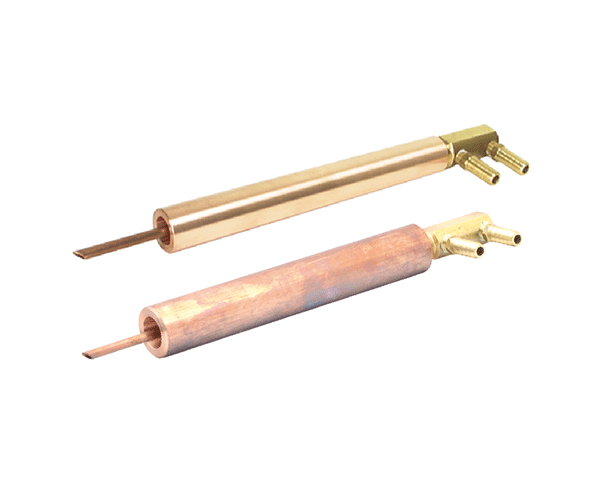

It can be installed on your current straight holder and various navi system. It is easy to adjust the height of the electrode.
If you use this with navi, navi can detect up to four types of nut depending on the combination.

Maximum welding force and Cautions

Maximum welding force must be below 5.0kN.

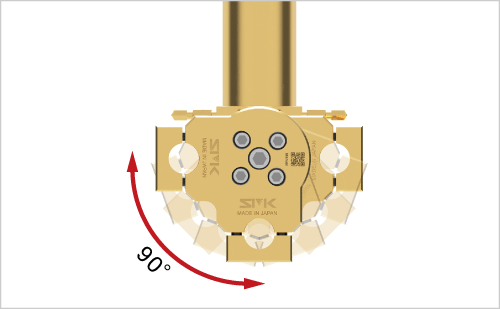

Rotation speed and rotation angle (90 degrees) are set according to our company standard before shipping. Do not adjust by your self when you use. Otherwise, malfunction may result.
