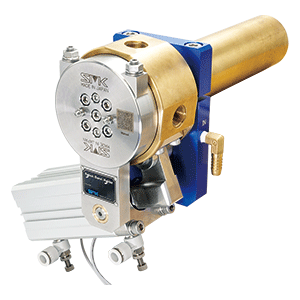

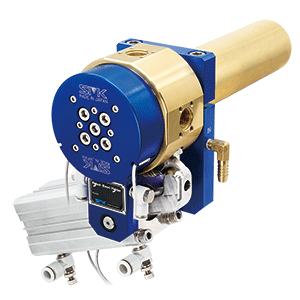

Robot-Benri Holder

Overview

Two types of welding electrodes can be set on a Robot Benri Holder.

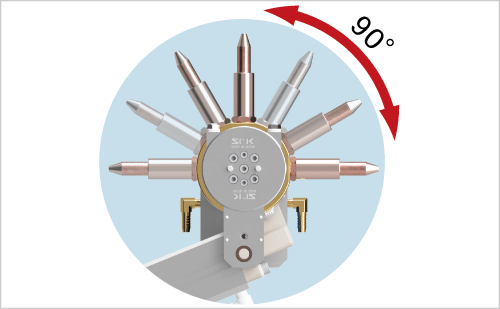

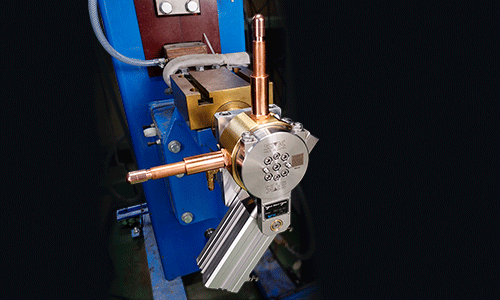

The electrode can be switched automatically by automatically rotating the holder by 90 °.


Two specifications

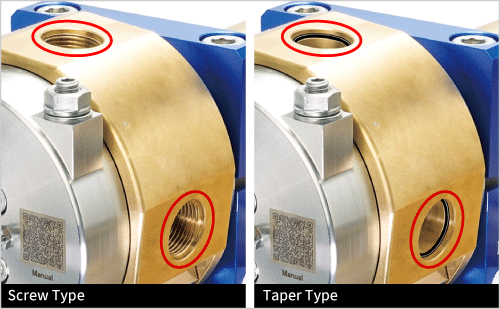

We have two types of Robot Benri Holders, Screw type and Taper type.
Please choose according to your operation environment.

Features

Two types of welding are possible with one welding machine.

Reduce equipment cost by installing on upper and lower positions.
Improve tact time.

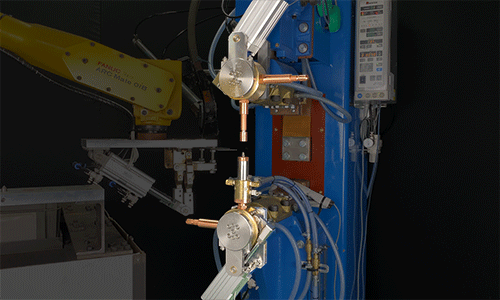

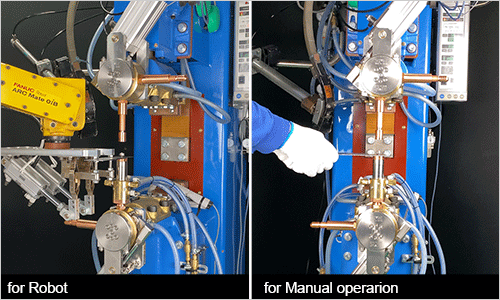

Suitable for Robot, automatic machine and manual operarion.

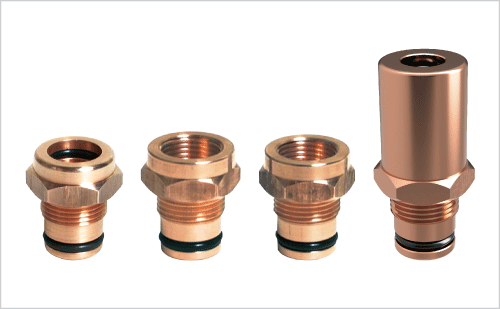

Electrode adapter in case of using Screw Type

Use it with Benri Adapters made for Robot-Benri Holders.
We have adapters for various welding applications.
The O-ring specification prevents the electrodes from loosening and falling.
Each electrode is cooled individually.

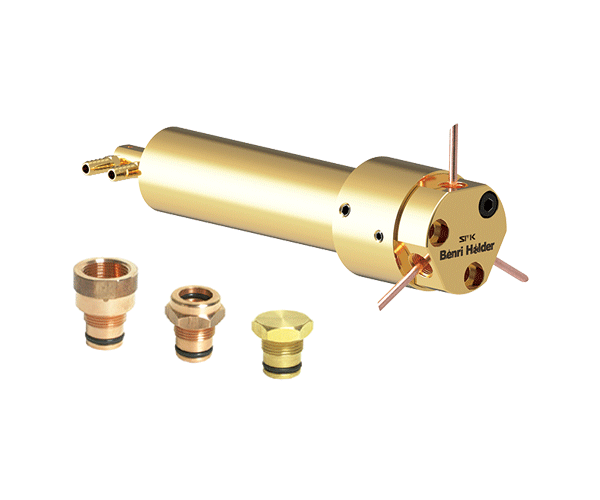

Benri Holder (Web Catalog)


Electrode adapter in case of using Taper Type

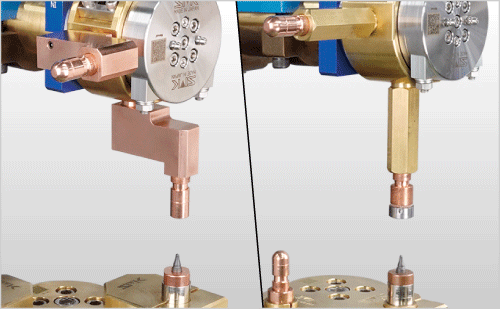

Attaching an Offset Taper Adapter or a Taper Adapter enables interference avoidance such as workpieces, and also it enables adjusting stroke.

As a guide, set the maximum welding force 3.0kN or less when using an Offset Taper Adapter.

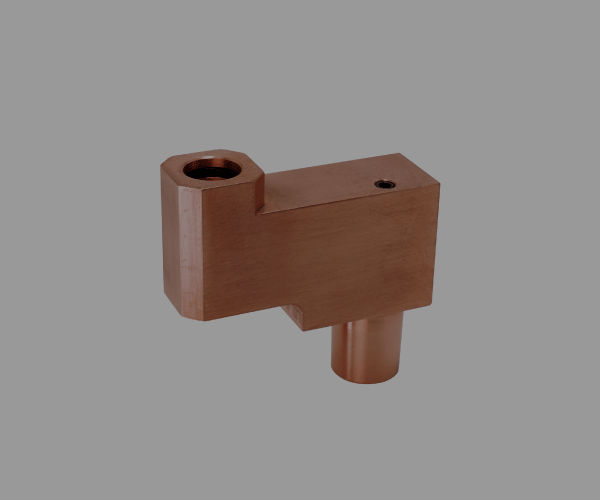

Offset Taper Adapter (Web Catalog)


Maximum welding force and Cautions

Set the welding force within 2.0kN to 6.0kN.

Using only one side for a long time will lead to the main body failure, so please use alternately.

Rotation speed and rotation angle (90 degrees) are set according to our company standard before shipping.
