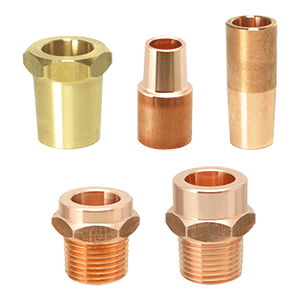

Adapter

Features

Taper Adapter

When taper specification or diameter of the tip, shank and holder do not match, it can be mounted by attaching the adapter in the middle.

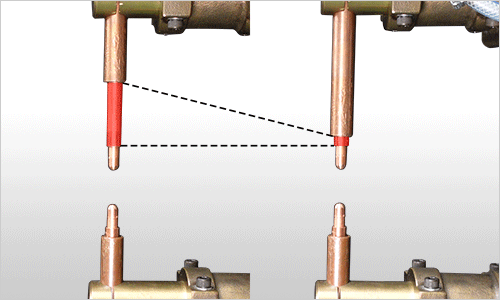

Available in a variety of lengths, it is useful for adjusting span of the machine stroke.

Taper Adapter

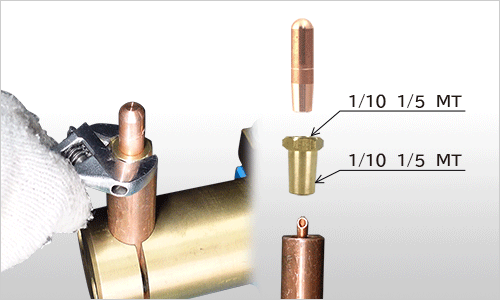

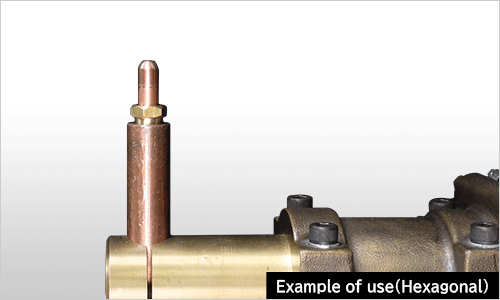

Hexagonal

Easy to remove with hex head design and also hardly gets damage.

Suitable for inner taper 1/5・1/10・MT#1・MT#2, outer taper 1/5・1/10・MT#1・MT#2・MT#3. This is useful for adjusting taper dimension.
It is made of brass so it prevents scuffing.

Taper Adapter

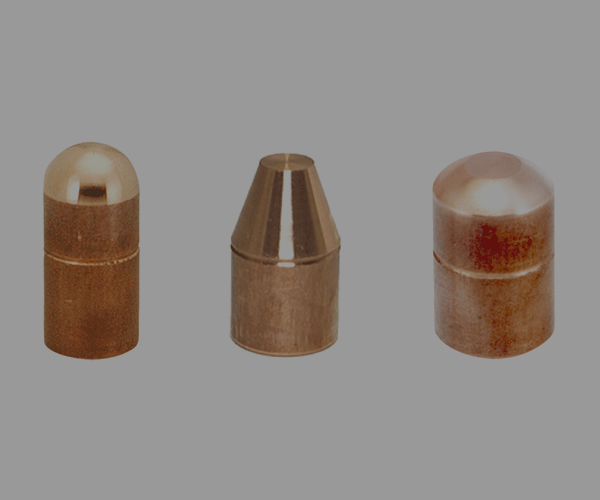

Cap Tip Type

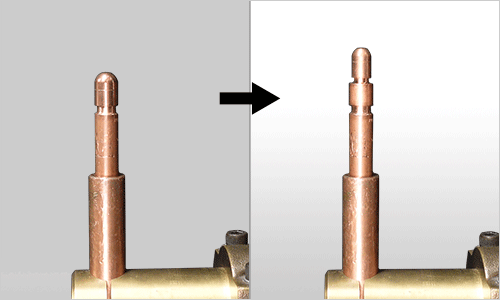

It connects a cap tip and a shank.
A cap tip of a different diameter can be used without replacing the holder and shank.
Suitable for Φ9・Φ12・Φ13・Φ16 cap tips

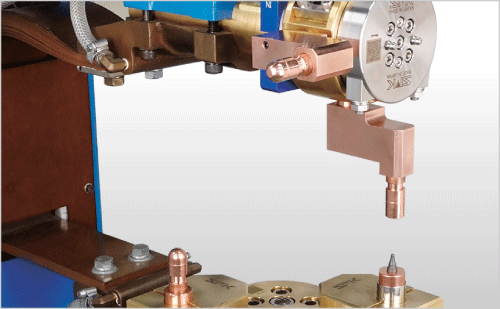

Offset Taper Adapter

φ22

Interference of workpiece and so forth can be avoided.
As a guide, set the maximum welding force 3.0kN or less when using a Robot-Benri Holder (Taper Type) .

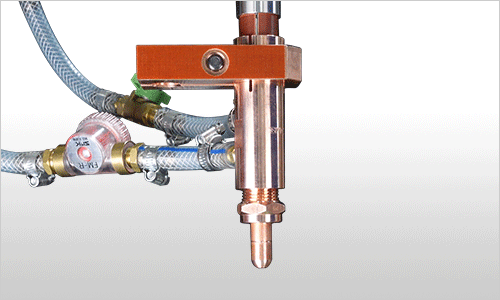

Screw Adapter

PT Screw / NPT Screw

Screw adapters are widely used for gun arms of stud welding machines and welding robots by attaching on a point holder.

We have PT Screw type and NPT Screw type. Please choose the proper specification.

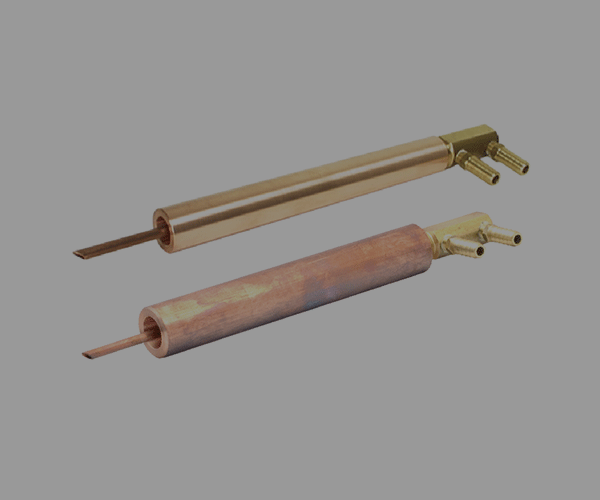

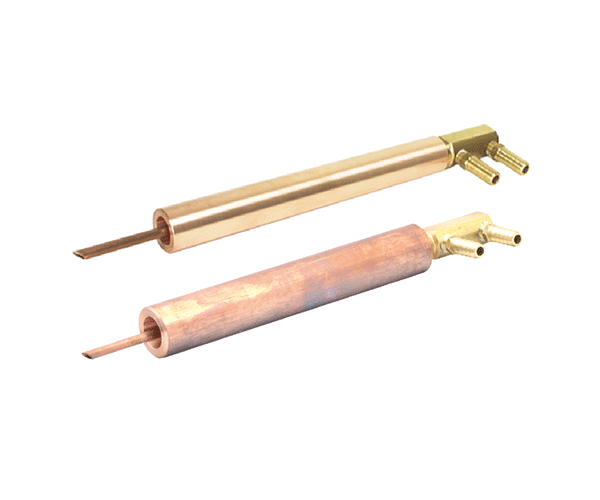

Related products
