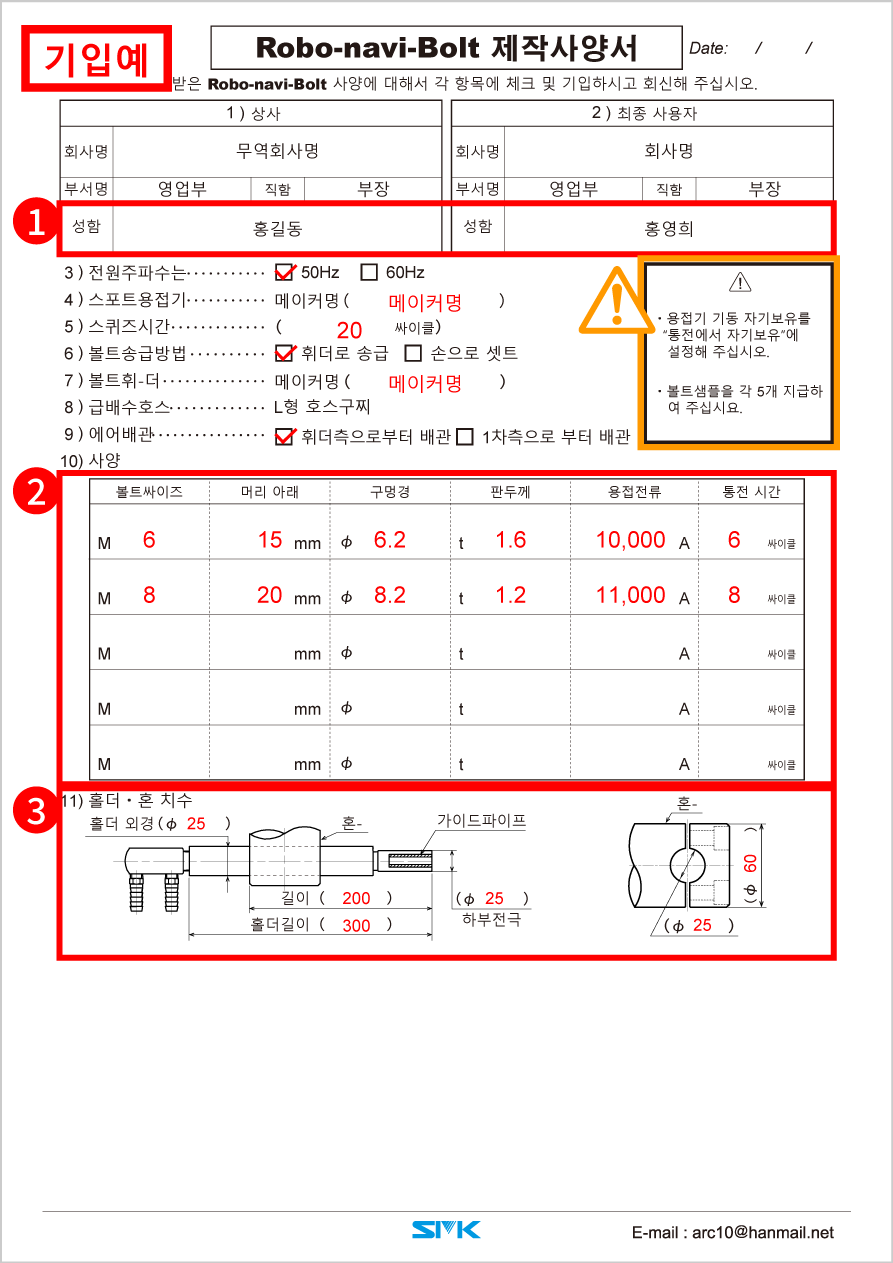

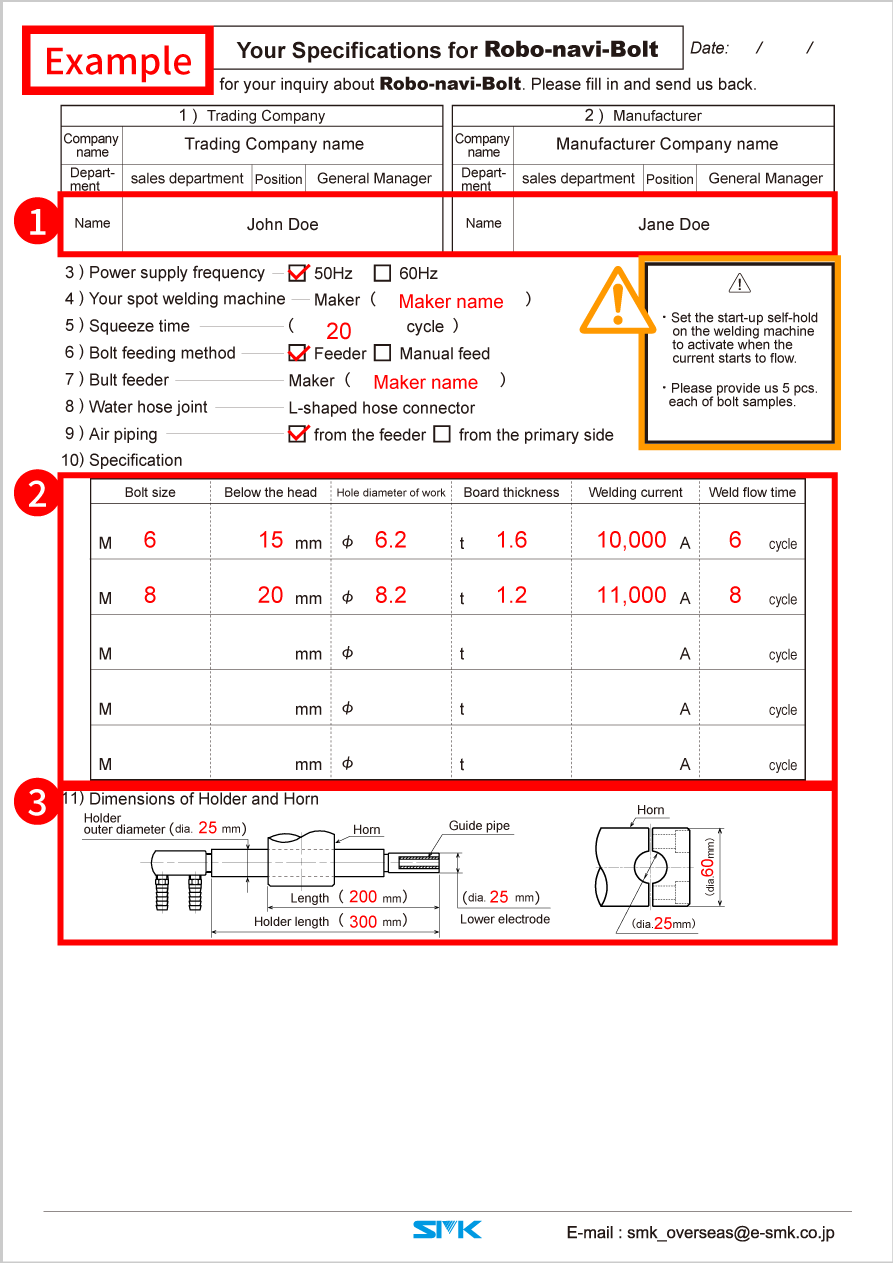

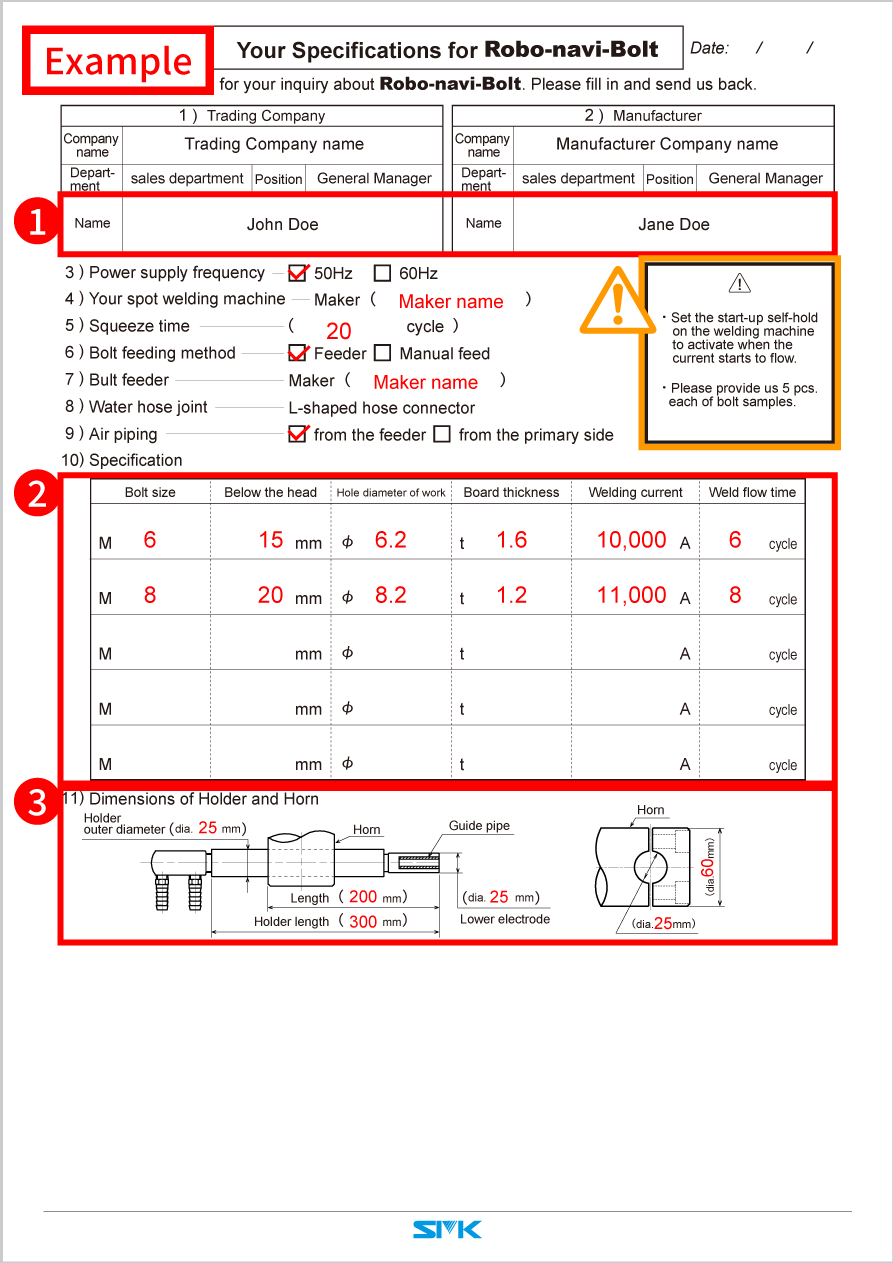

Please fill out the specification document attached to the instruction manual of navi slide unit and send us via fax or e-mail.

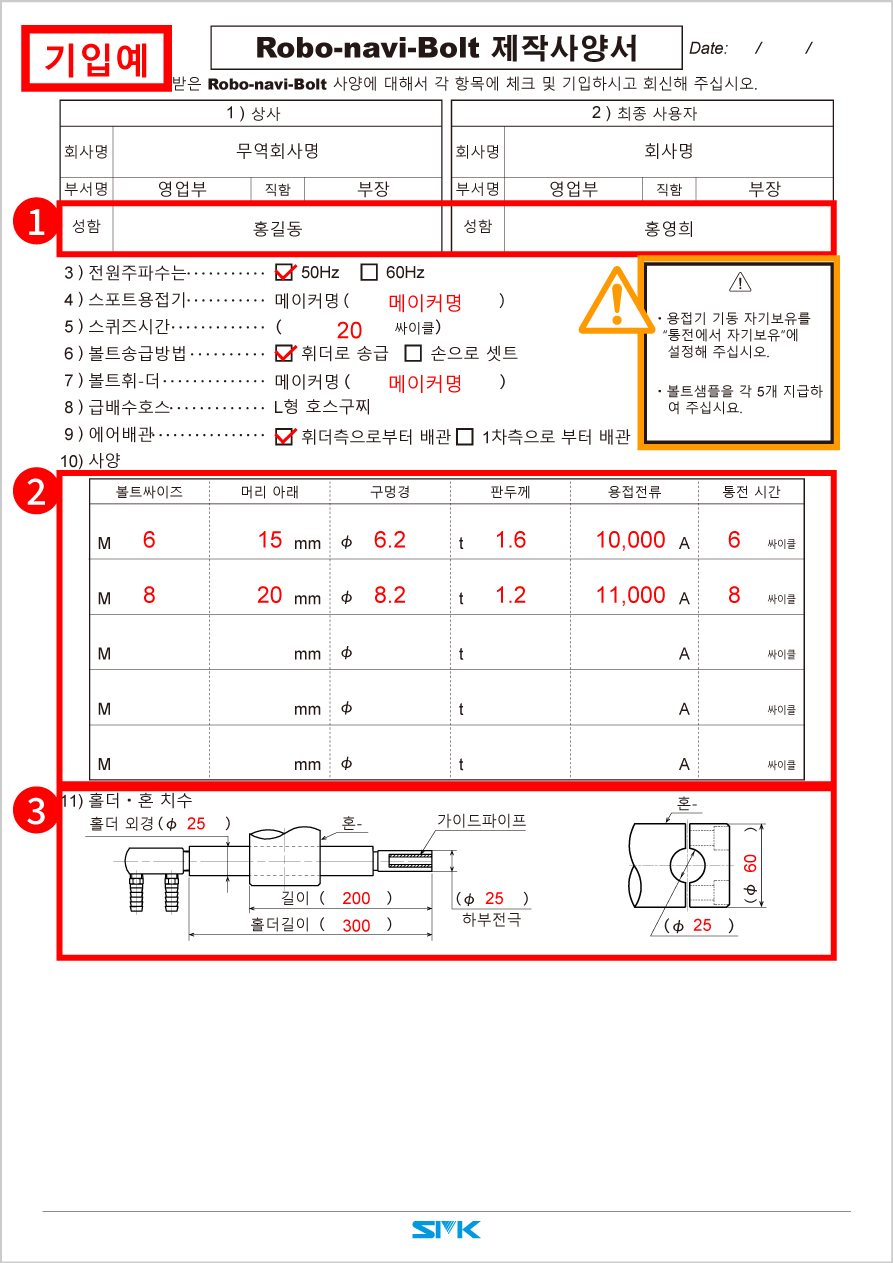

Please refer to the image below for an example.
The specification document can also be downloaded from the link below.
Download
Language
English
Notes
- Set the start-up self-hold on the welding machine to activate when the current starts to flow.
When step on the foot-operated switch for a moment, - Pressurization is released immediately.
→Self-hold works with starting of energization. - Pressurization is not released.
→Self-hold works since the squeeze time. - Please provide us 5 pcs. each of bolt samples. We will manufacture the slide unit to fit sample bolt you supplied to us.
Your name
Write your full name.

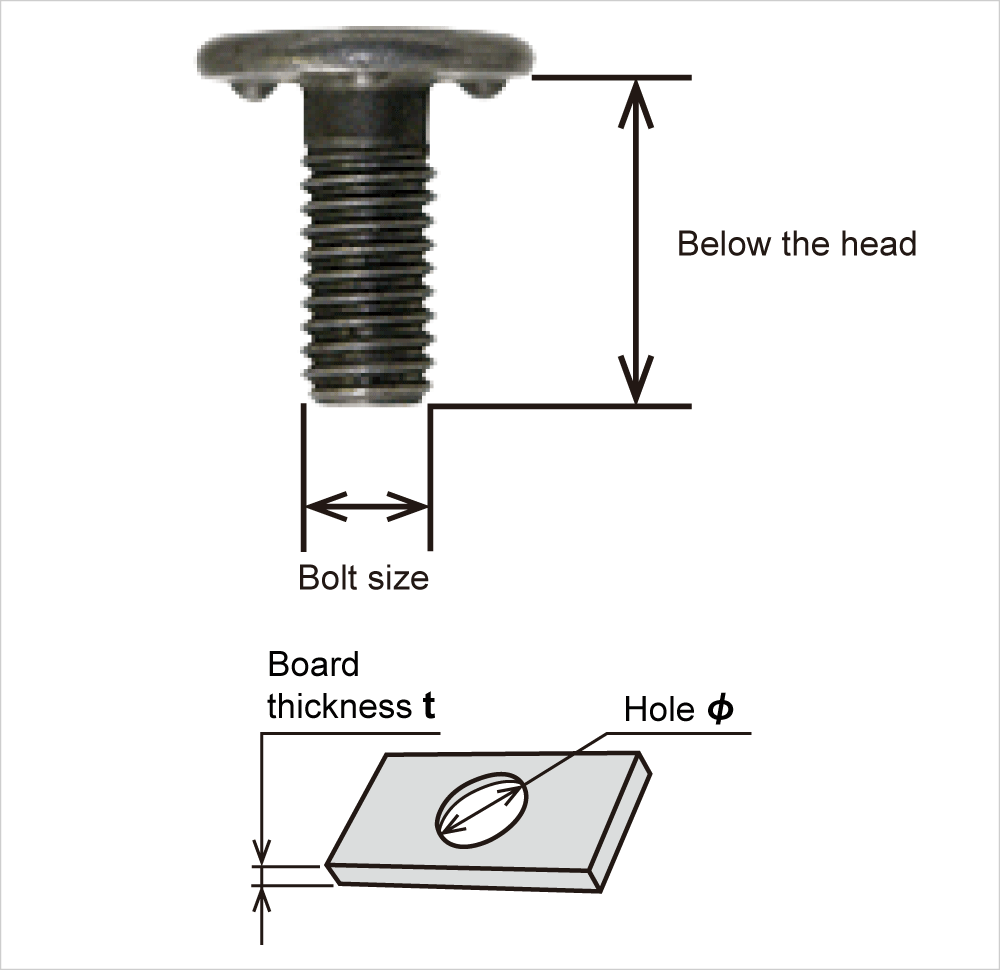

Bolt dimensions

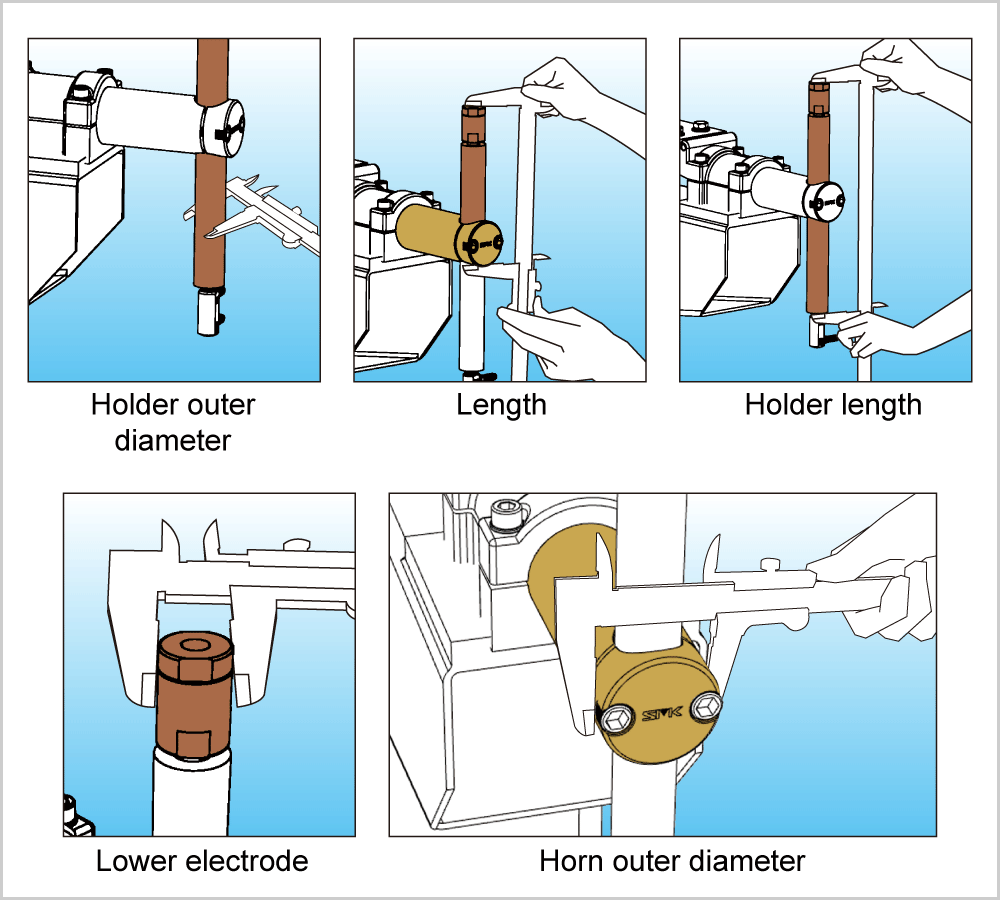

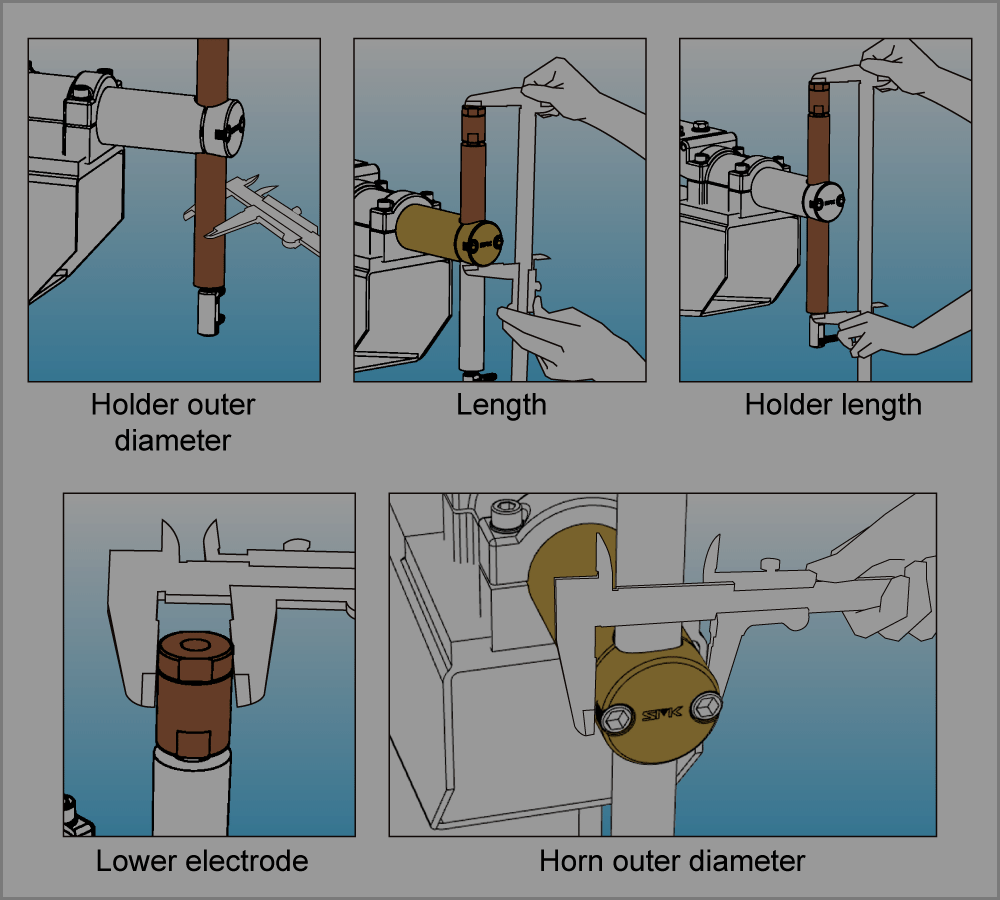

How to measure each dimension
※Click to enlarge
주의사항
- 용접기 기동 자기보유를“통전에서 자기보유”에설정해 주십시오.
발로 밟는 스위치를 한순간만 눌렀을 때 - 바로 가압이 해제된다.
→ 통전에서 자기보유 - 가압이 해제되지 않는다.
→ 초기가압에서 자기보유 - 볼트샘플을 각 5개 지급하 여 주십시요.지급받은 볼트에 맞게 제작하겠습니다.
성함
이름은 풀네임으로 기입해 주십시오.

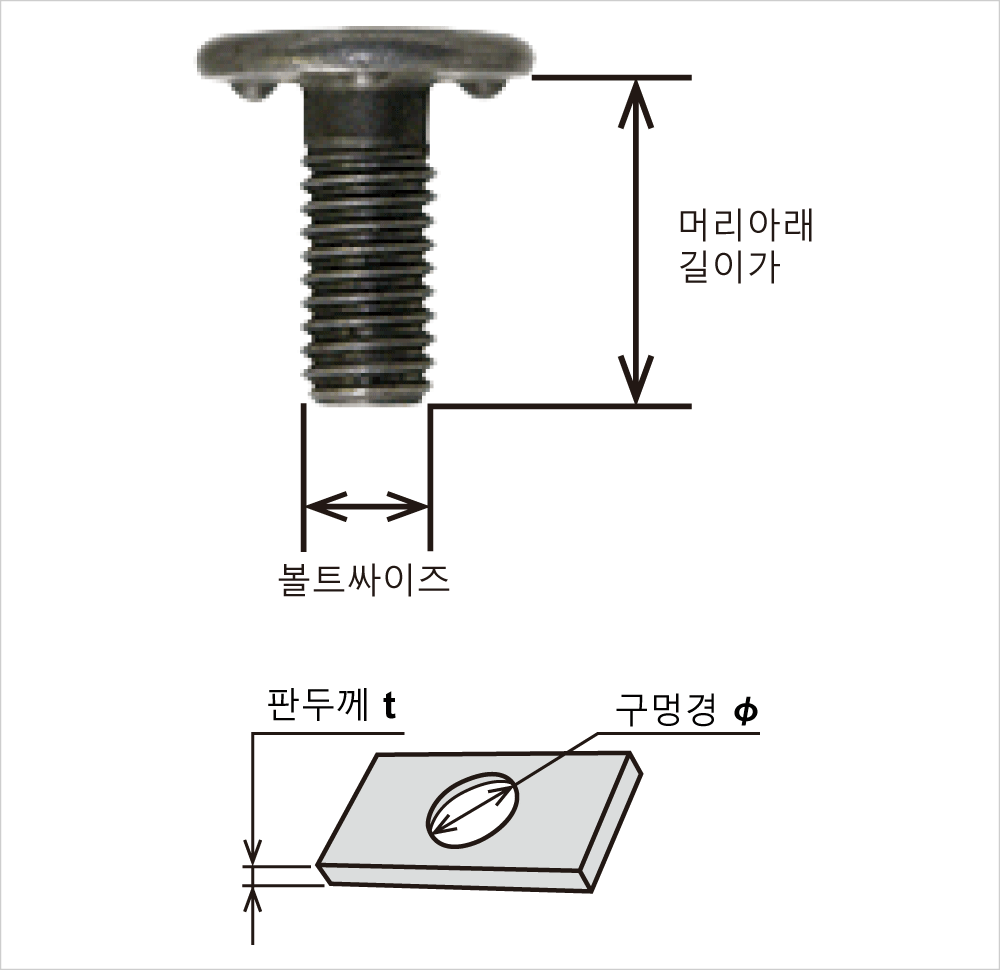

볼트 치수

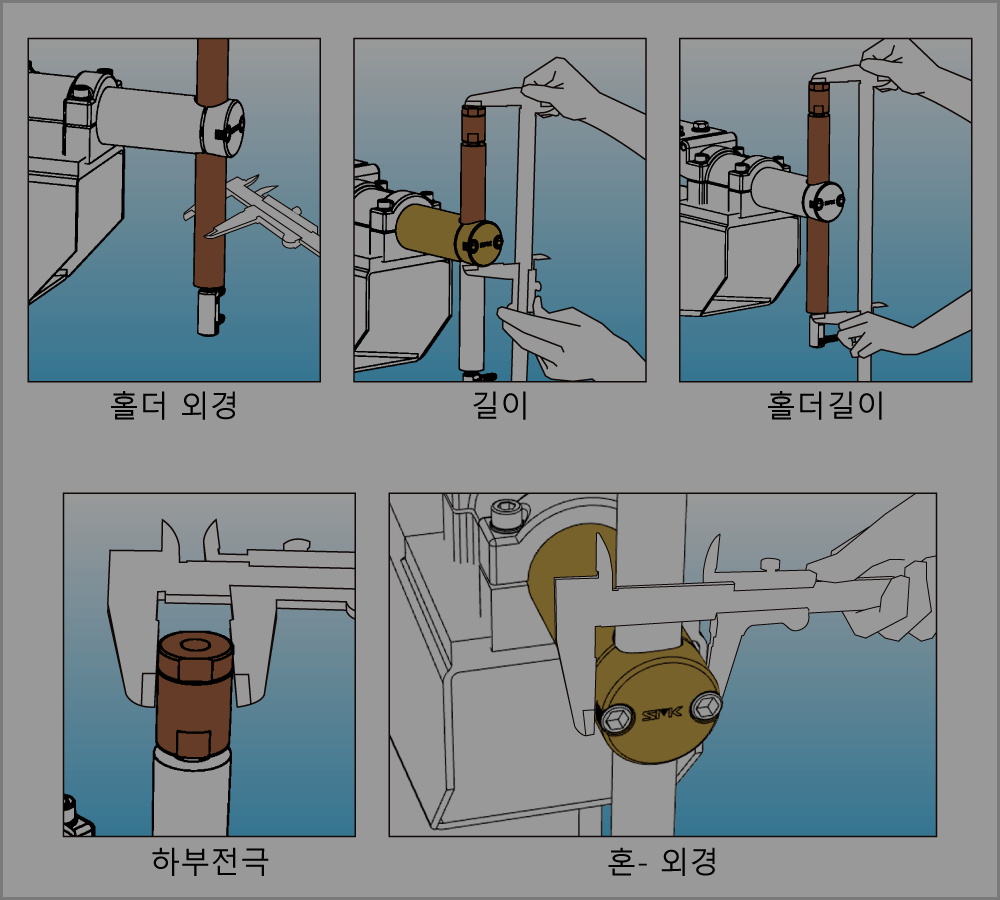

각 치수를 측정하는 방법
※확대하려면 클릭하세요.
