Example of specification document for Robo-navi-Upper

The specification document can also be downloaded from the link below.

Please send us via e-mail.
E-mail: smk_overseas@e-smk.co.jp

Download

Language

English

Notes

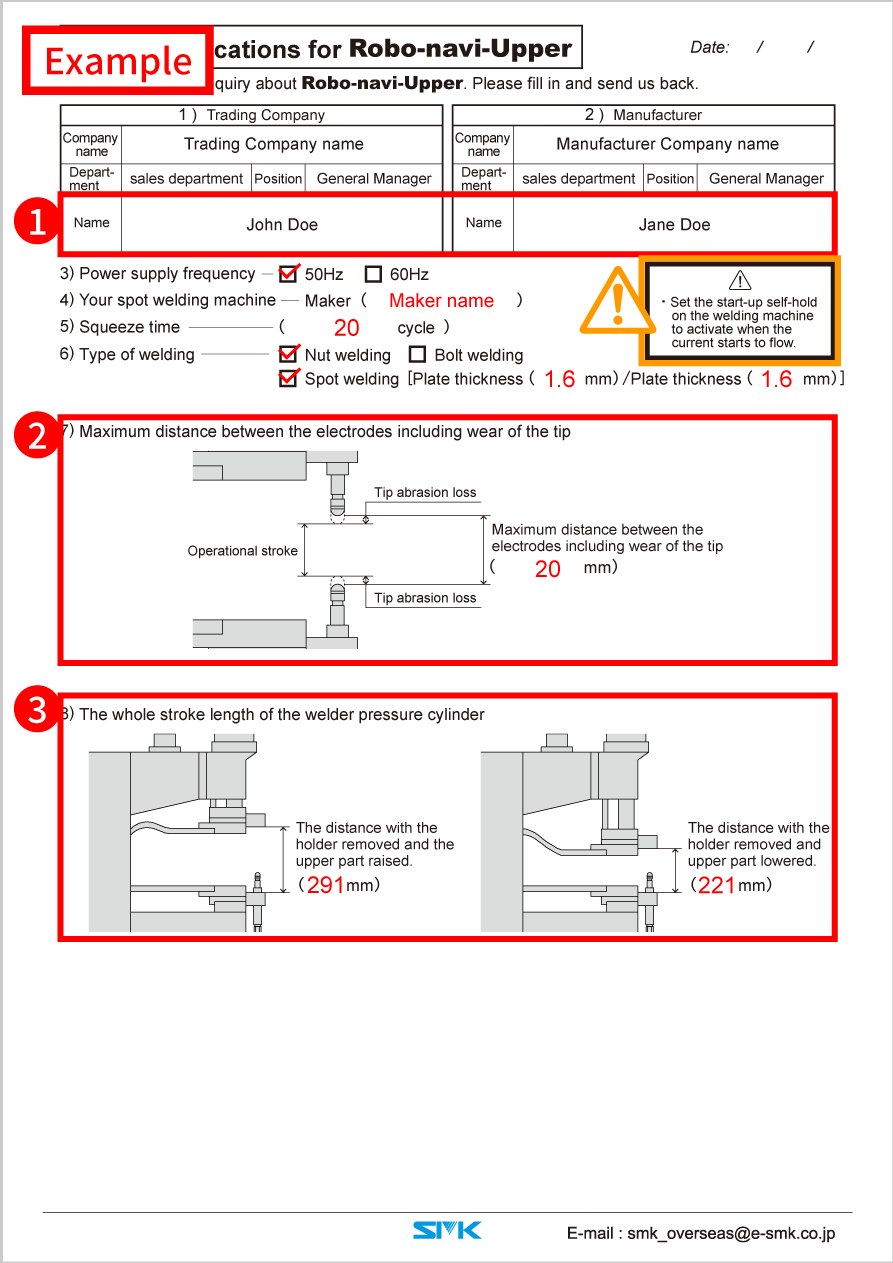

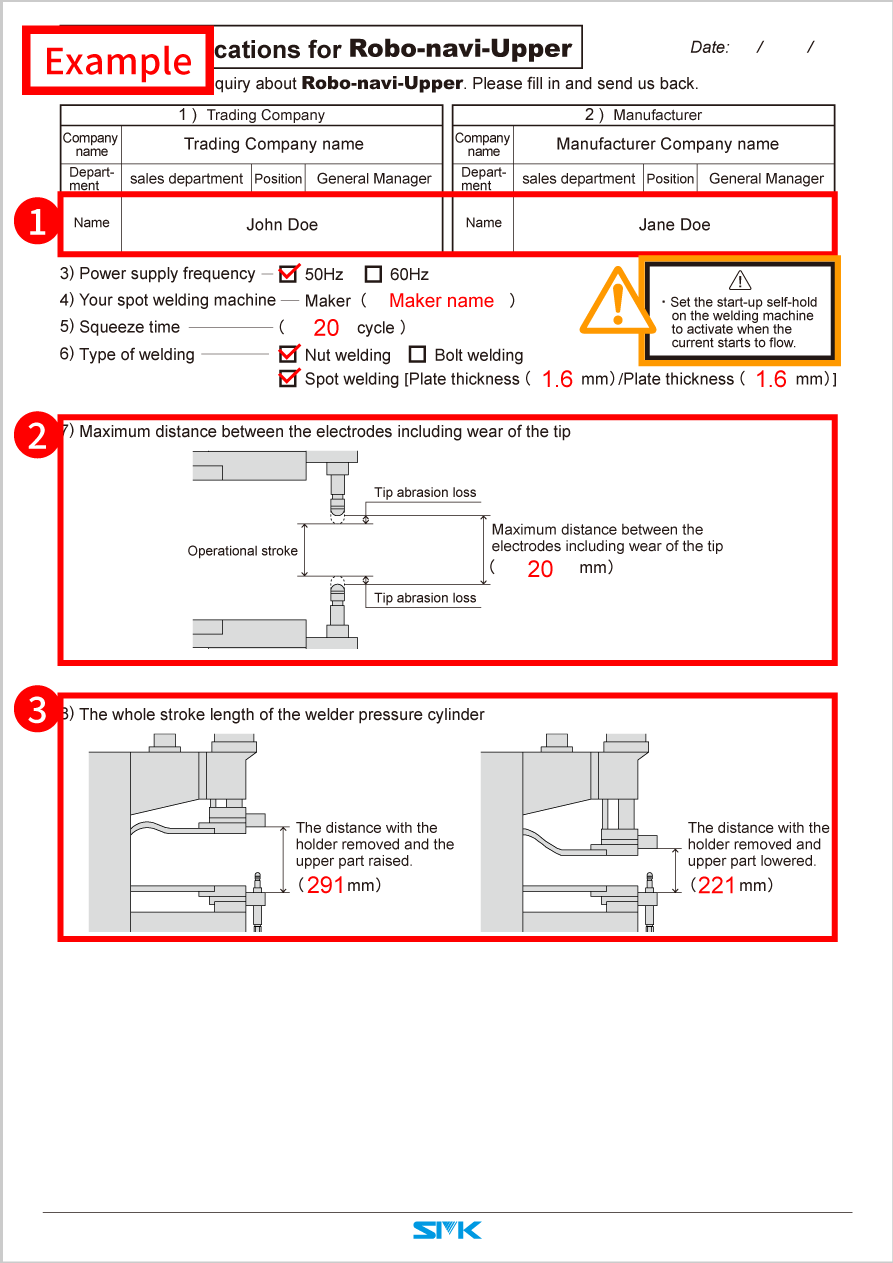

  • Set the start-up self-hold on the welding machine to activate when the current starts to flow.
    When step on the foot-operated switch for a moment,
    • Pressurization is released immediately.
        →Self-hold works with starting of energization.
    • Pressurization is not released.
        →Self-hold works since the squeeze time.




Your name

Write your full name.

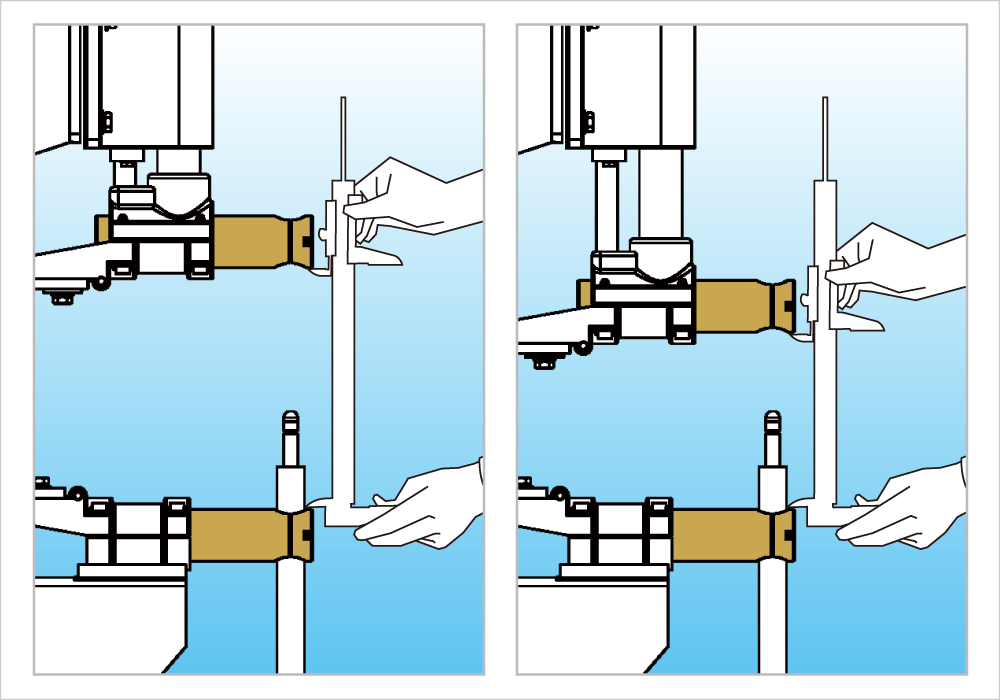

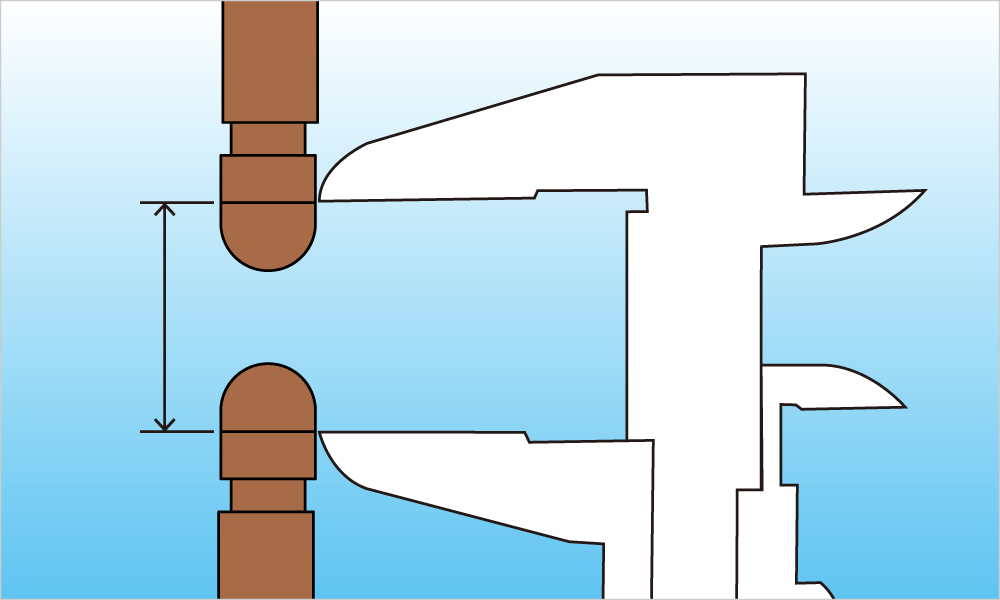

Maximum distance between the electrodes including wear of the tip

Measure between the dress line of the upper tip and the lower tip.



The whole stroke length of the welder pressure cylinder


※Click to enlarge



Korean

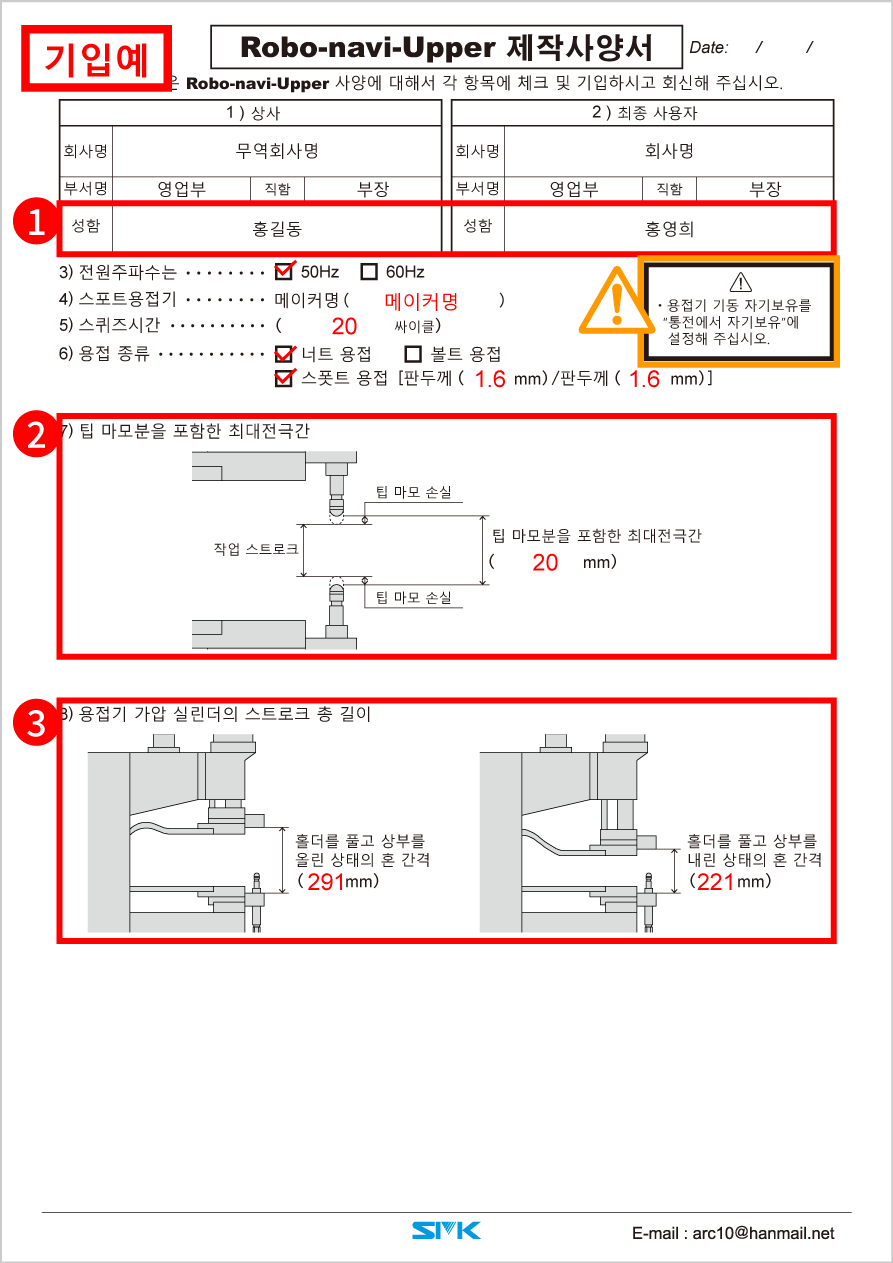

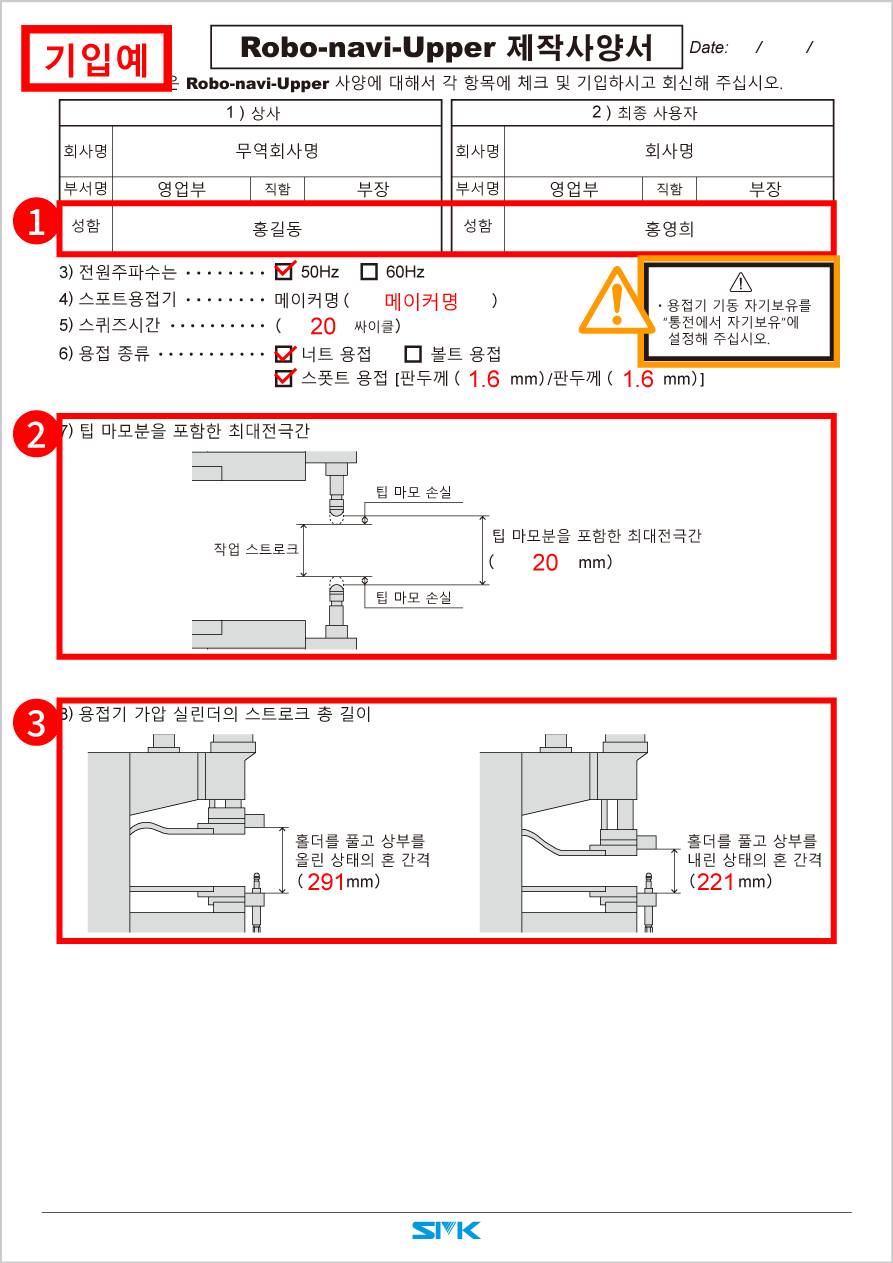

주의사항

  • 용접기 기동 자기보유를“통전에서 자기보유”에설정해 주십시오.
    발로 밟는 스위치를 한순간만 눌렀을 때
    • 바로 가압이 해제된다.
       → 통전에서 자기보유
    • 가압이 해제되지 않는다.
       → 초기가압에서 자기보유



성함

이름은 풀네임으로 기입해 주십시오.


팁 마모분을 포함한 최대전극간


상부팁・하부팁의 드레스라 인 간격을 계측해 주십시오.


용접기 가압 실린더의 스트로크 총 길이


※확대하려면 클릭하세요.
