The specification document can also be downloaded from the link below.
Please send us via e-mail.
E-mail: smk_overseas@e-smk.co.jp
Download
Language
English

Notes
- Set the start-up self-hold on the welding machine to activate when the current starts to flow.
When step on the foot-operated switch for a moment, - Pressurization is released immediately.
→Self-hold works with starting of energization. - Pressurization is not released.
→Self-hold works since the squeeze time. - Please provide us 5 pcs. each of nut samples. We will manufacture the slide unit to fit sample nut you supplied to us.
Your name
Write your full name.

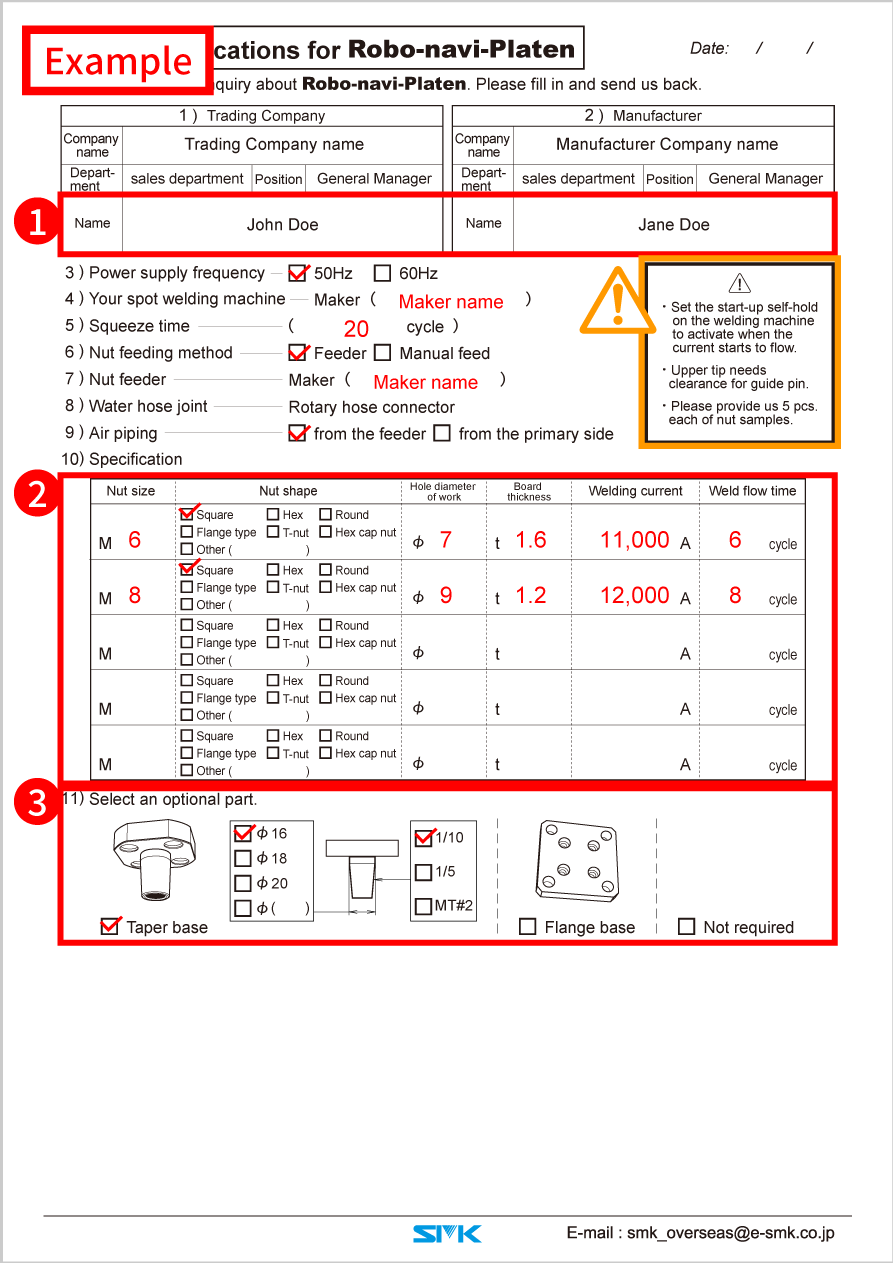

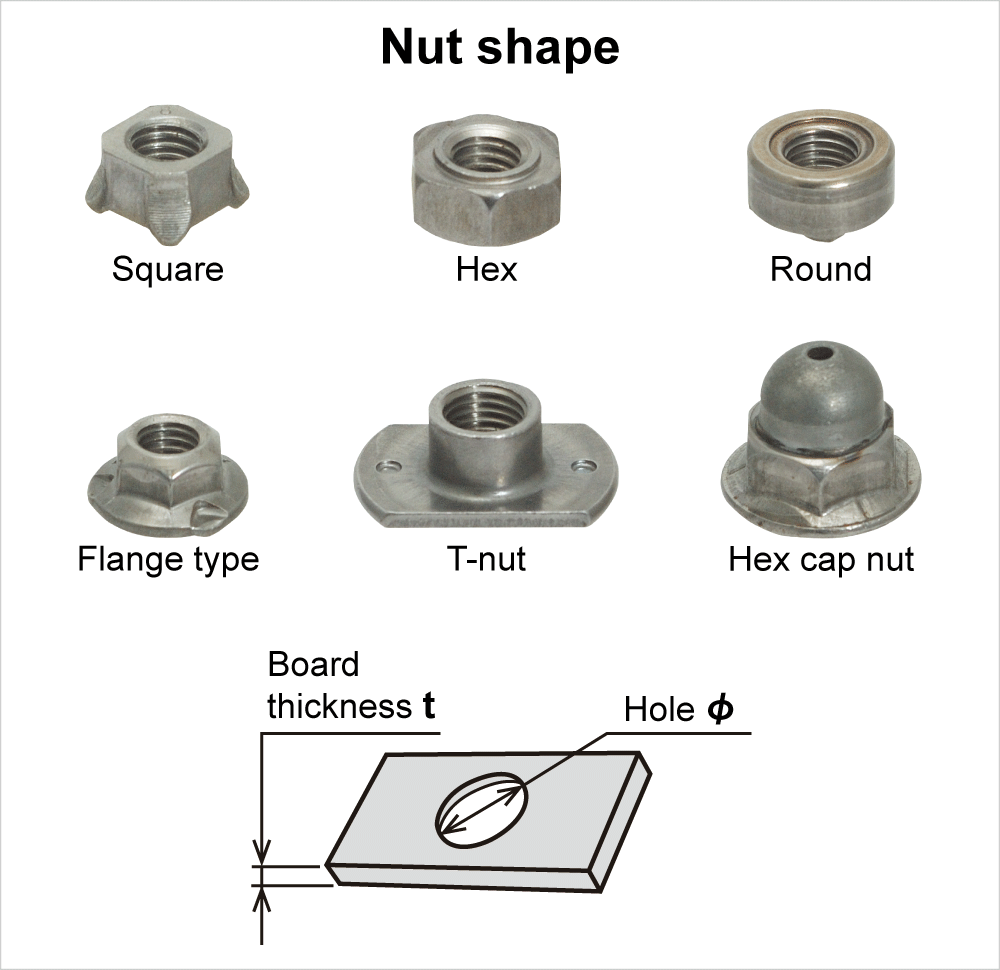

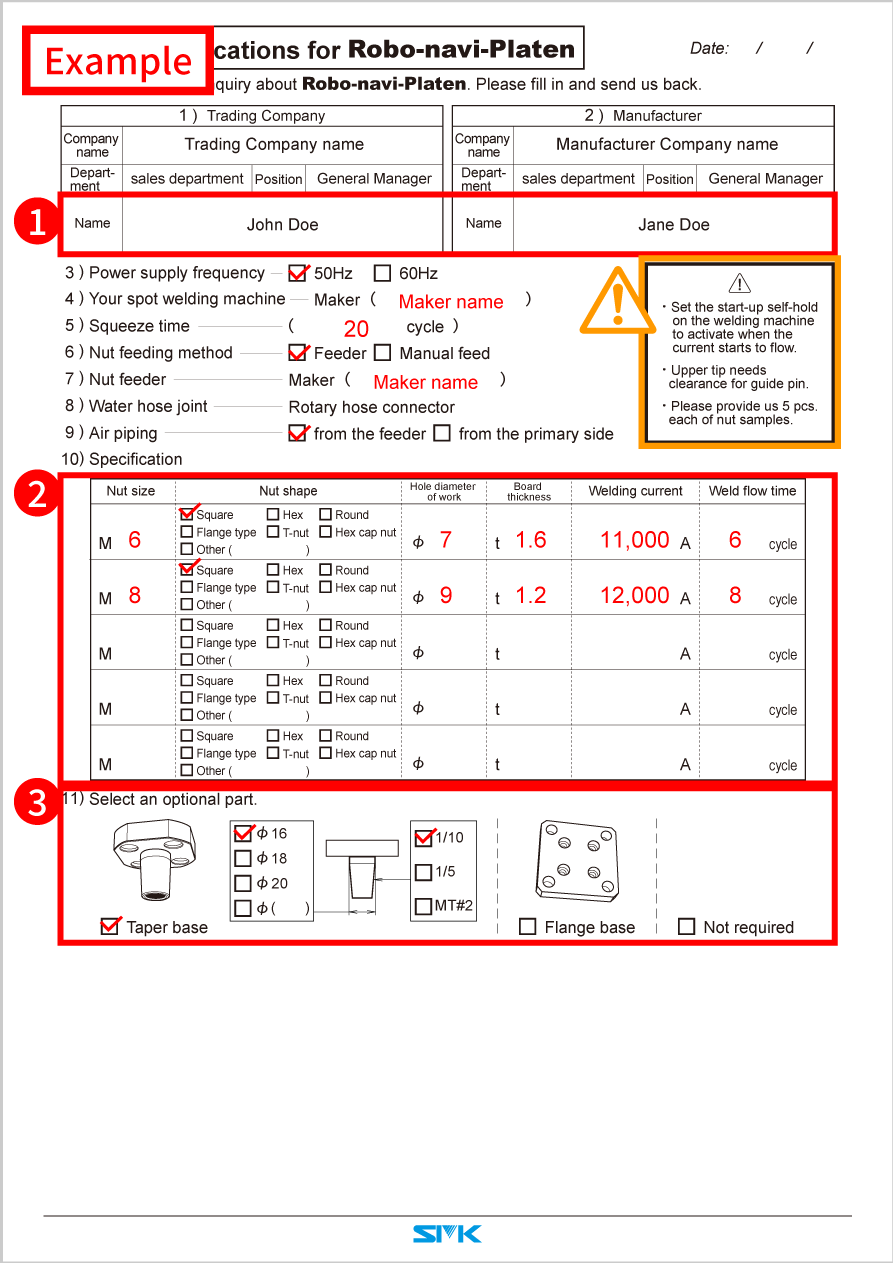

Specification
* If you do not have enough space to fill out the form, please send us multiple copies of the production specifications.

Select an optional part.
If you select a taper base, fill in the outer diameter of taper and also select an angle of taper.

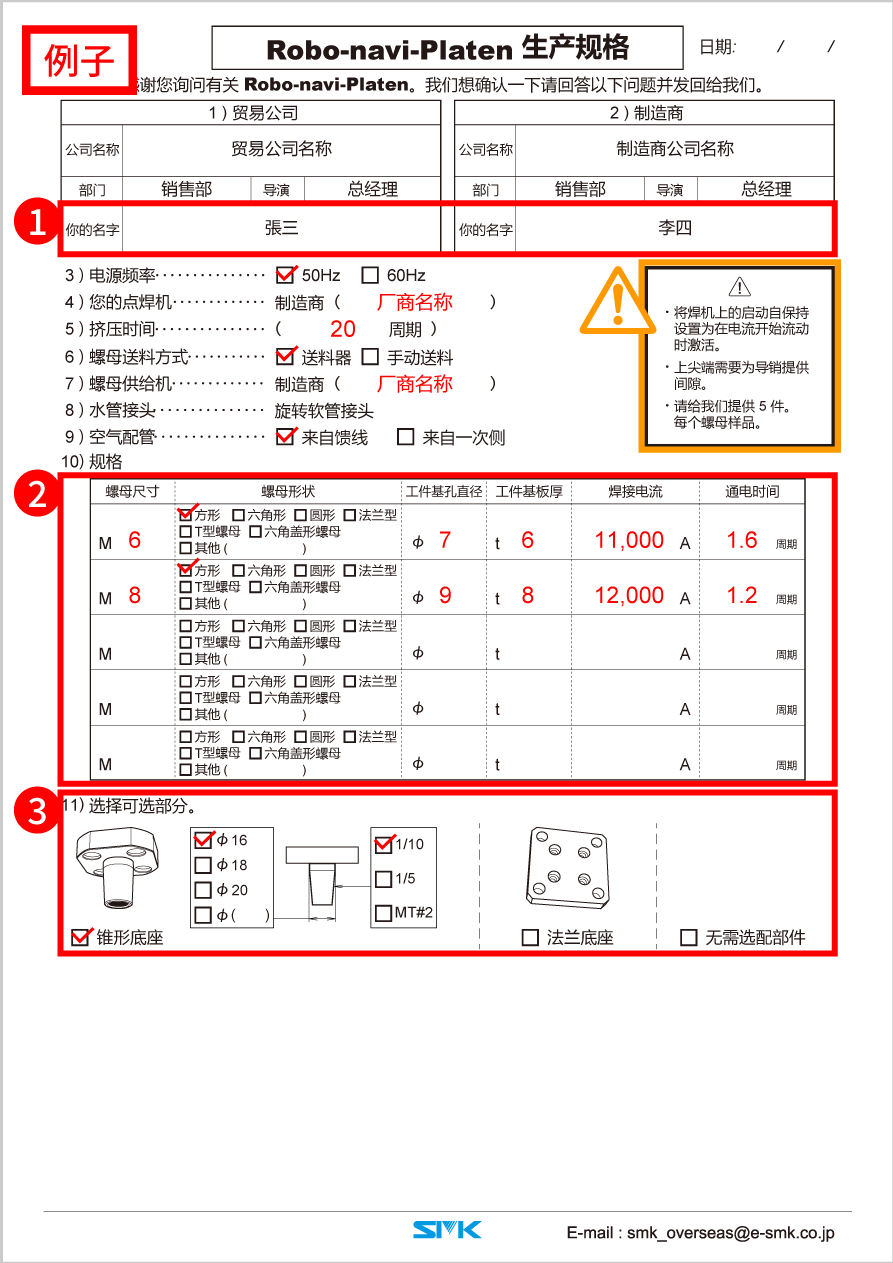

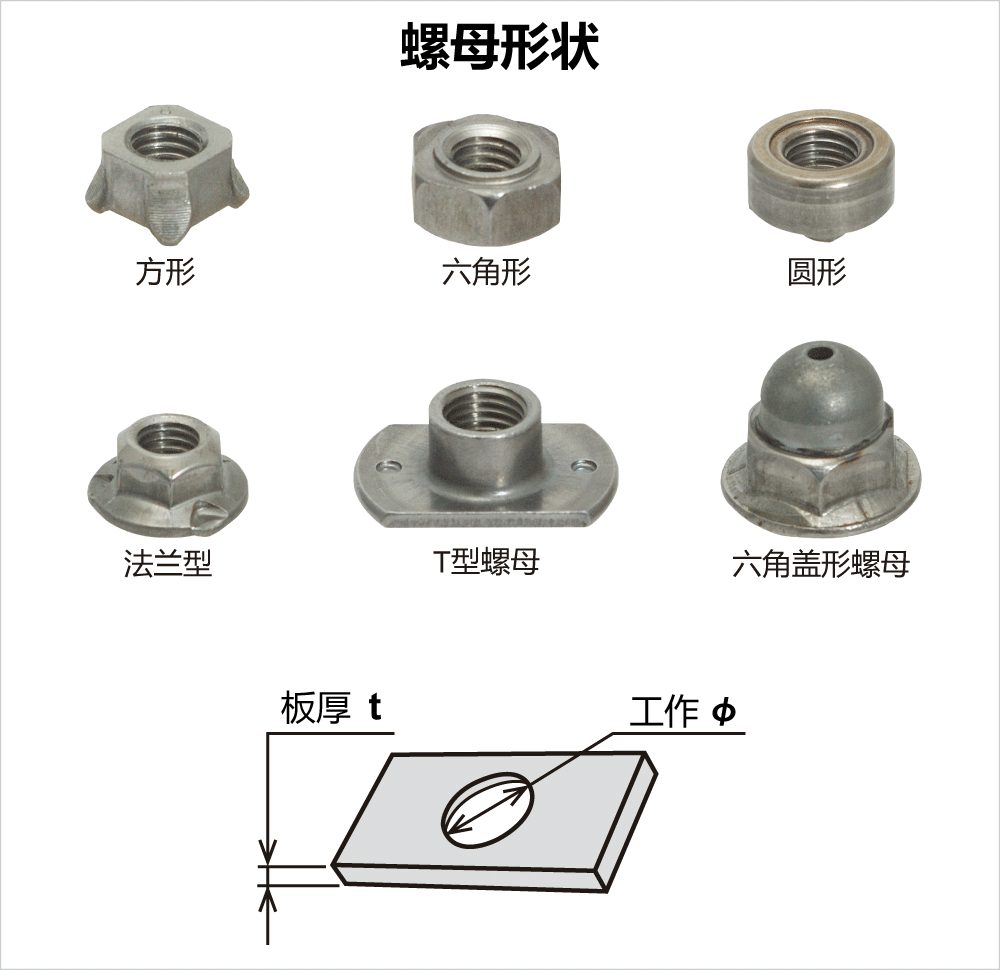

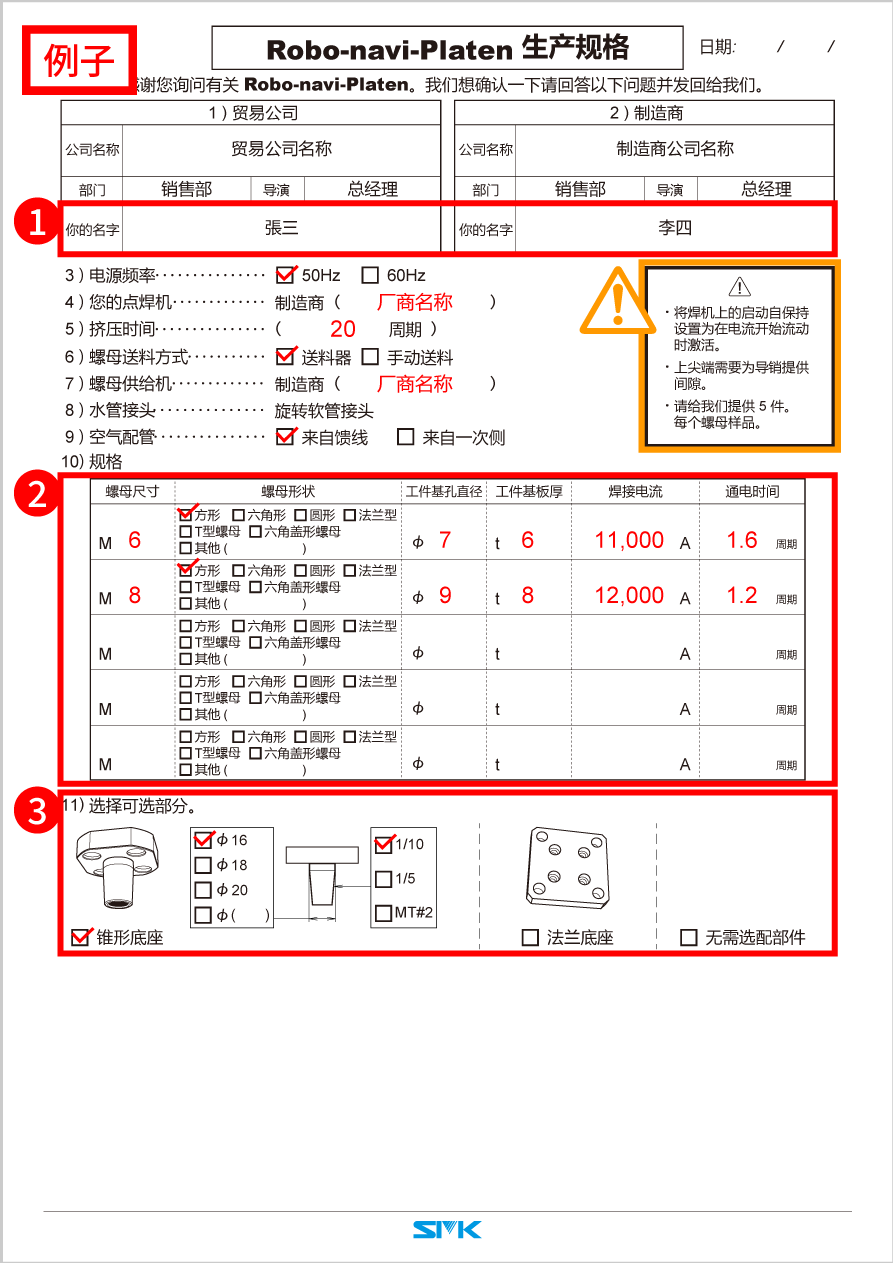

Chinese

笔记
- 将焊机上的启动自保持设置为在电流开始流动时激活。
当踩下脚踏开关片刻时, - 压力立即释放。
→自保持随着通电的开始而起作用。 - 加压未释放。
→自保持在挤压时间开始起作用。 - 我们将制造适合您提供给我们的样品螺母的滑动装置。
你的名字
写下你的全名。
规格
*如果没有足够的空间,请发送多份制作说明书。

选择可选部分
如果选择锥度底座,请填写锥度的外径并选择锥度角度。

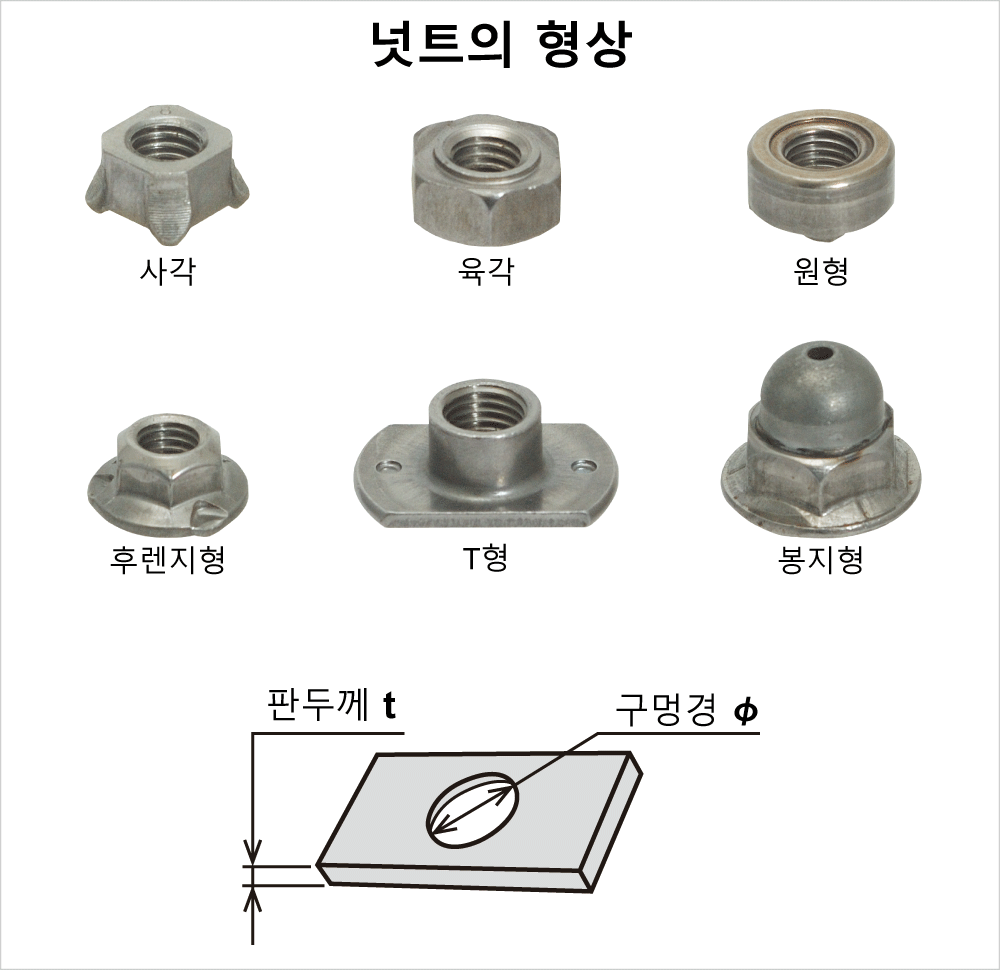

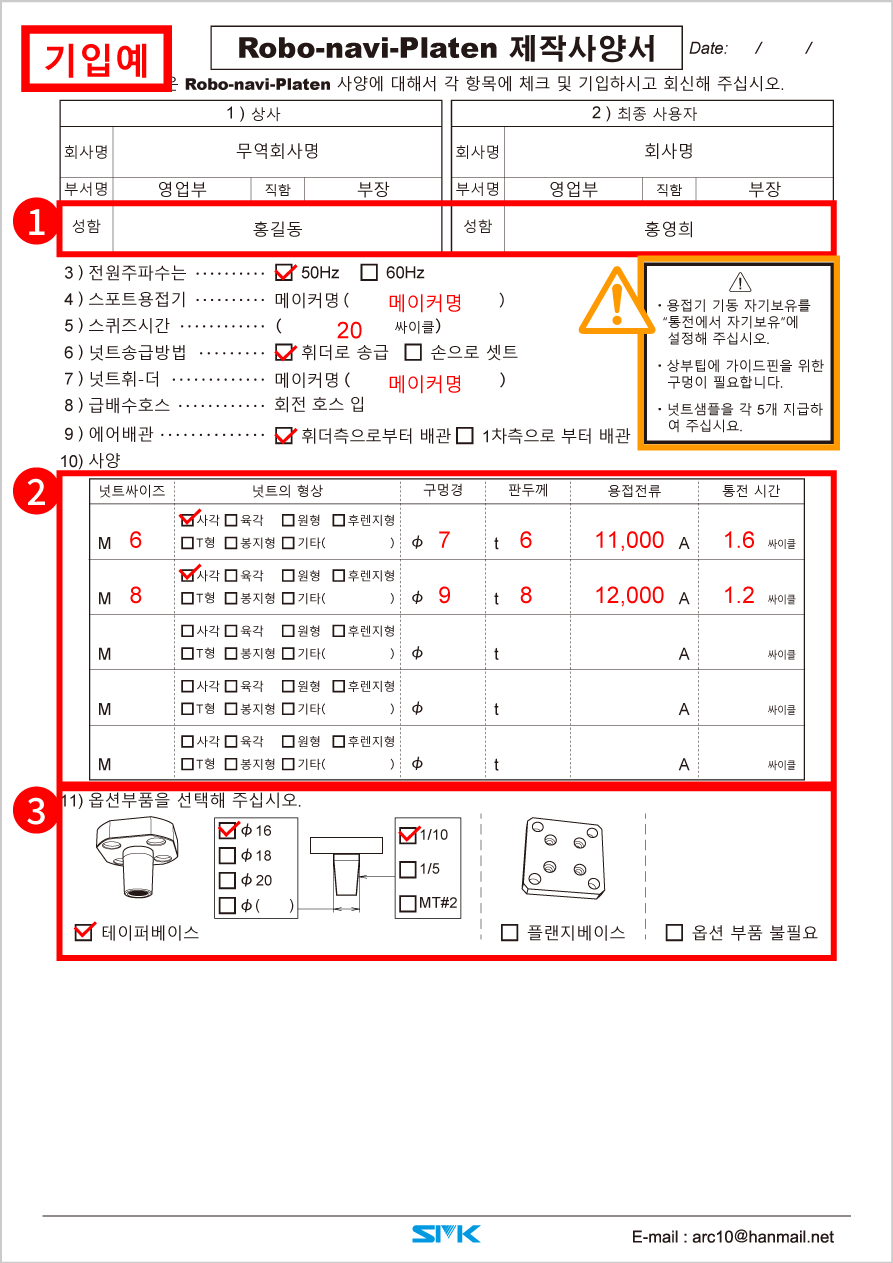

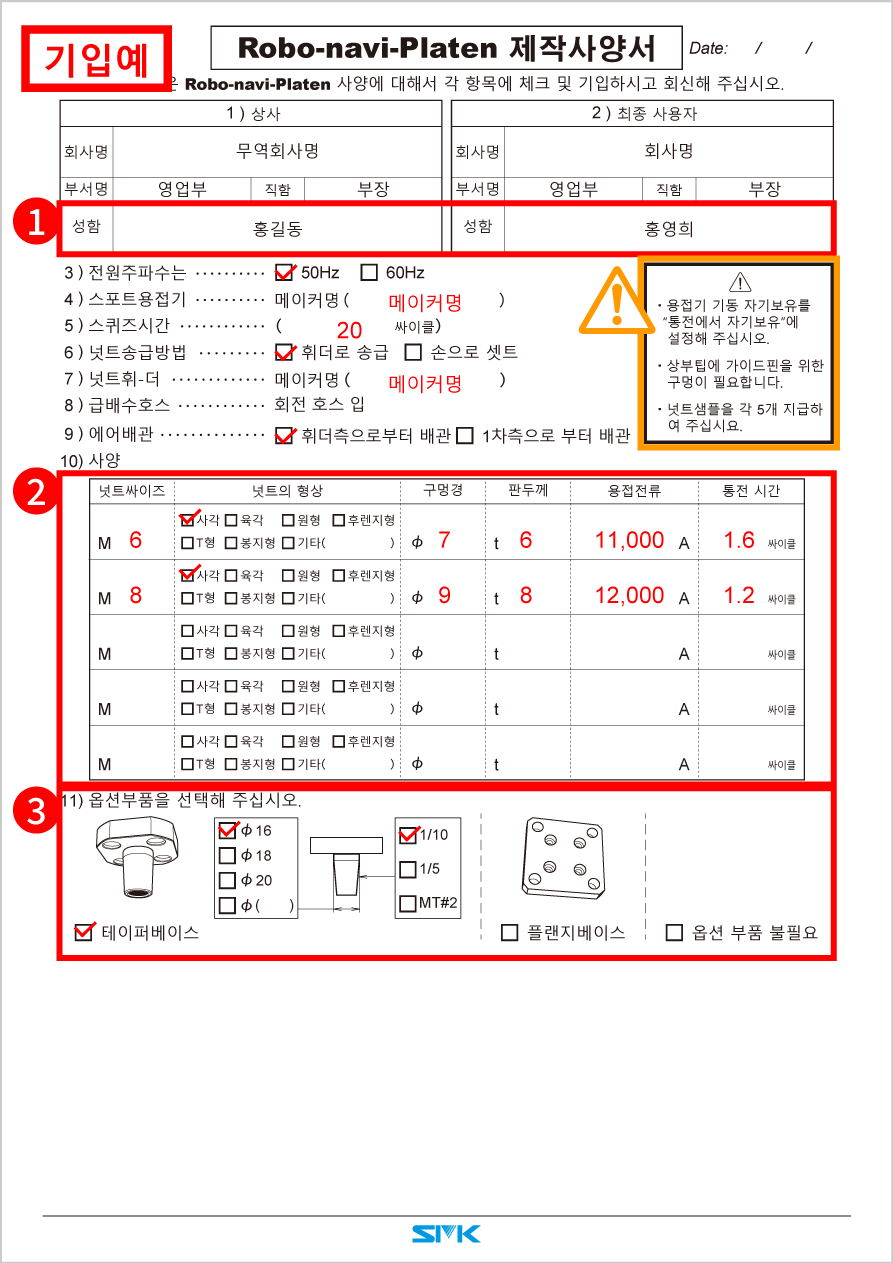

Korean

주의사항
- 용접기 기동 자기보유를“통전에서 자기보유”에설정해 주십시오.
발로 밟는 스위치를 한순간만 눌렀을 때 - 바로 가압이 해제된다.
→ 통전에서 자기보유 - 가압이 해제되지 않는다.
→ 초기가압에서 자기보유 - 넛트샘플을 각 5개 지급 하여 주십시요.지급받은 너트에 맞게 제작하겠습니다.
성함
이름은 풀네임으로 기입해 주십시오.
사양
*기입란이 부족한 경우, 제작 사양서를 여러 장 보내주시기 바랍니다.

옵션부품을 선택해 주십시오.
테이퍼베이스를 선택한 경우는 테이퍼부의 외경을 기입하시고 테이퍼 각도를 선택해 주십시오.
