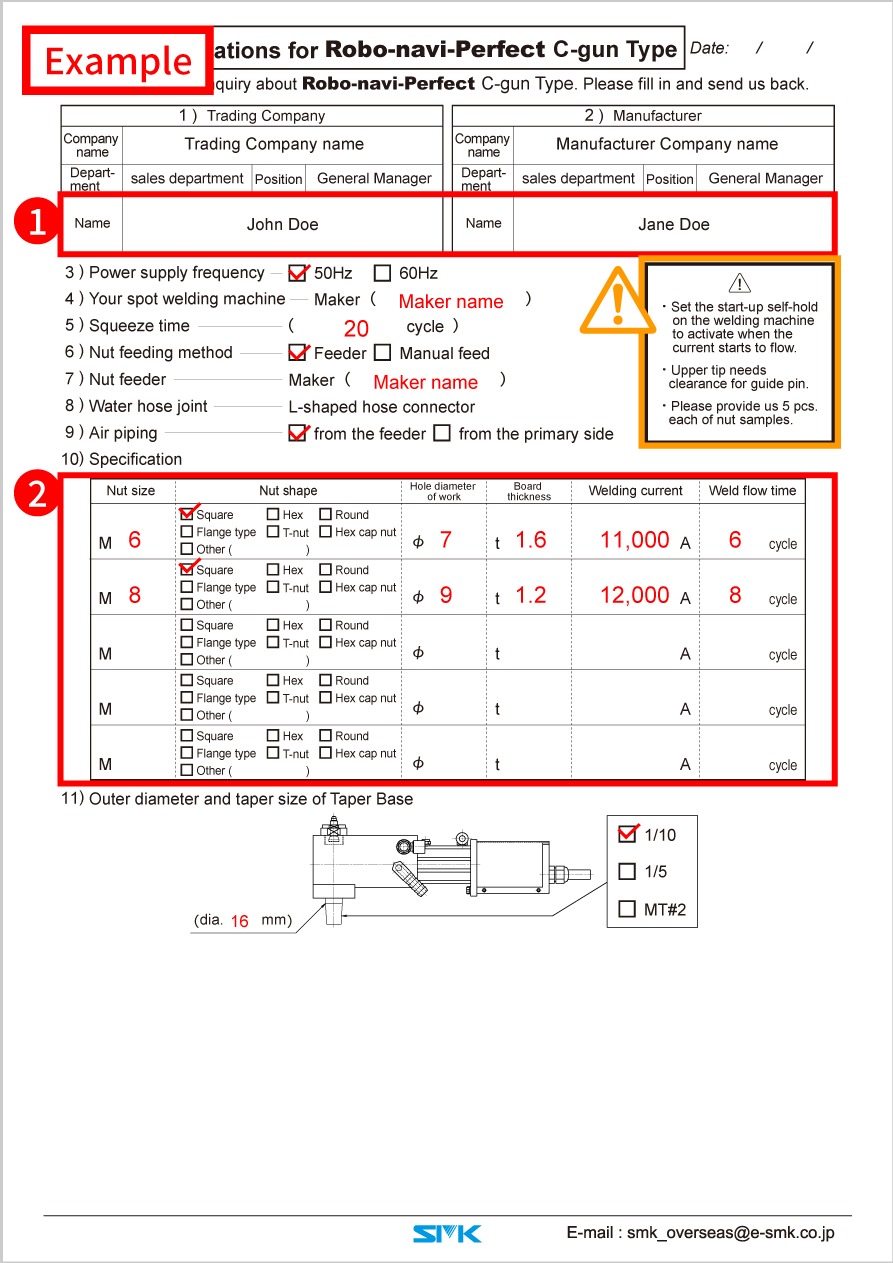

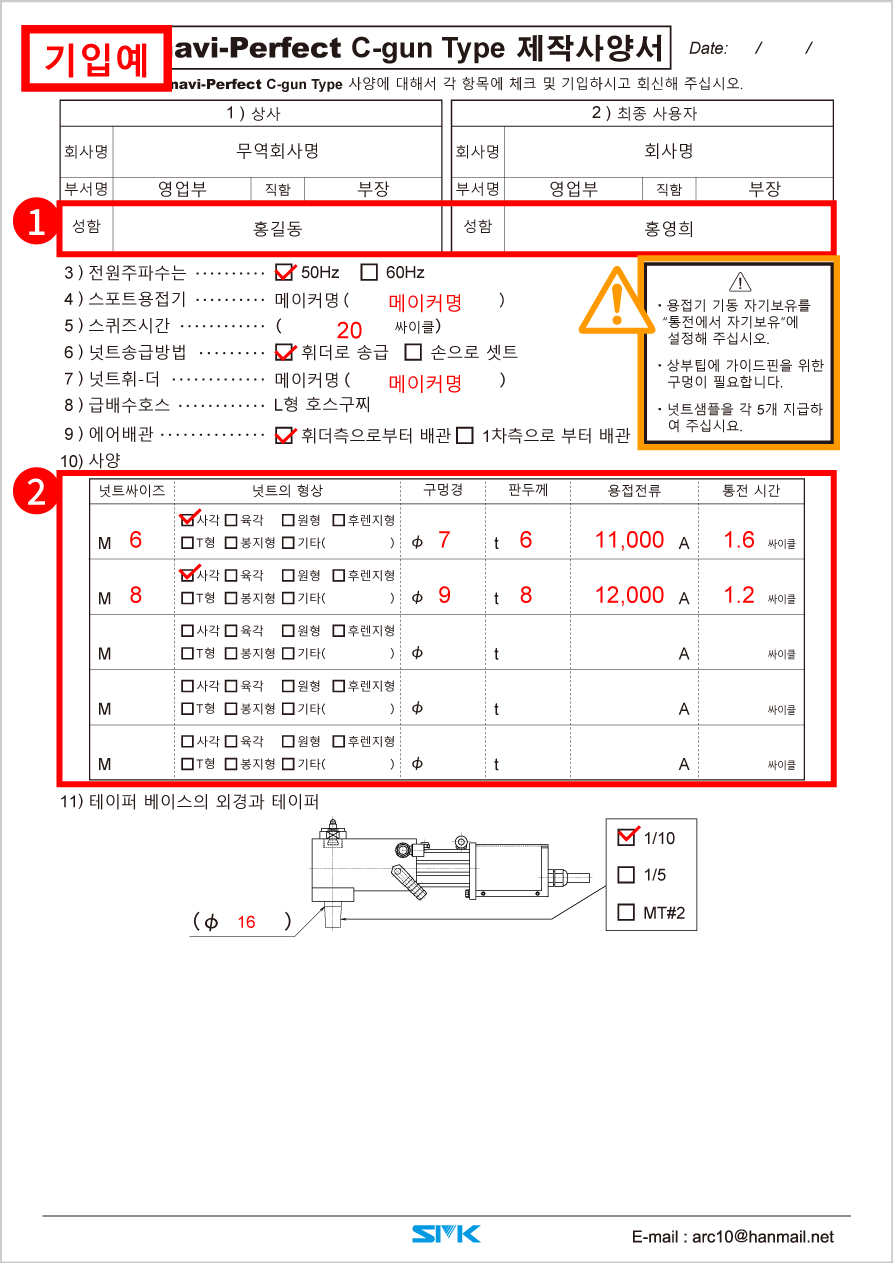

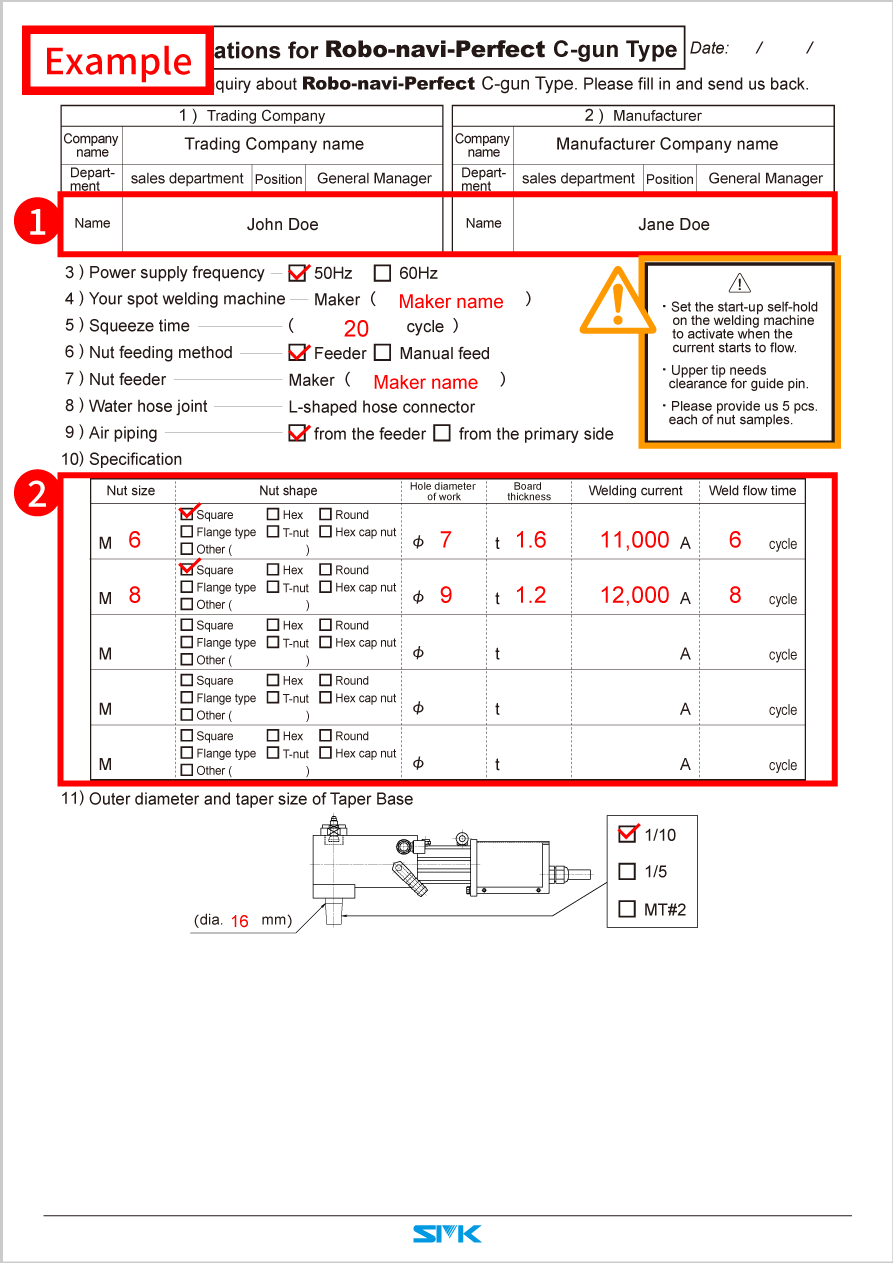

Example of specification document for Robo-navi-Perfect C-gun Type

The specification document can also be downloaded from the link below.

Please send us via e-mail.
E-mail: smk_overseas@e-smk.co.jp

Download

Language

English

Maximum welding force

Maximum welding force must be below 5.0kN.


Notes

  • Set the start-up self-hold on the welding machine to activate when the current starts to flow.
    When step on the foot-operated switch for a moment,
    • Pressurization is released immediately.
        →Self-hold works with starting of energization.
    • Pressurization is not released.
        →Self-hold works since the squeeze time.
  • Please provide us 5 pcs. each of nut samples.
    We will manufacture the slide unit to fit sample nut you supplied to us.



Your name

Write your full name.

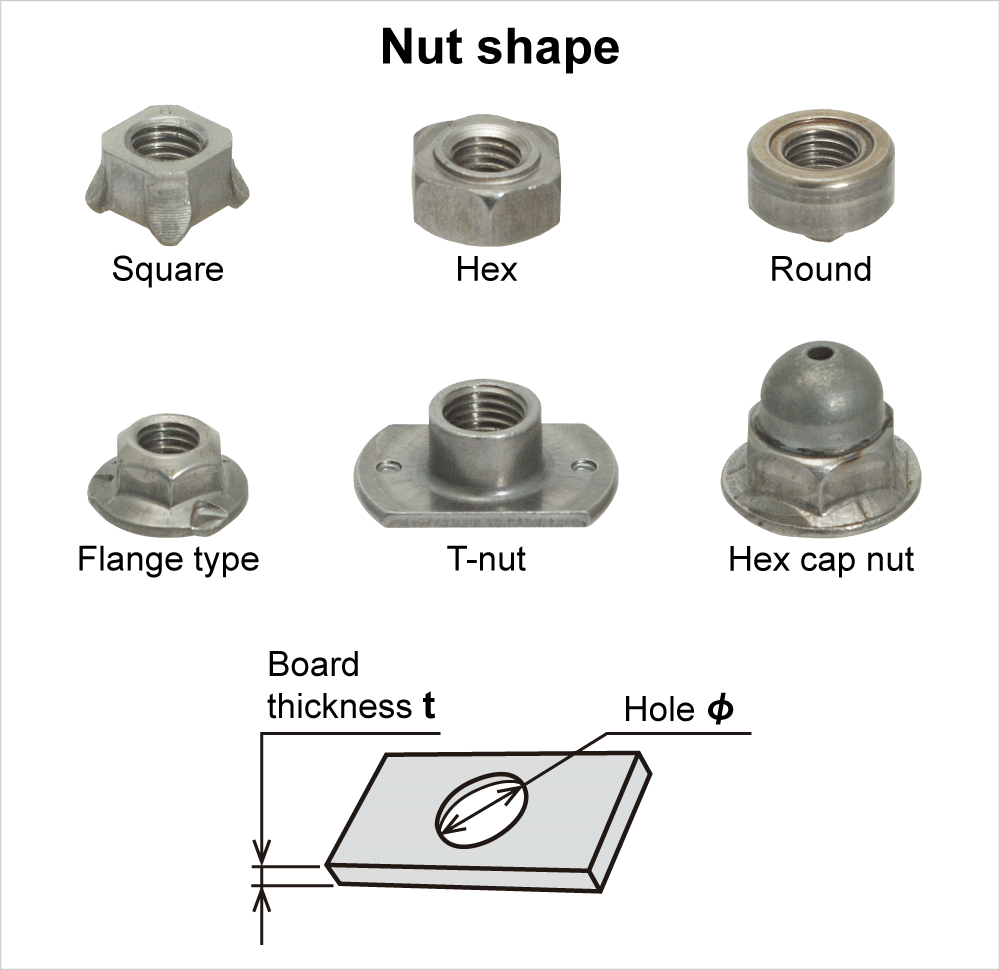

Nut shape




Korean

주의사항

  • 용접기 기동 자기보유를“통전에서 자기보유”에설정해 주십시오.
    발로 밟는 스위치를 한순간만 눌렀을 때
    • 바로 가압이 해제된다.
       → 통전에서 자기보유
    • 가압이 해제되지 않는다.
       → 초기가압에서 자기보유
  • 넛트샘플을 각 5개 지급하 여 주십시요.지급받은 너트에 맞게 제작하겠습니다.



성함

이름은 풀네임으로 기입해 주십시오.

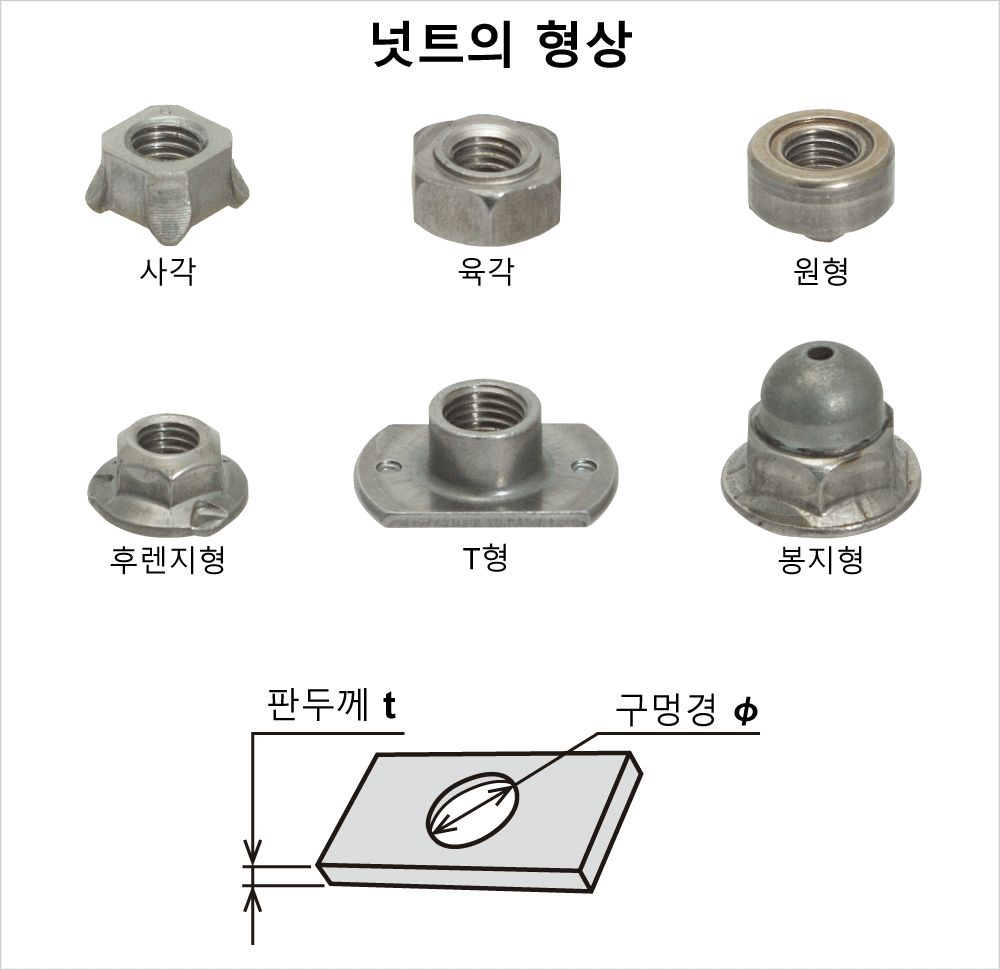

넛트의 형상
