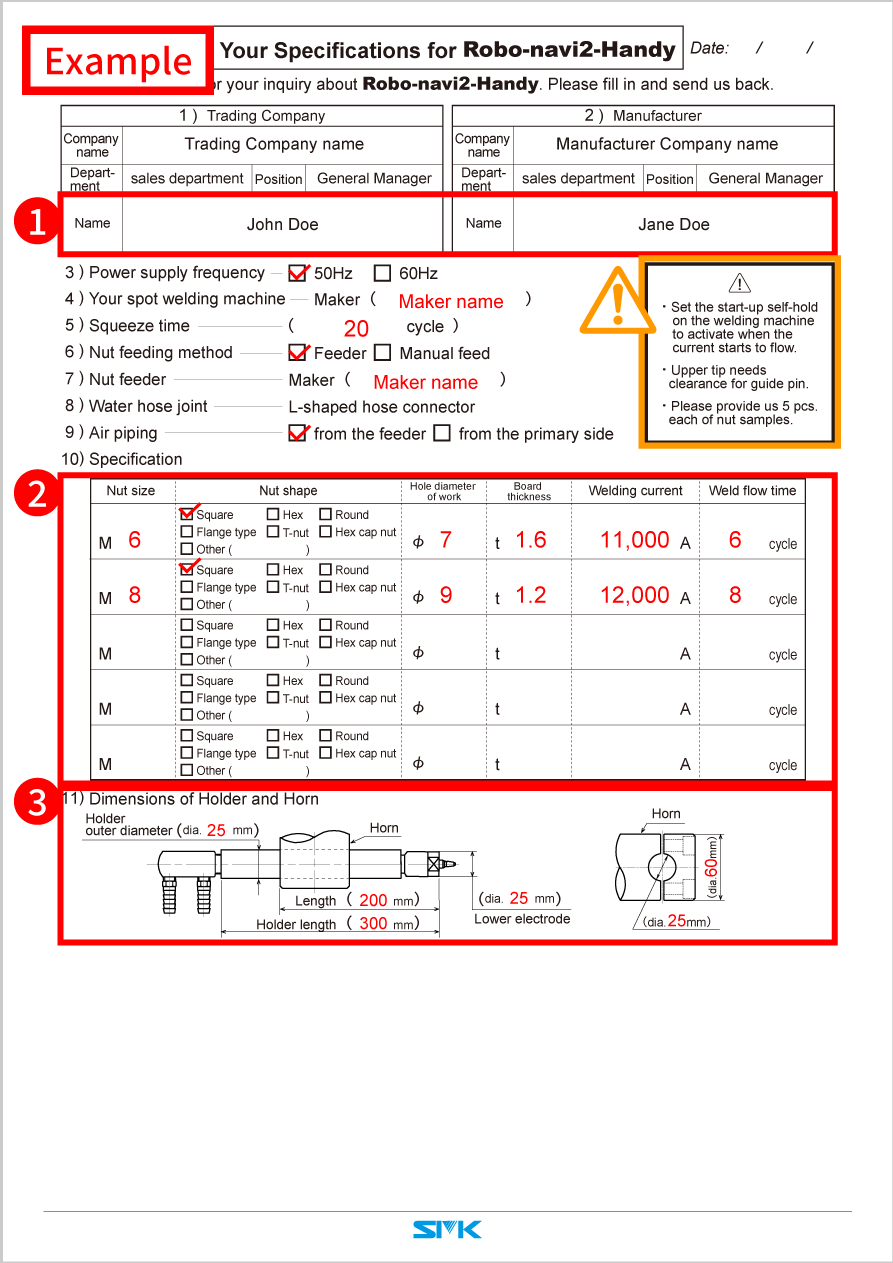

Example of specification document for Robo-navi-Handy

The specification document can also be downloaded from the link below.

Please send us via e-mail.
E-mail: smk_overseas@e-smk.co.jp

Download

Language

English

Notes

  • Set the start-up self-hold on the welding machine to activate when the current starts to flow.
    When step on the foot-operated switch for a moment,
    • Pressurization is released immediately.
        →Self-hold works with starting of energization.
    • Pressurization is not released.
        →Self-hold works since the squeeze time.

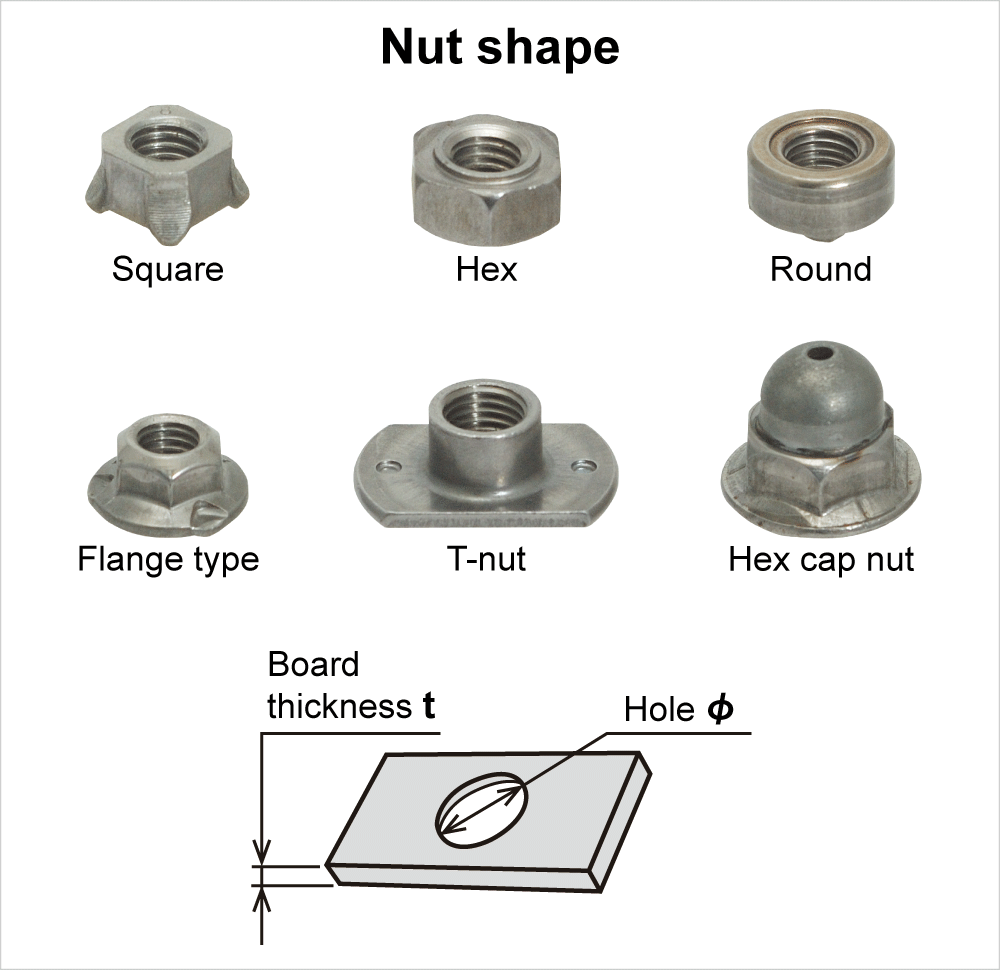

  • Please provide us 5 pcs. each of nut samples.
    We will manufacture the slide unit to fit sample nut you supplied to us.



Your name

Write your full name.

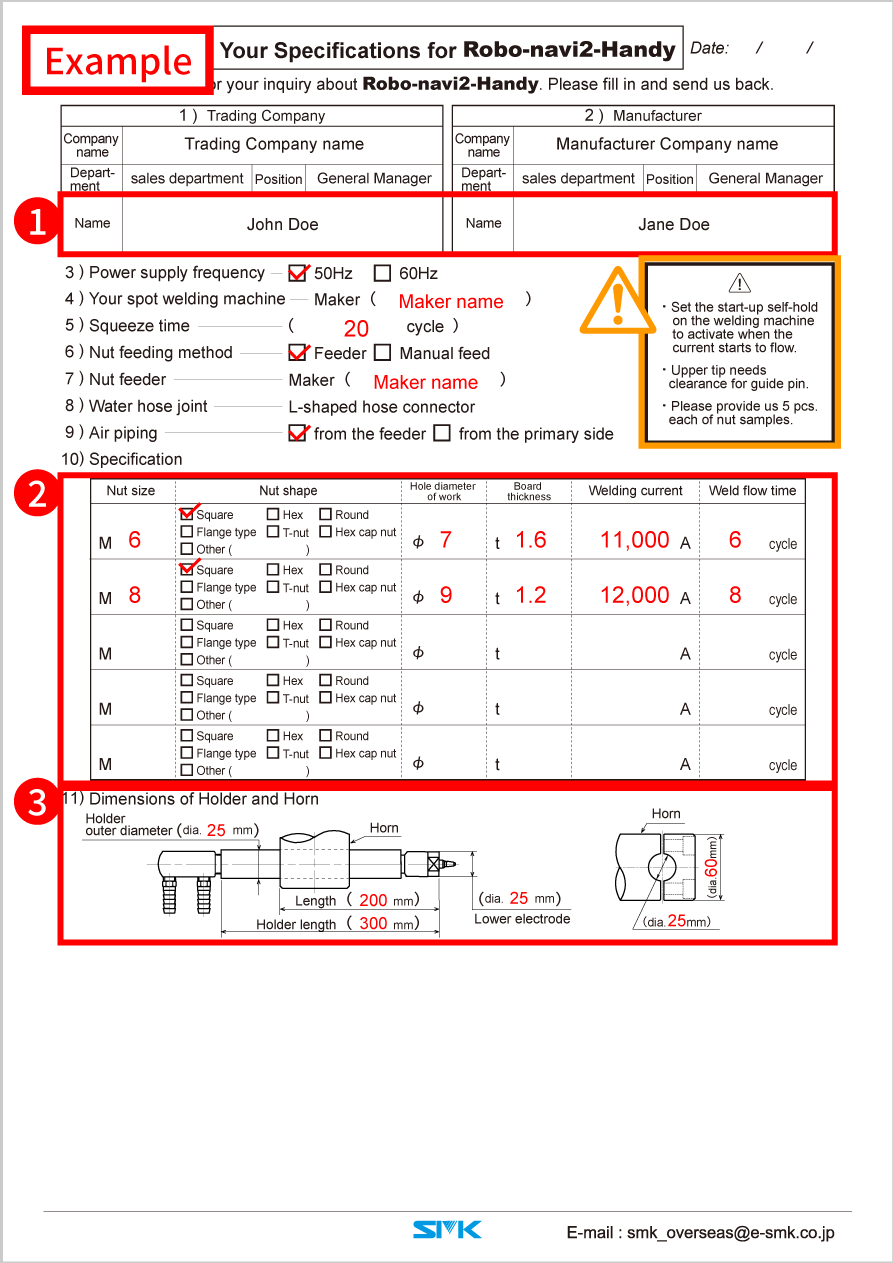

Specification

* If you do not have enough space to fill out the form, please send us multiple copies of the production specifications.

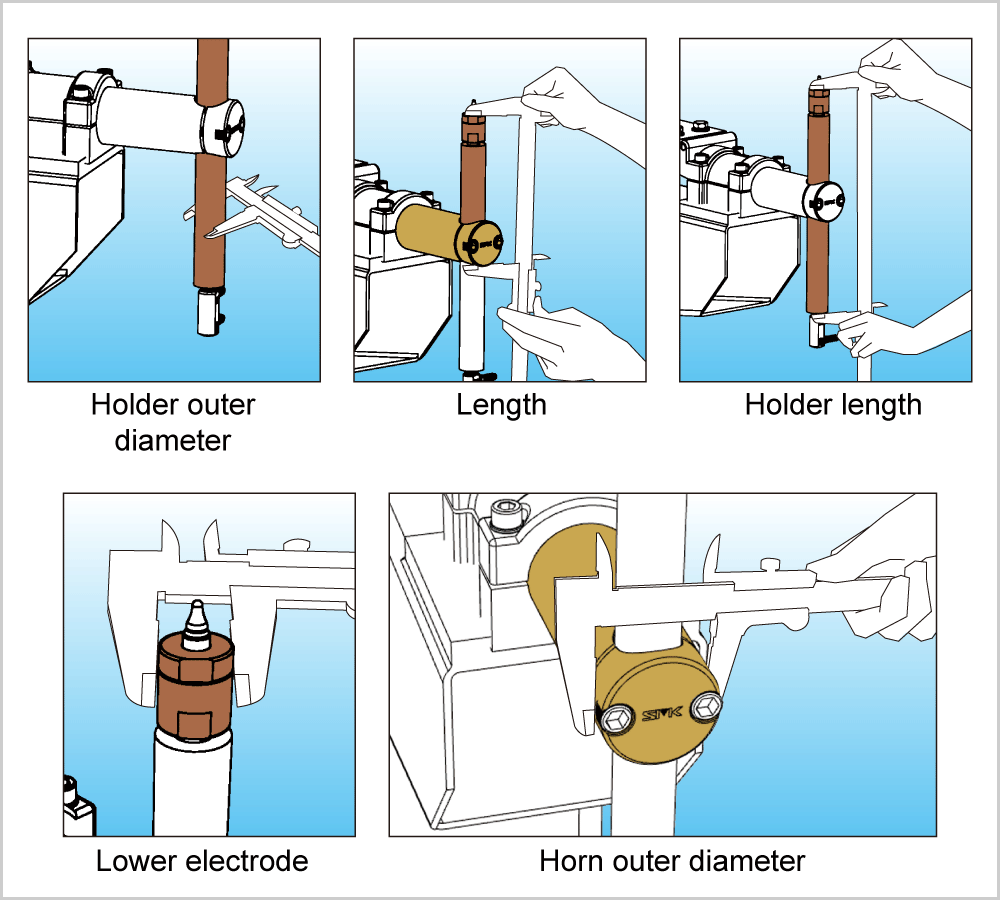

How to measure each dimension


※Click to enlarge



Chinese

笔记

  • 将焊机上的启动自保持设置为在电流开始流动时激活。
    当踩下脚踏开关片刻时,
    • 压力立即释放。
       →自保持随着通电的开始而起作用。
    • 加压未释放。
       →自保持在挤压时间开始起作用。

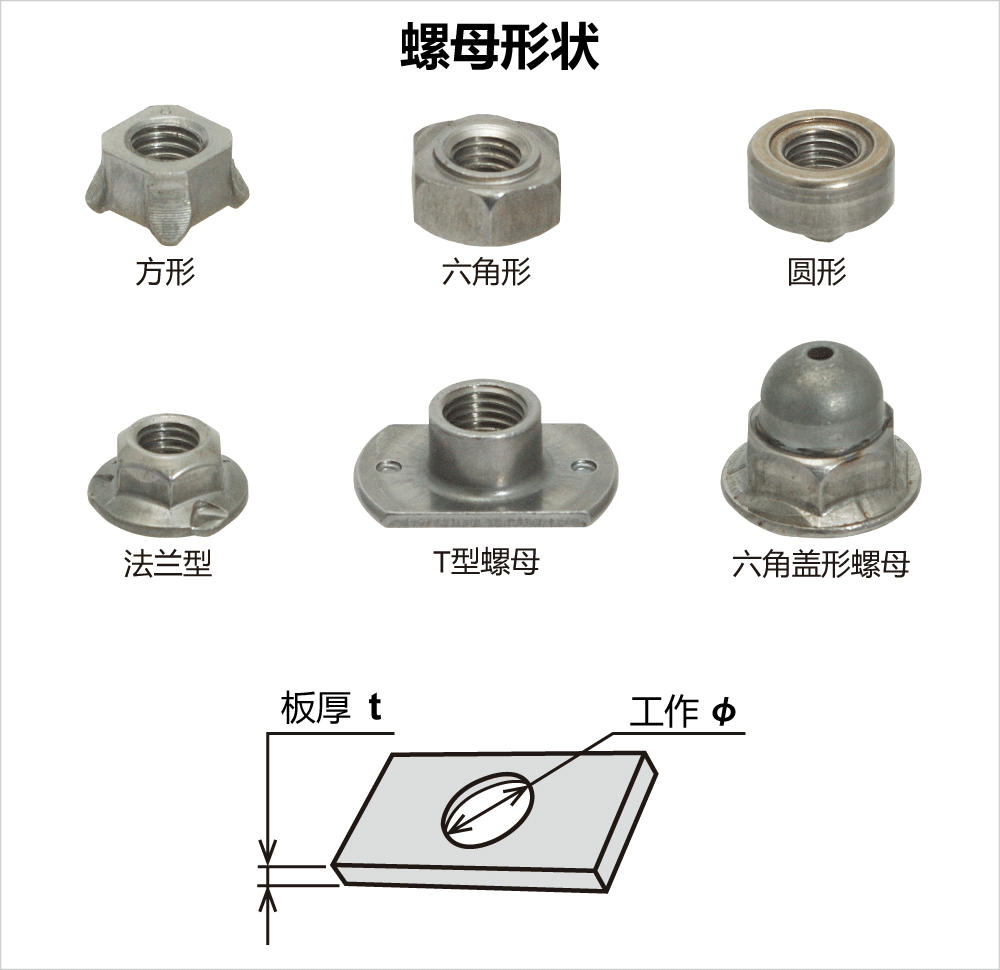

  • 请给我们提供5件。每个螺母样品。我们将制造适合您提供给我们的样品螺母的滑动装置。

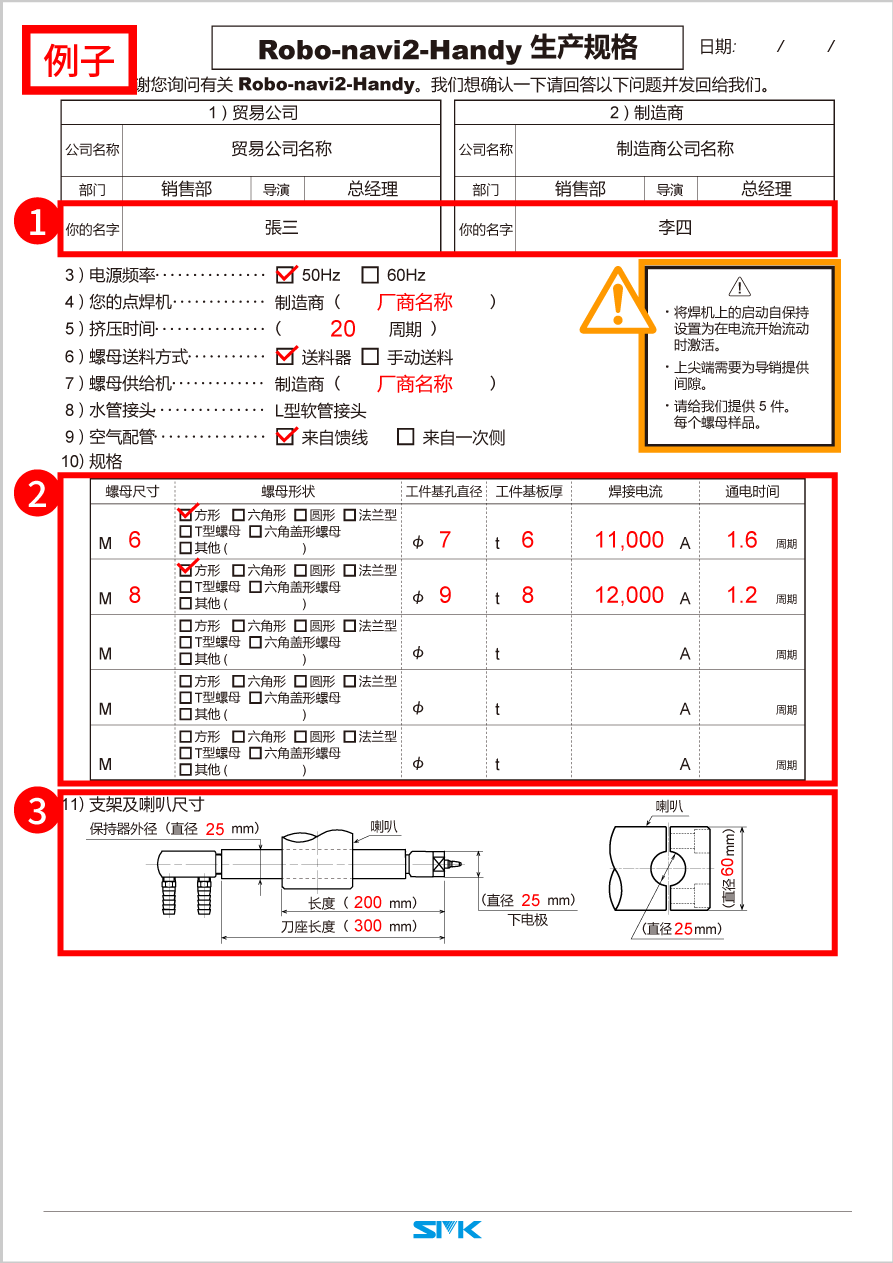

你的名字

写下你的全名。

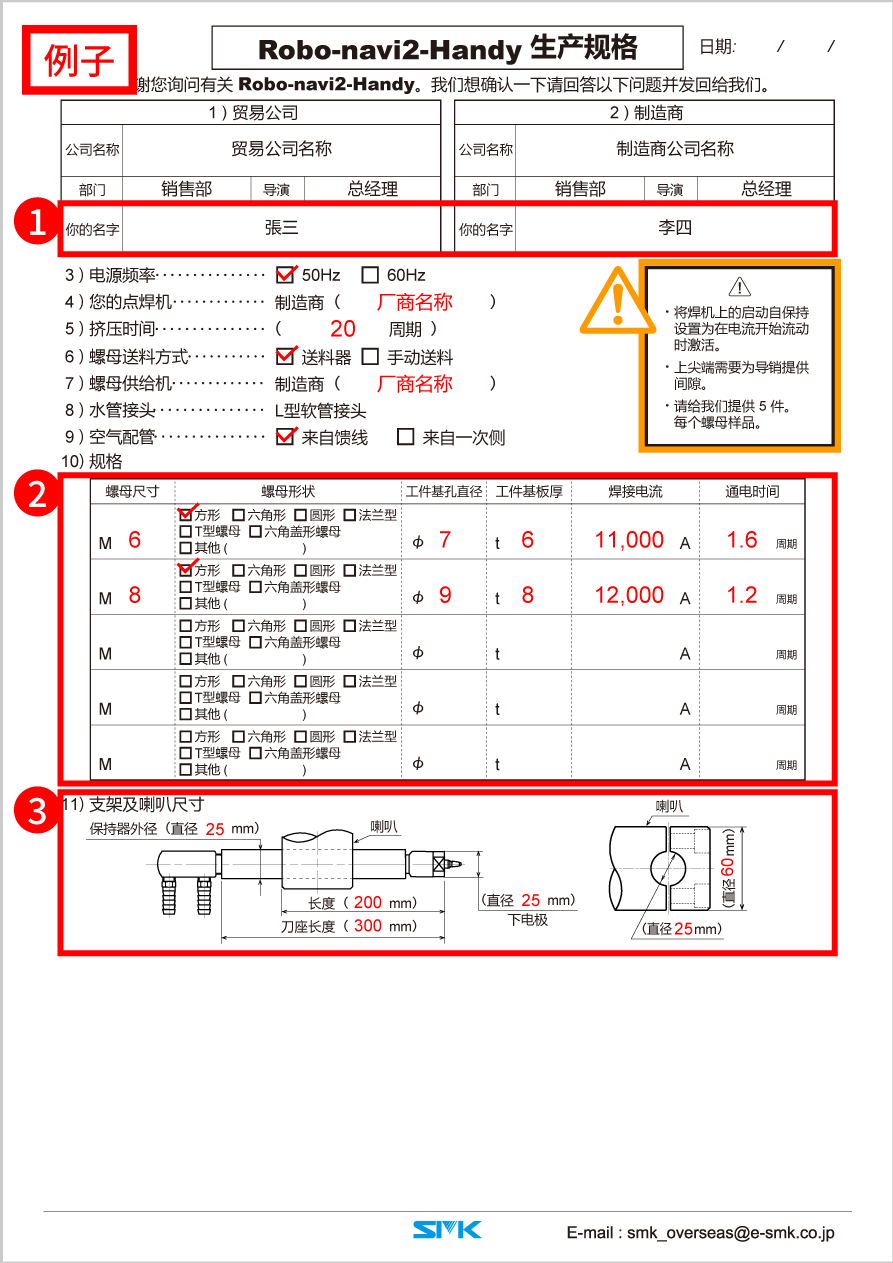

规格

*如果没有足够的空间,请发送多份制作说明书。

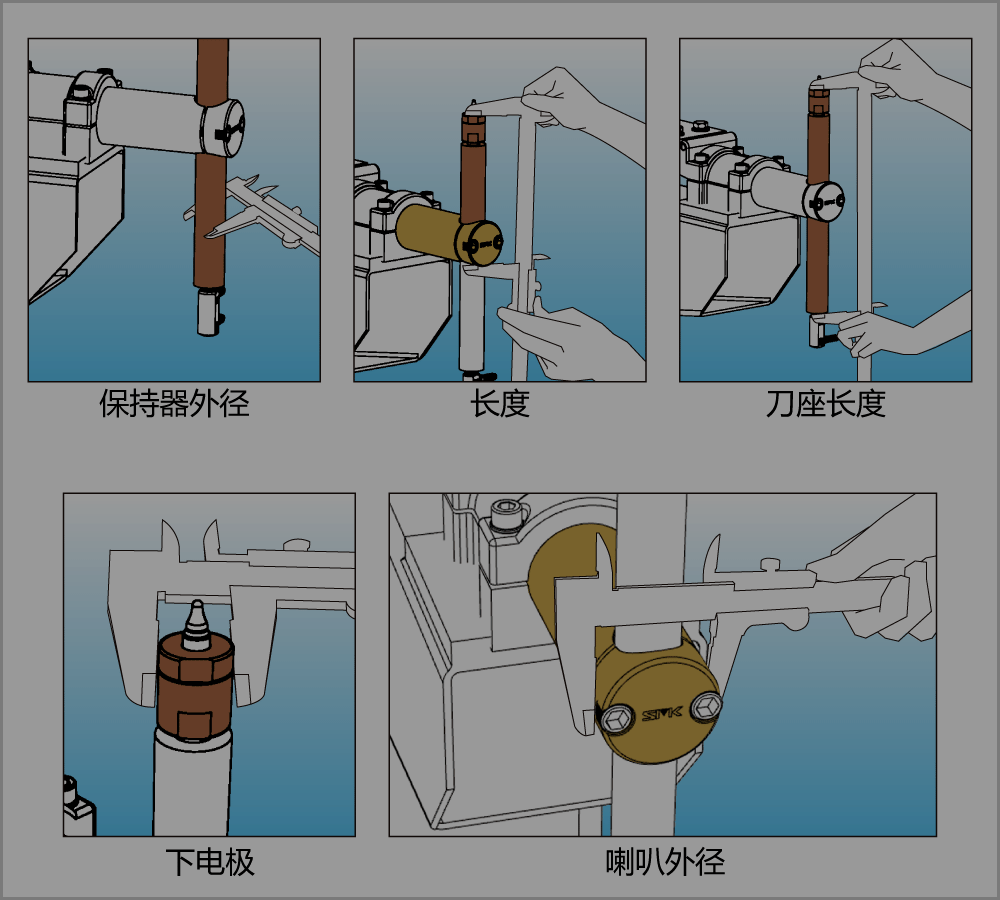

如何测量各个维度


※点击放大



Korean

주의사항

  • 용접기 기동 자기보유를“통전에서 자기보유”에설정해 주십시오.
    발로 밟는 스위치를 한순간만 눌렀을 때
    • 바로 가압이 해제된다.
       → 통전에서 자기보유
    • 가압이 해제되지 않는다.
       → 초기가압에서 자기보유

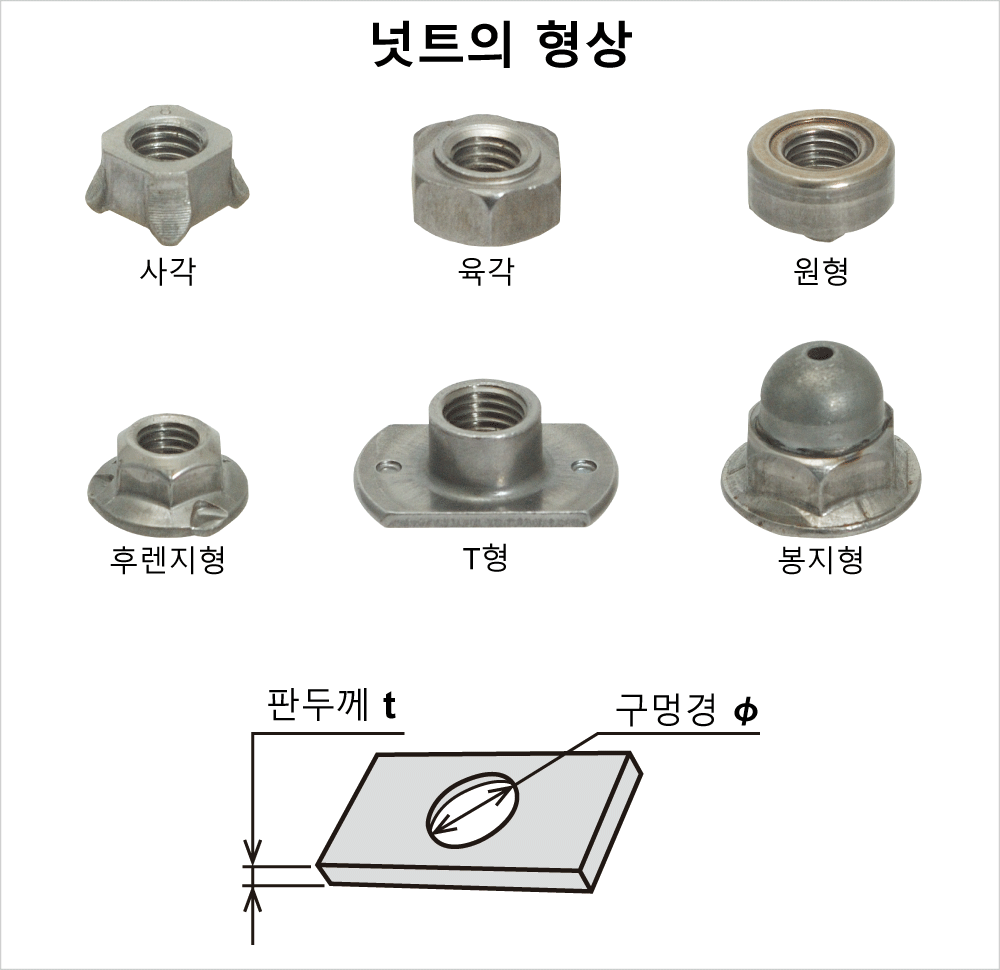

  • 넛트샘플을 각 5개 지급하 여 주십시요.지급받은 너트에 맞게 제작하겠습니다.

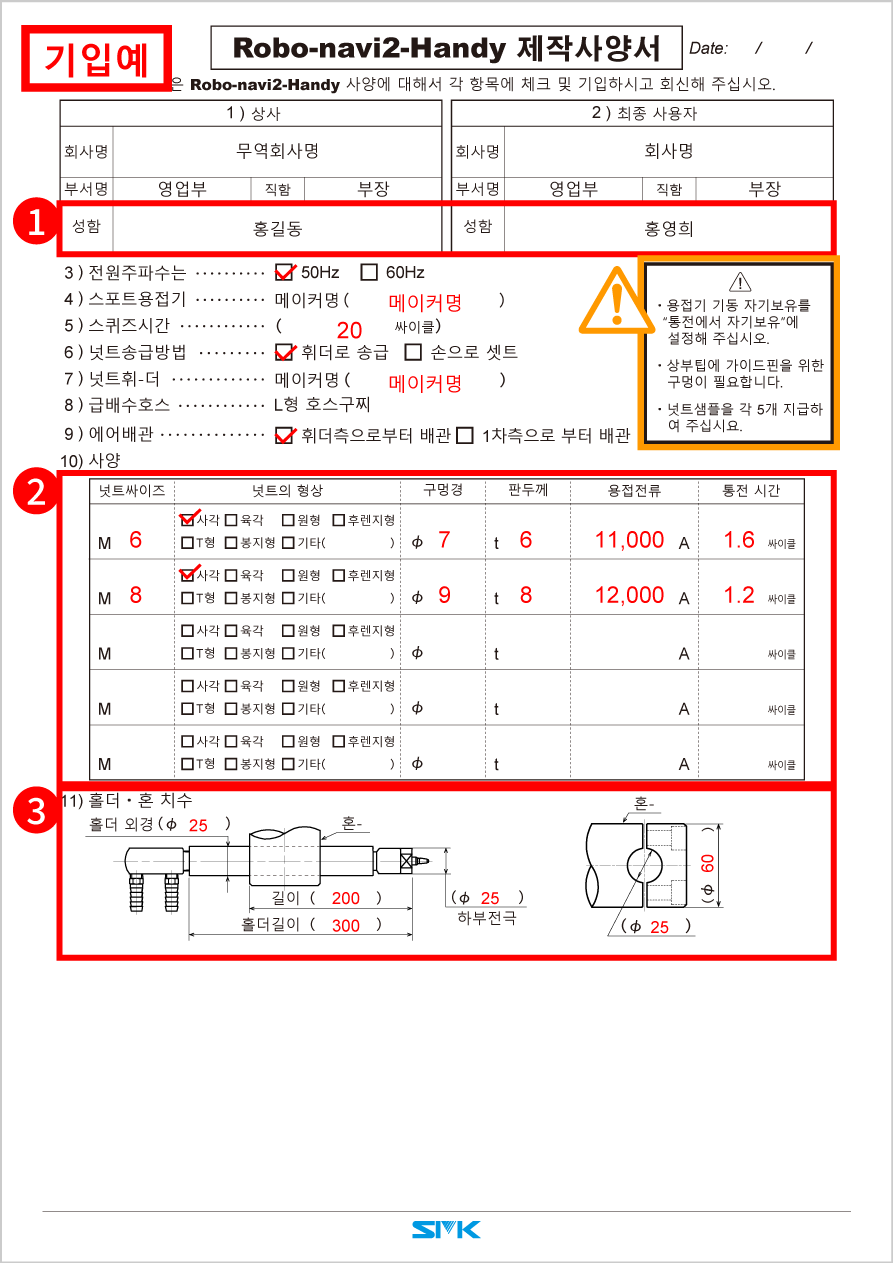

성함

이름은 풀네임으로 기입해 주십시오.

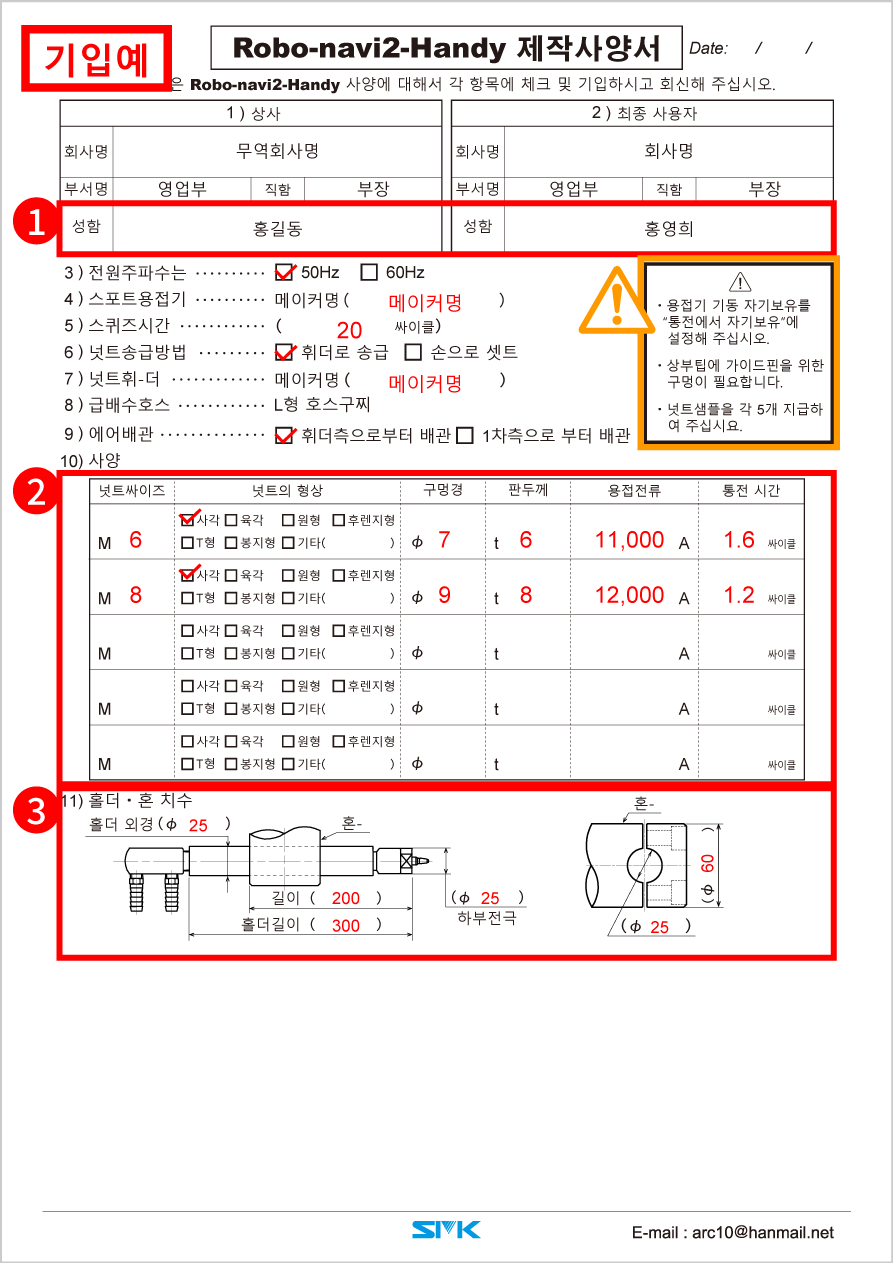

사양

*기입란이 부족한 경우, 제작 사양서를 여러 장 보내주시기 바랍니다.

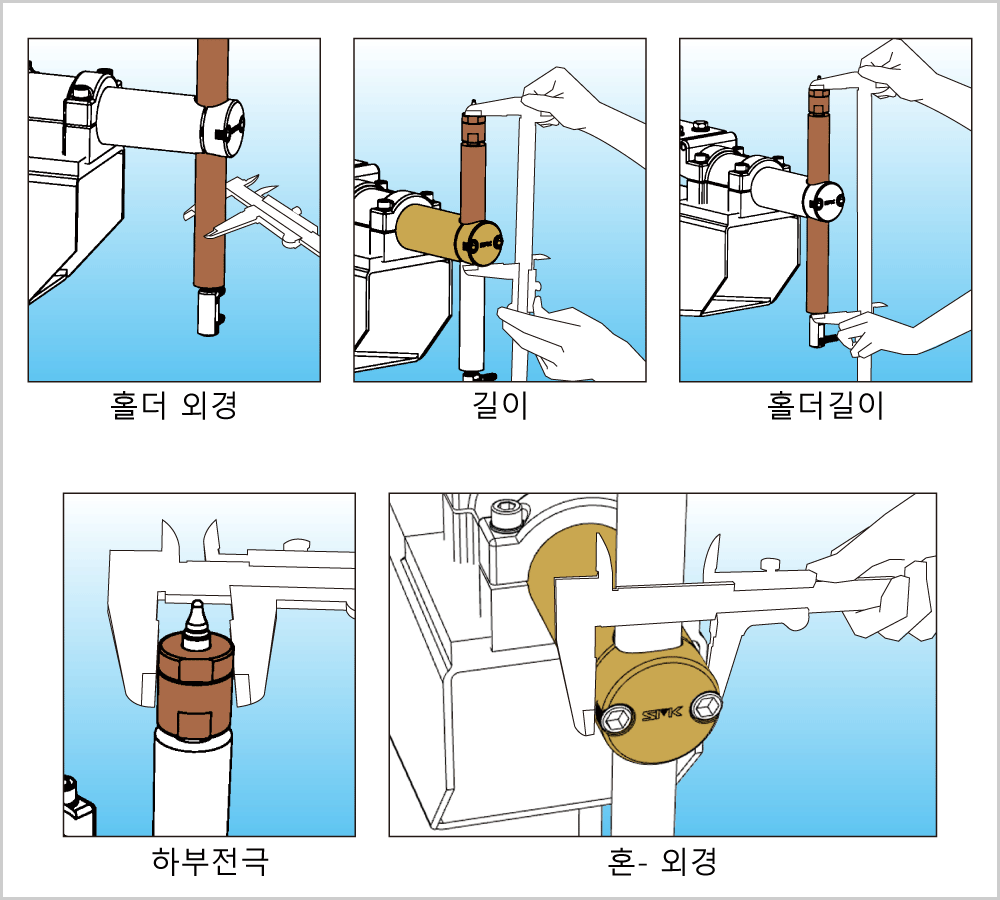

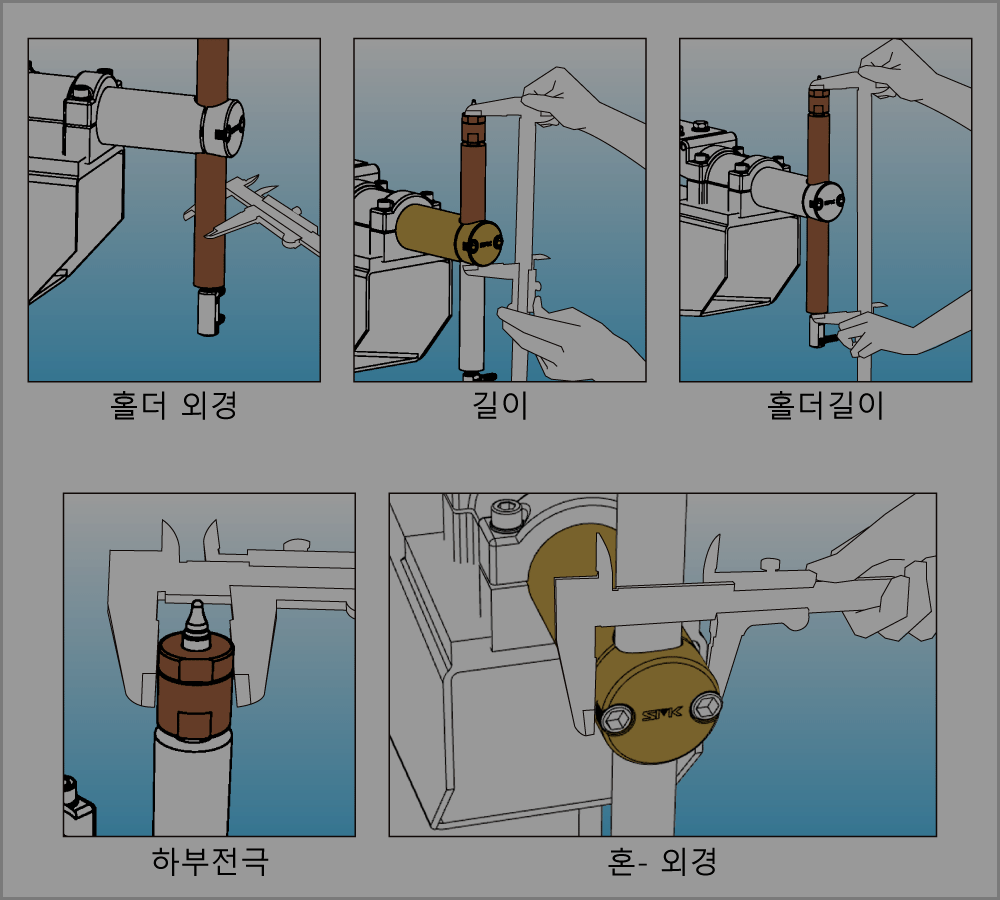

각 치수를 측정하는 방법


※확대하려면 클릭하세요.
