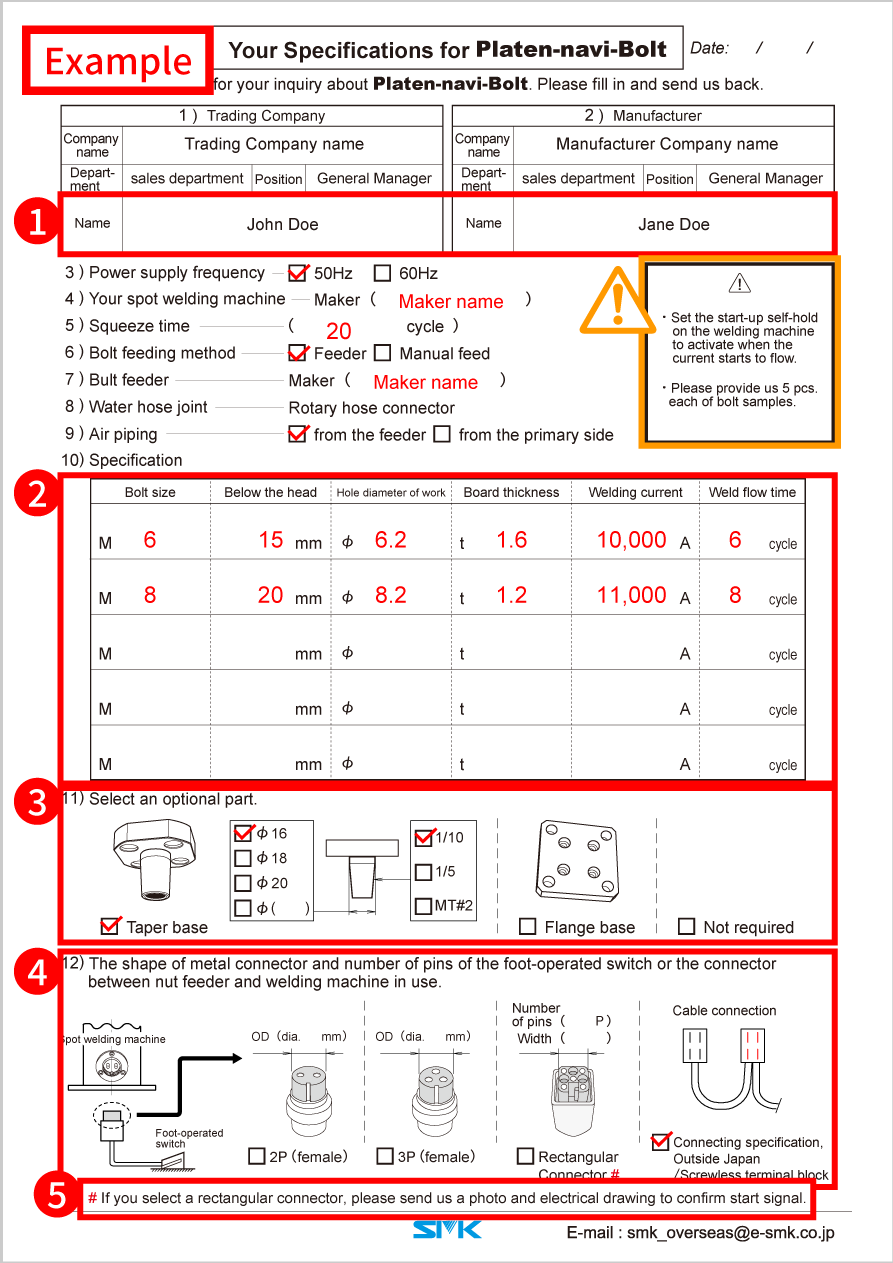

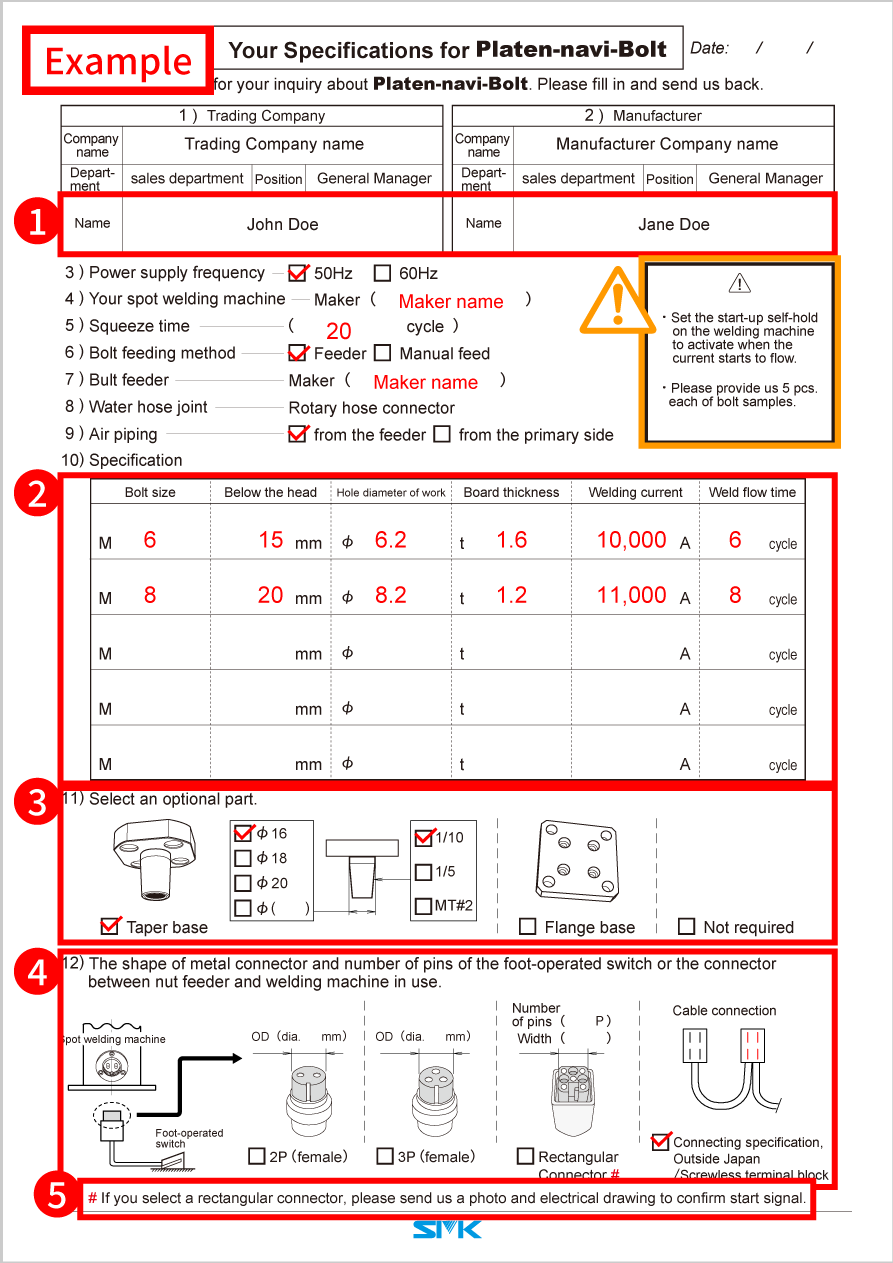

Example of specification document for Platen-navi-Bolt

The specification document can also be downloaded from the link below.

Please send us via e-mail.
E-mail: smk_overseas@e-smk.co.jp

Download

Language

English

Notes

  • Set the start-up self-hold on the welding machine to activate when the current starts to flow.
    When step on the foot-operated switch for a moment,
    • Pressurization is released immediately.
        →Self-hold works with starting of energization.
    • Pressurization is not released.
        →Self-hold works since the squeeze time.
  • Please provide us 5 pcs. each of bolt samples. We will manufacture the slide unit to fit sample bolt you supplied to us.



Your name

Write your full name.

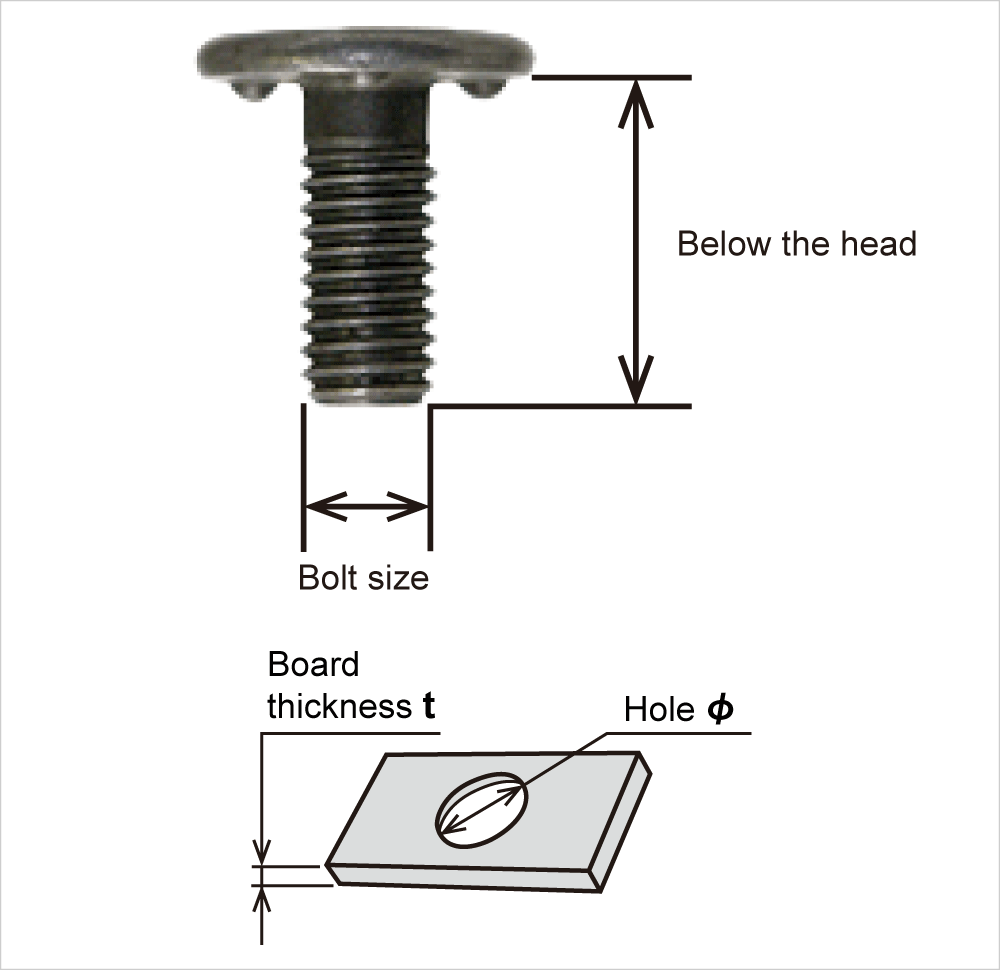

Specification

* If you do not have enough space to fill out the form, please send us multiple copies of the production specifications.



Select an optional part.

If you select a taper base, fill in the outer diameter of taper and also select an angle of taper.

The shape of metal connector and number of pins of the foot-operated switch.

Check the bottom of the welding machine.
If you use a nut feeder, check the connector between nut feeder and welding machine.

If you select a rectangular connector

Please take a picture so that we can see the size of a connector and the number of pins.

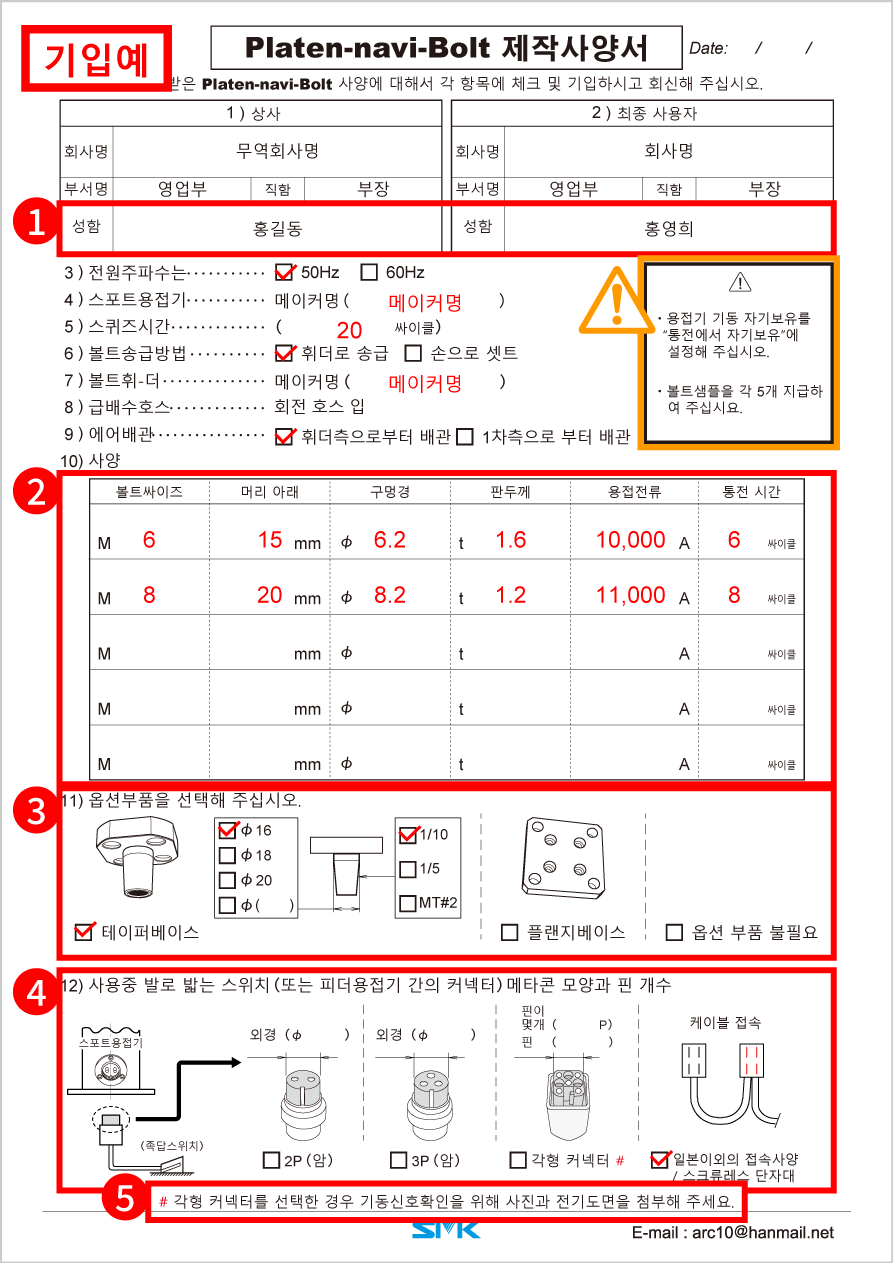

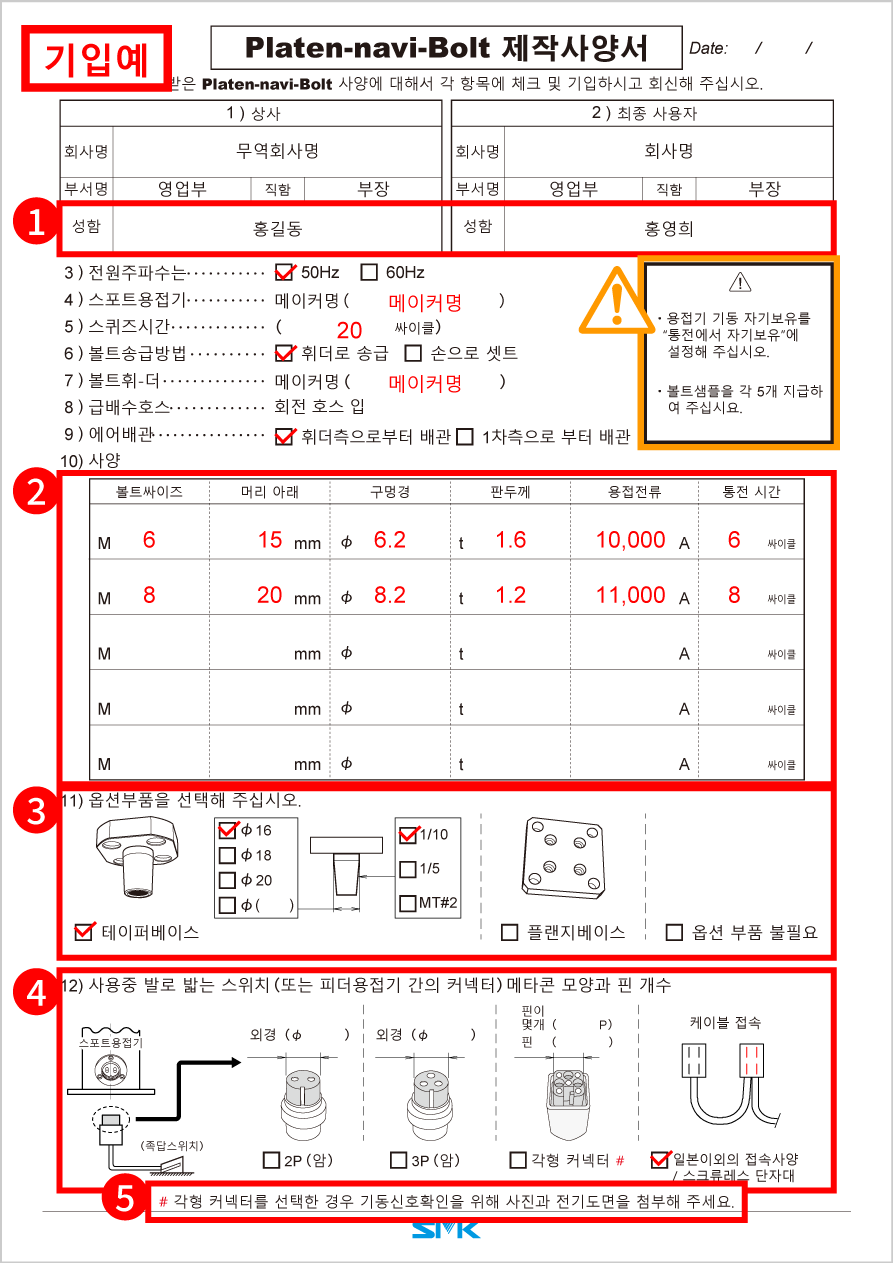

Korean

주의사항

  • 용접기 기동 자기보유를“통전에서 자기보유”에설정해 주십시오.
    발로 밟는 스위치를 한순간만 눌렀을 때
    • 바로 가압이 해제된다.
       → 통전에서 자기보유
    • 가압이 해제되지 않는다.
       → 초기가압에서 자기보유
  • 볼트샘플을 각 5개 지급하 여 주십시요.지급받은 볼트에 맞게 제작하겠습니다.




성함

이름은 풀네임으로 기입해 주십시오.

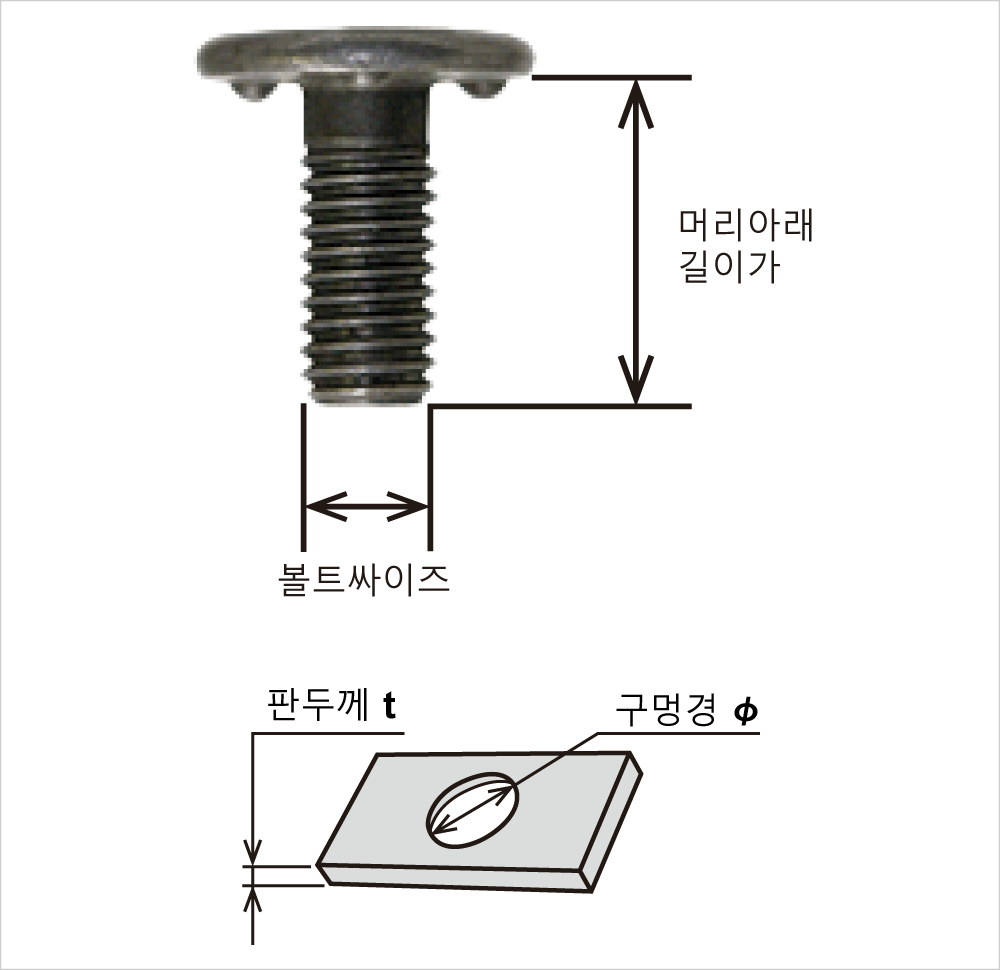

사양

*기입란이 부족한 경우, 제작 사양서를 여러 장 보내주시기 바랍니다.



옵션부품을 선택해 주십시오.

테이퍼베이스를 선택한 경우는 테이퍼부의 외경을 기입하시고 테이퍼 각도를 선택해 주십시오.

발로 작동하는 스위치의 금속 커넥터 모양과 핀 수.

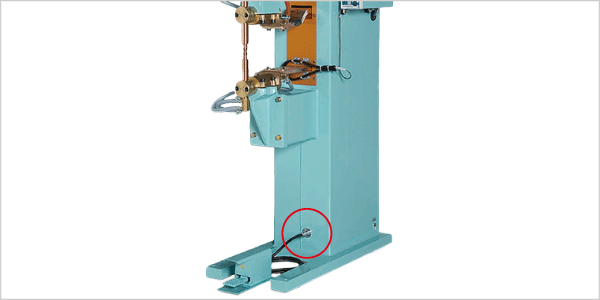

용접기 하부를 확인해 주십시오.
피더를 사용할 경우는 피더와 용접기를 연결 하는 커넥터를 확인해 주십시오.

각형 커넥터를 선택한 경우

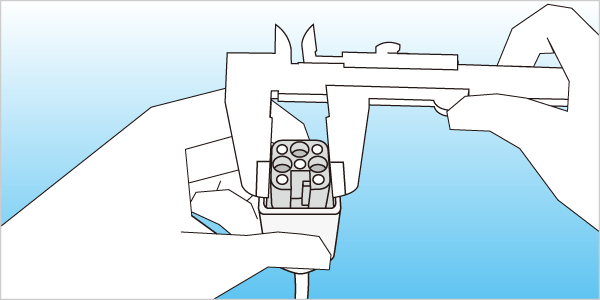

커넥터 크기와 핀 개수 가 보이기 쉽게 촬영해 주십시오.또한 전기 도면도 첨부해 주십시오.
