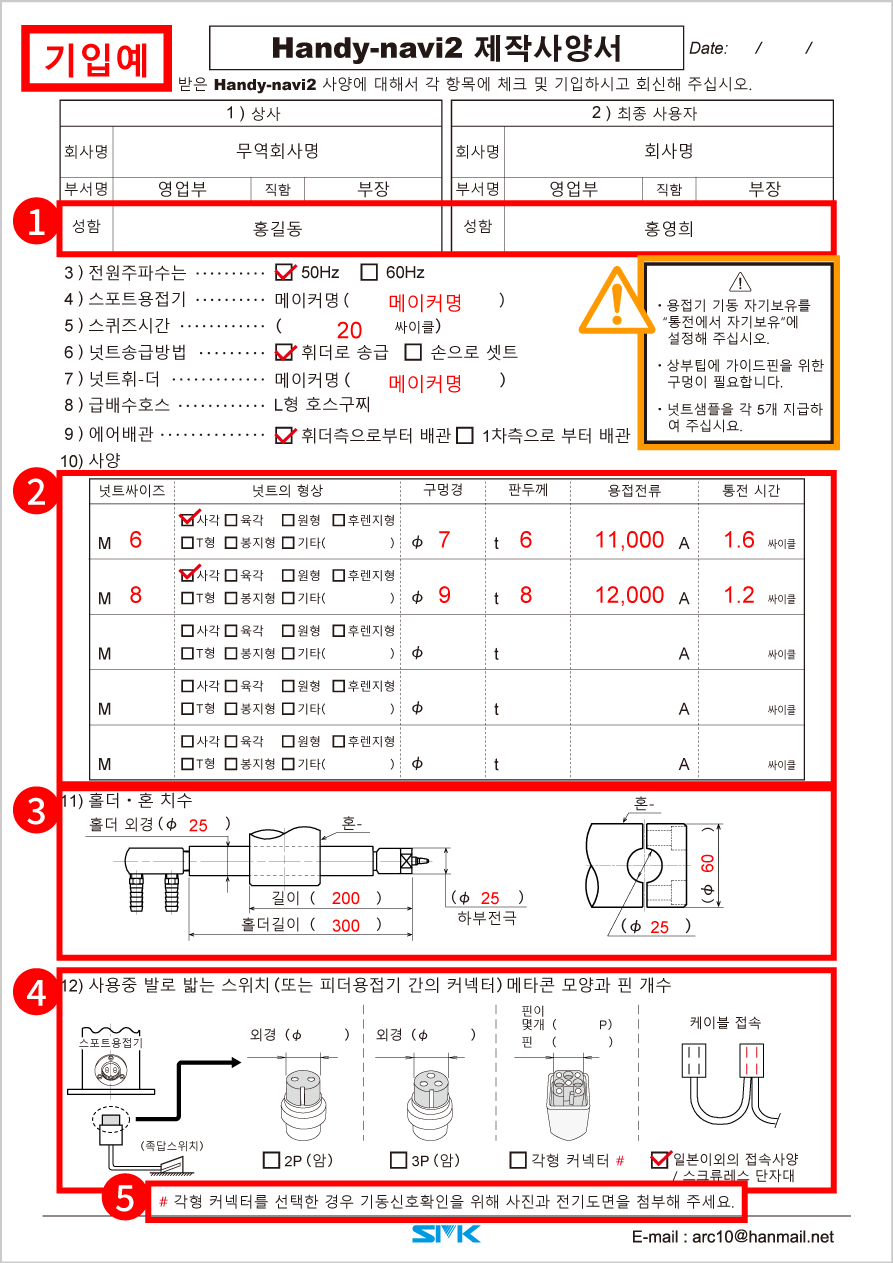

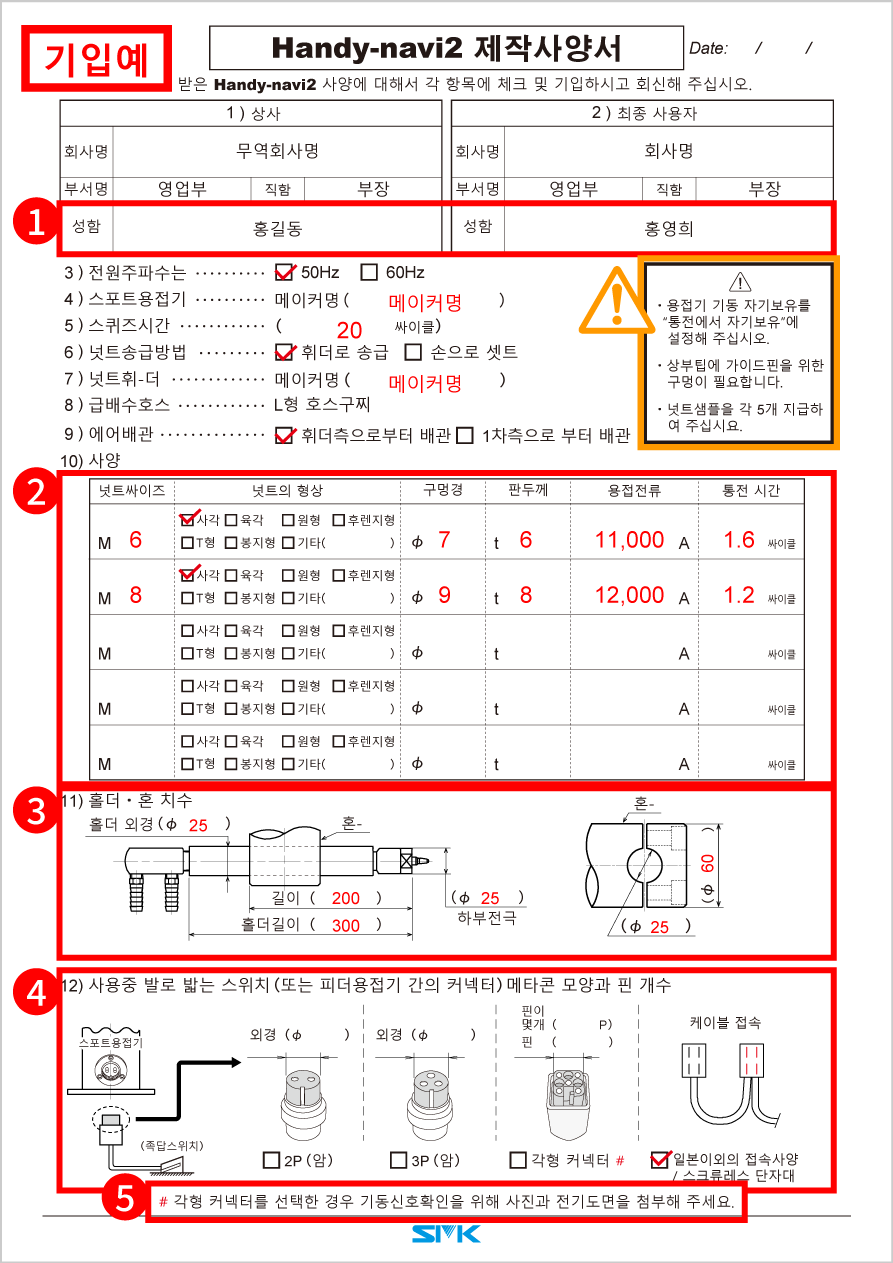

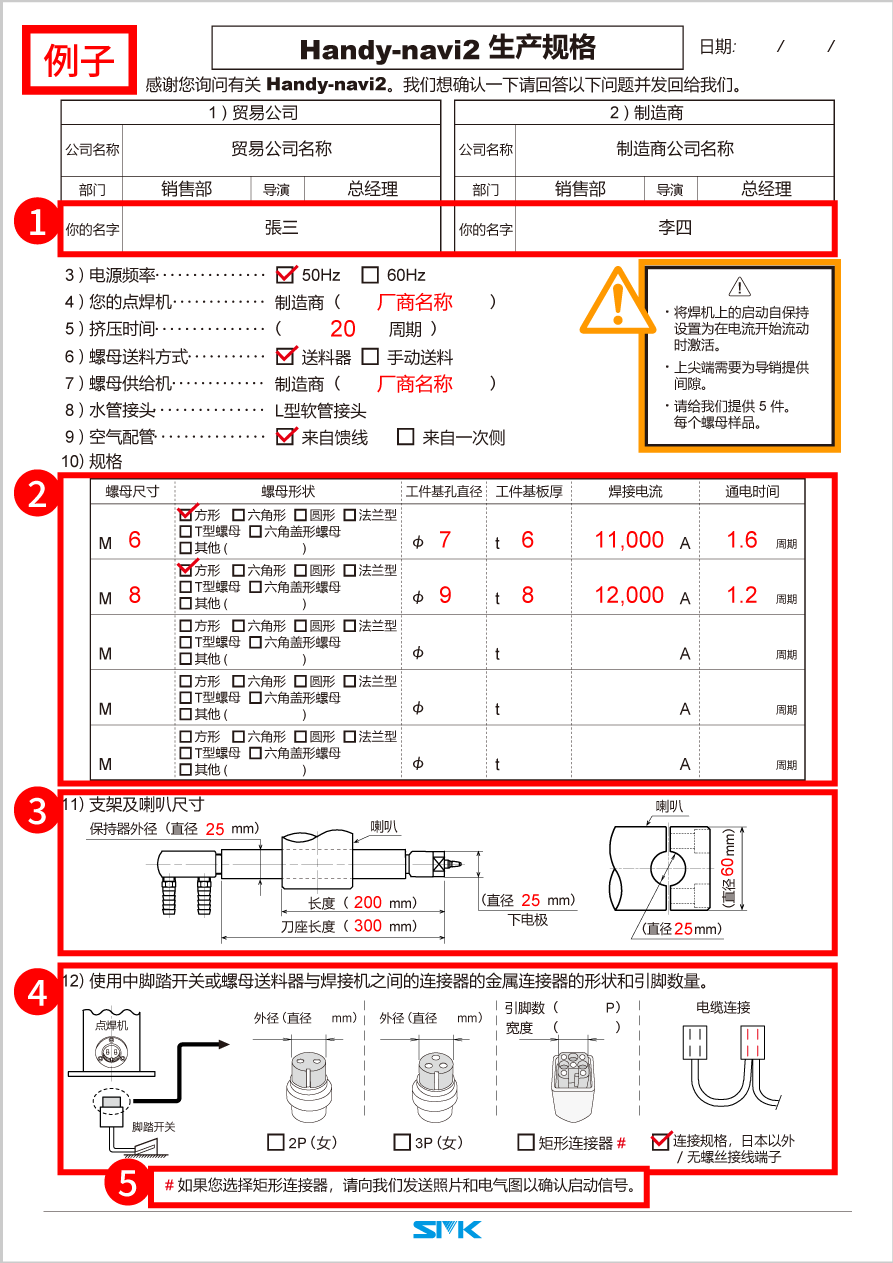

Please fill out the specification document attached to the instruction manual of navi slide unit and send us via fax or e-mail.

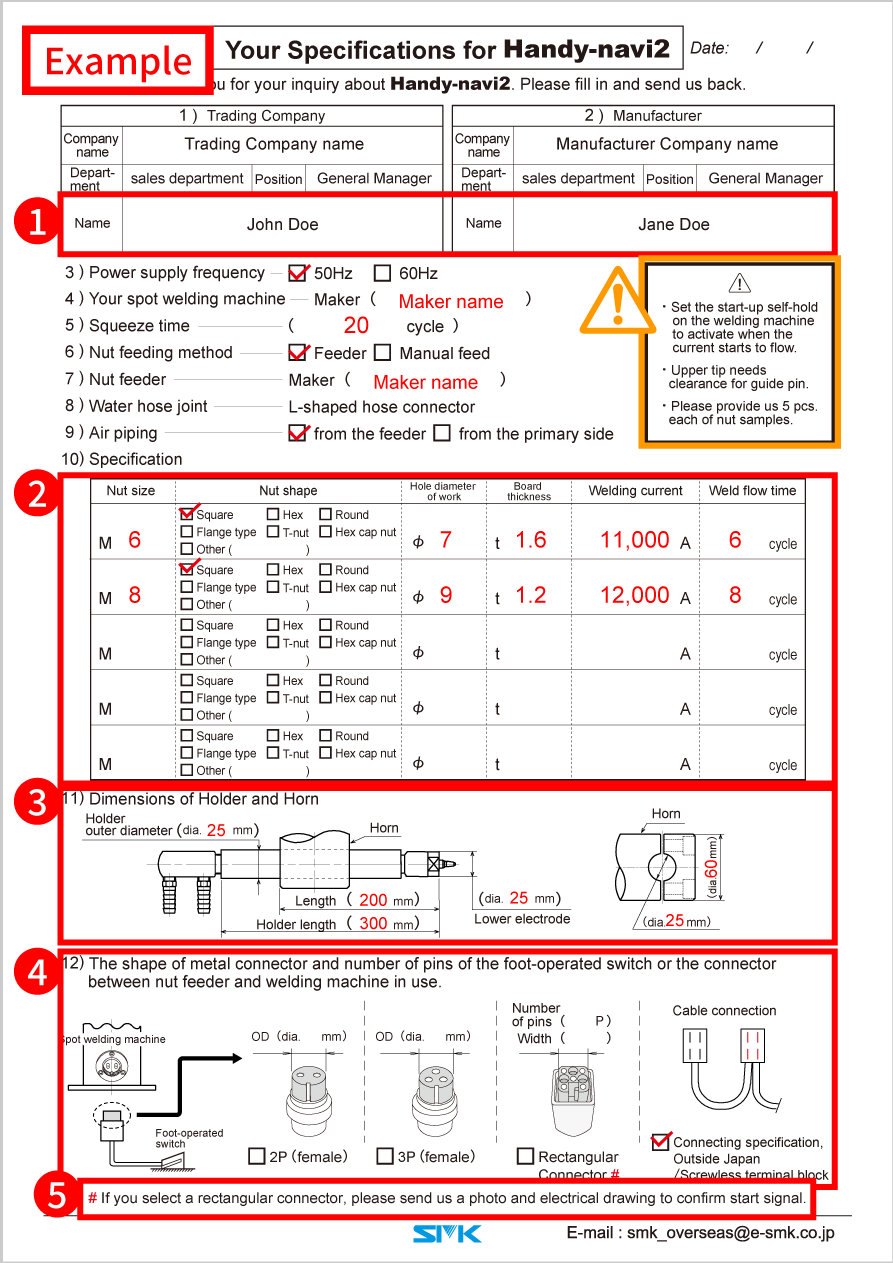

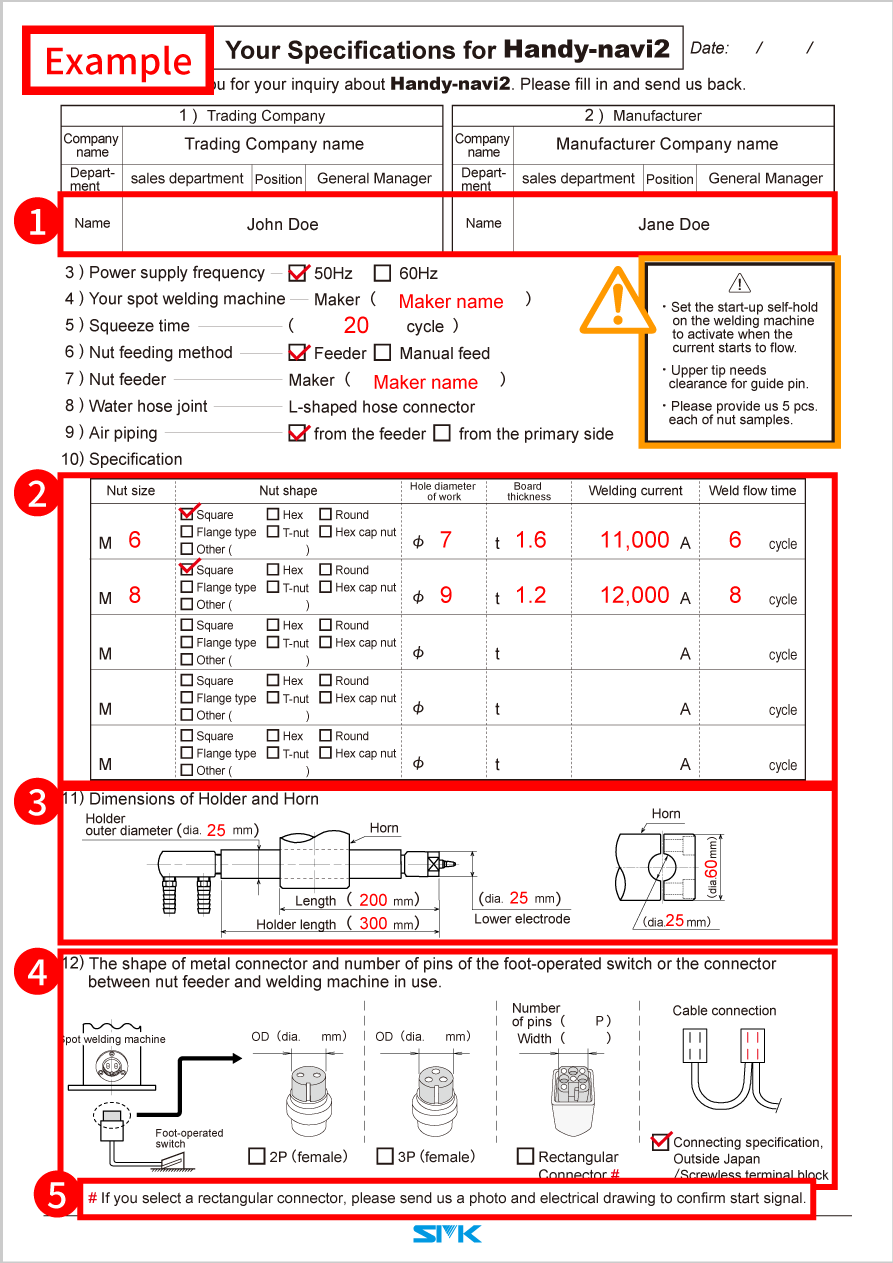

Please refer to the image below for an example.
The specification document can also be downloaded from the link below.
Download
Language
English
Notes
- Set the start-up self-hold on the welding machine to activate when the current starts to flow.
When step on the foot-operated switch for a moment, - Pressurization is released immediately.
→Self-hold works with starting of energization. - Pressurization is not released.
→Self-hold works since the squeeze time. - Please provide us 5 pcs. each of nut samples.
We will manufacture the slide unit to fit sample nut you supplied to us.
Your name
Write your full name.

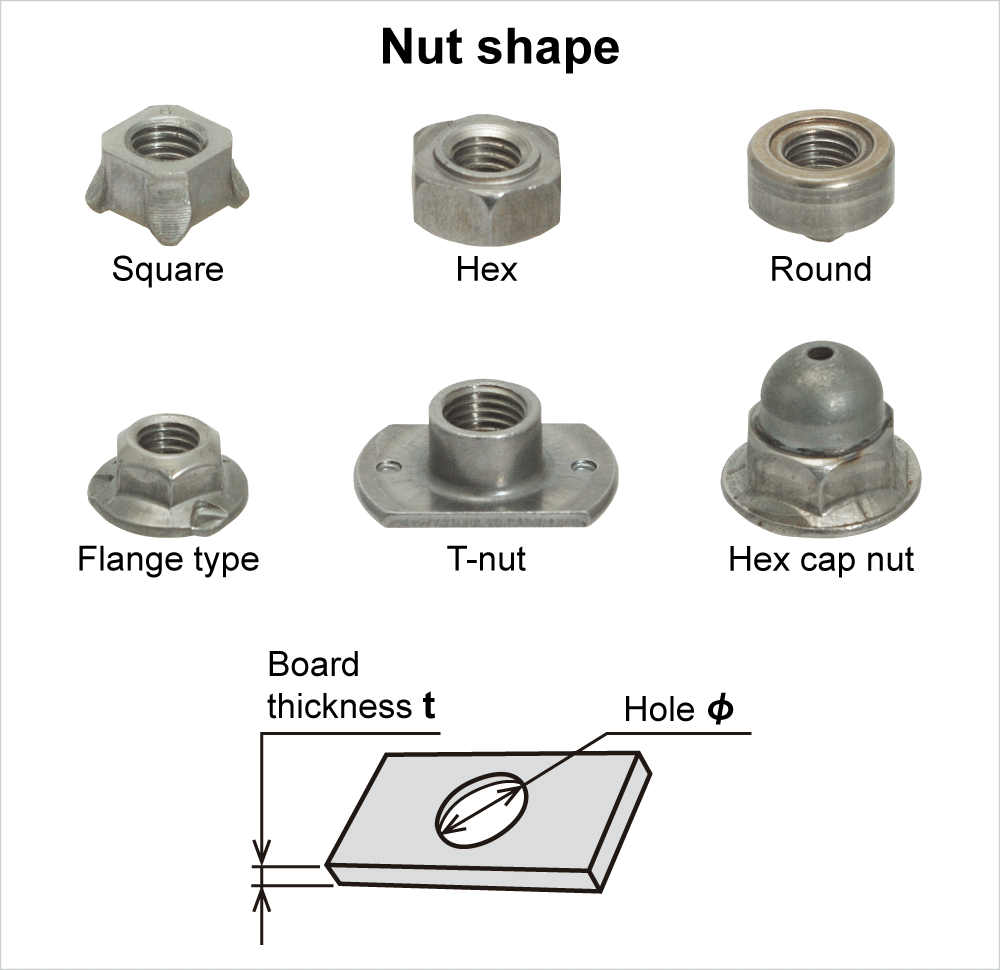

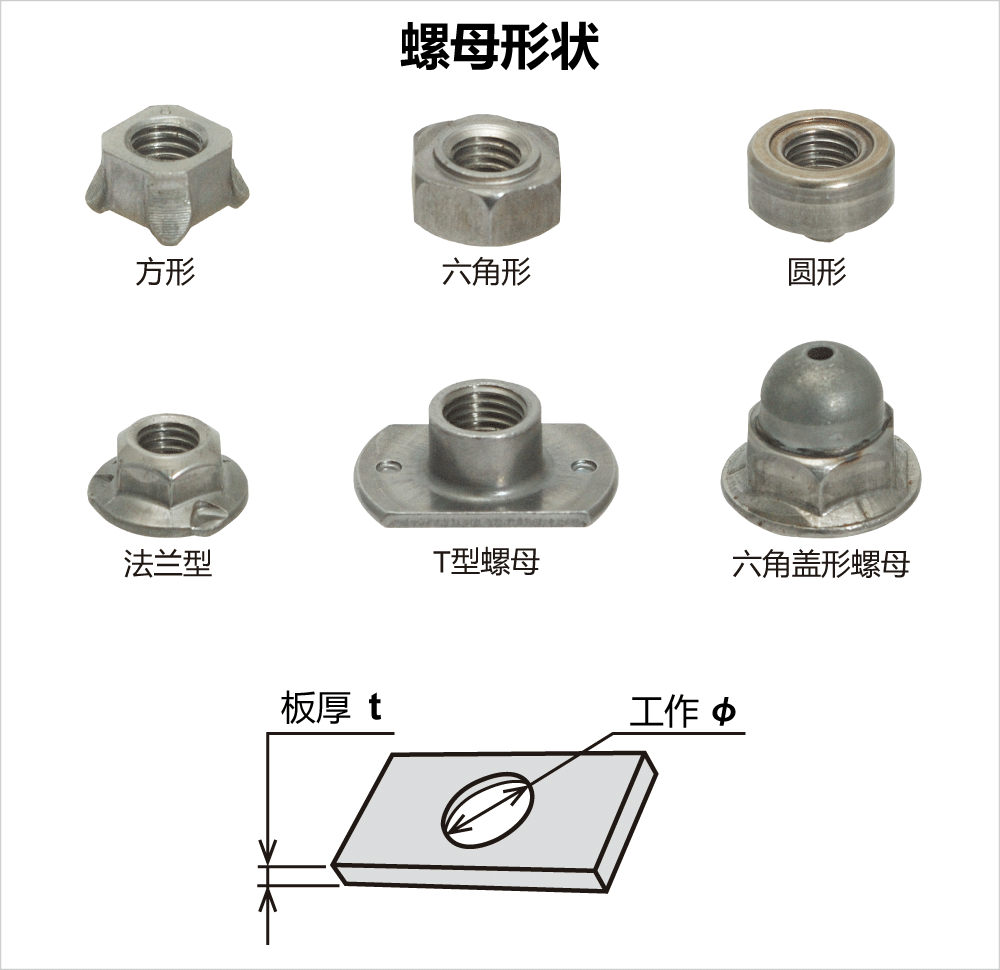

Nut shape

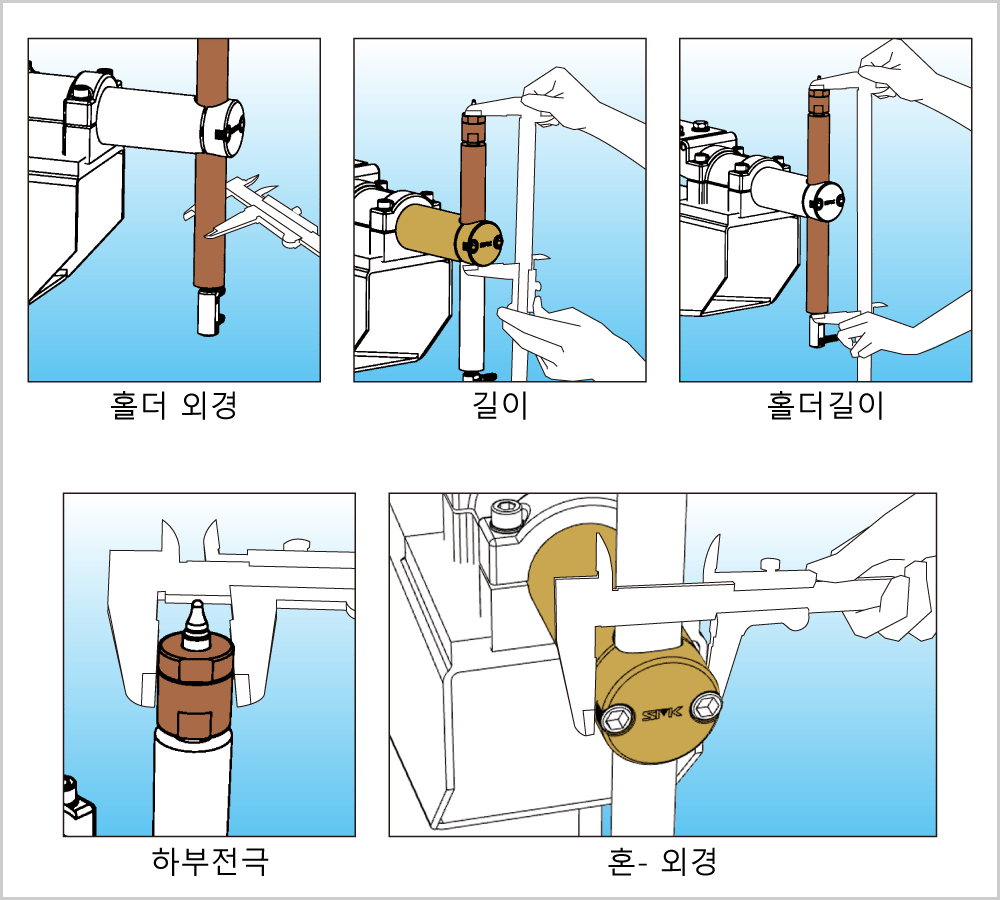

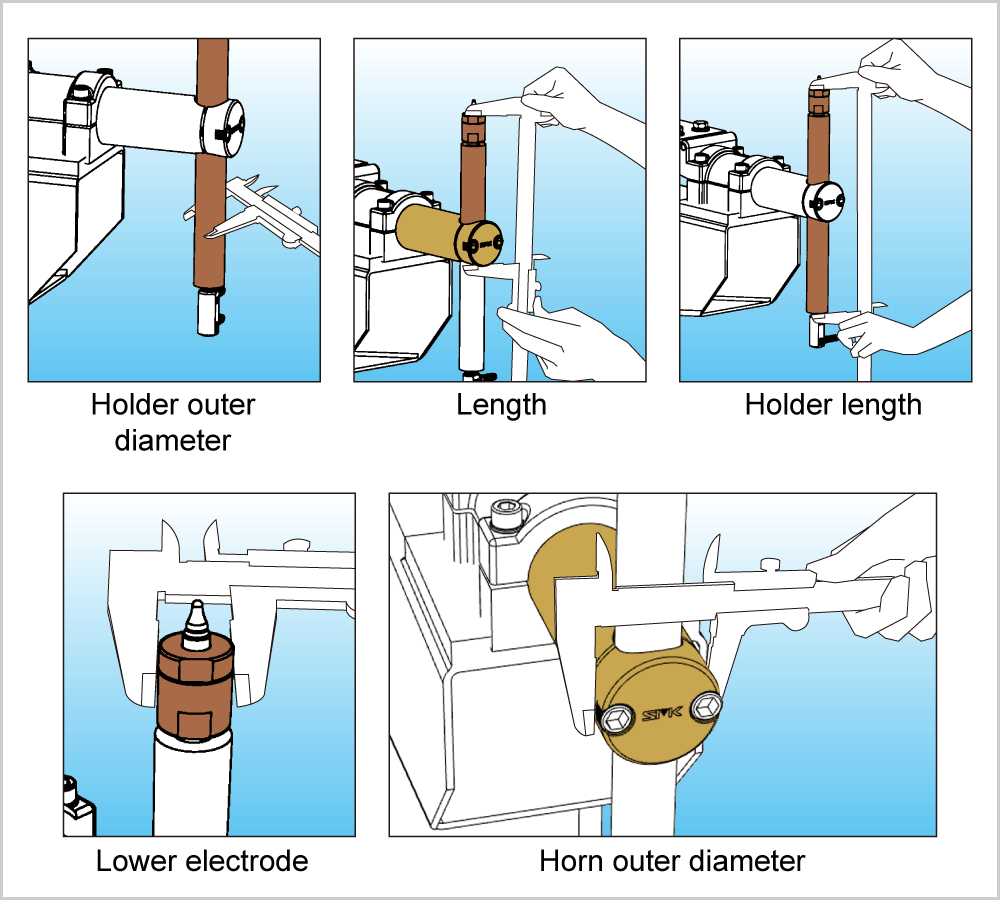

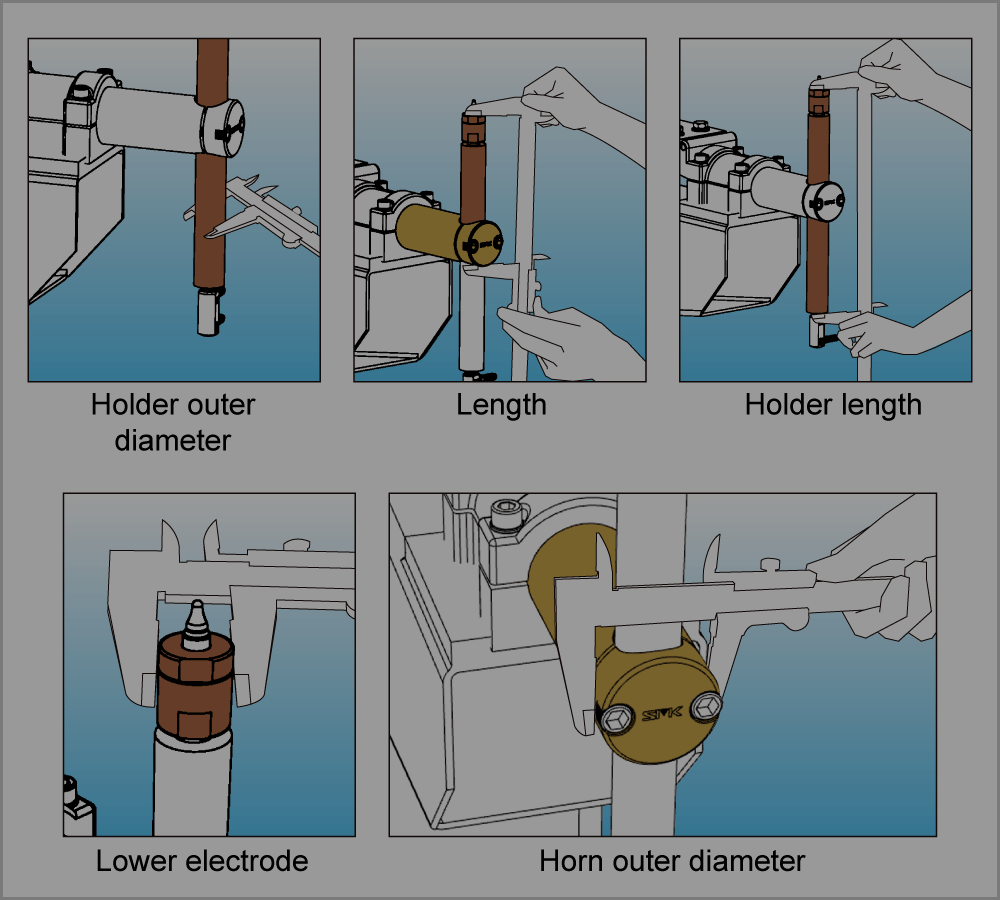

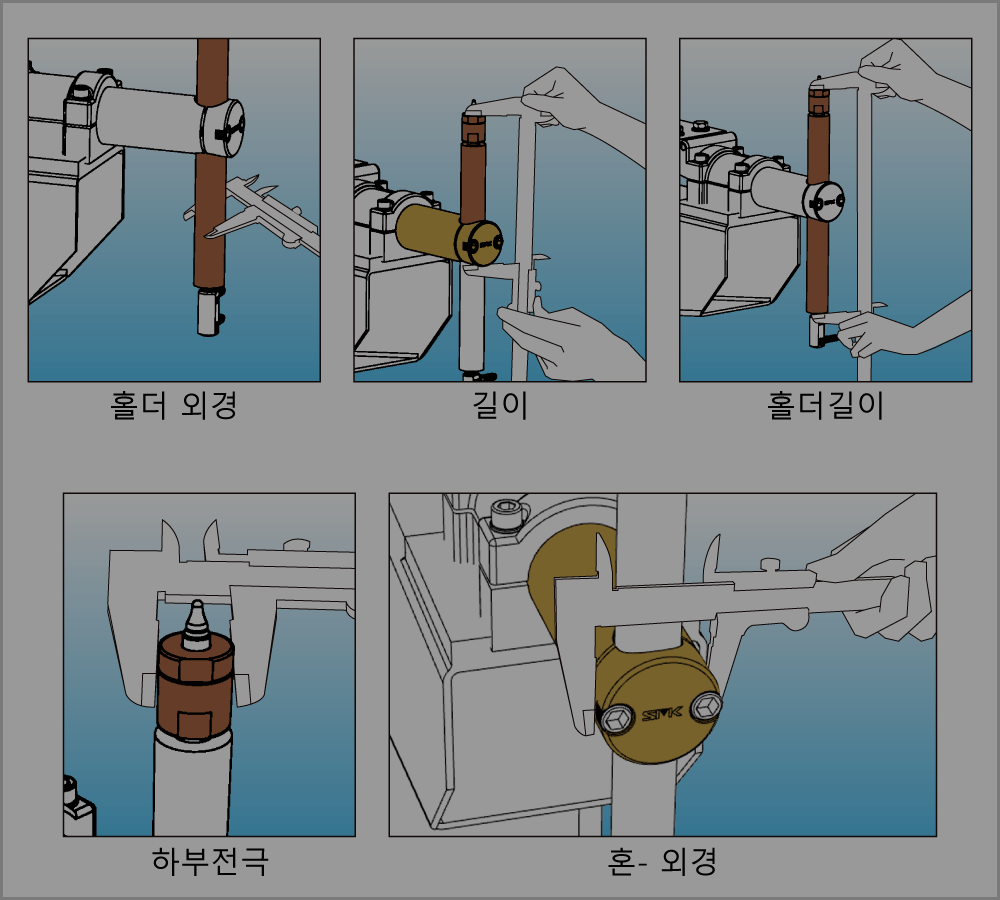

How to measure each dimension
The shape of metal connector and number of pins of the foot-operated switch.

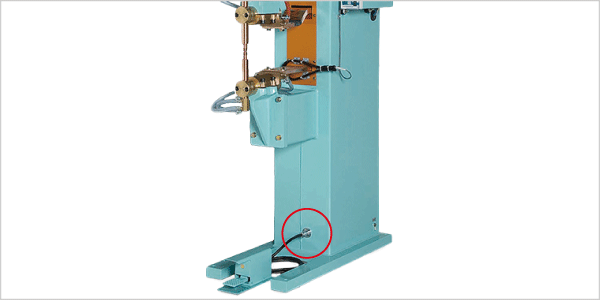

Check the bottom of the welding machine.
If you use a nut feeder, check the connector between nut feeder and welding machine.
If you use a nut feeder, check the connector between nut feeder and welding machine.
If you select a rectangular connector

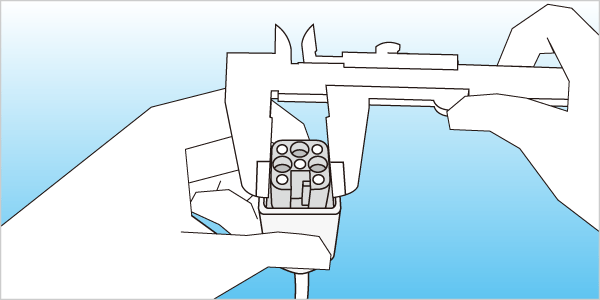

Please take a picture so that we can see the size of a connector and the number of pins.
脚踏开关的金属连接器的形状和引脚数
检查焊机底部。
如果您使用螺母送料器,请检查螺母送料器和焊接机之间的连接器。
如果您使用螺母送料器,请检查螺母送料器和焊接机之间的连接器。
如果您选择矩形连接器
请拍一张照片,以便我们可以看到连接器的尺寸和针数。
발로 작동하는 스위치의 금속 커넥터 모양과 핀 수.
용접기 하부를 확인해 주십시오.
피더를 사용할 경우는 피더와 용접기를 연결 하는 커넥터를 확인해 주십시오.
피더를 사용할 경우는 피더와 용접기를 연결 하는 커넥터를 확인해 주십시오.
각형 커넥터를 선택한 경우
커넥터 크기와 핀 개수 가 보이기 쉽게 촬영해 주십시오.또한 전기 도면도 첨부해 주십시오.
