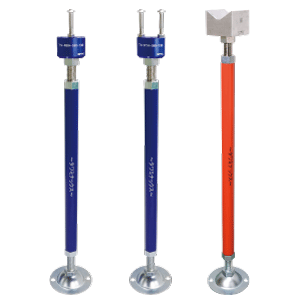

～Tawaminax～

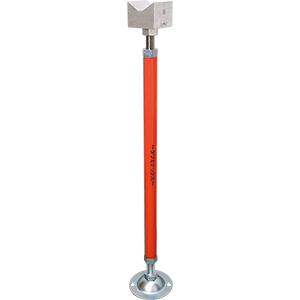

Overview

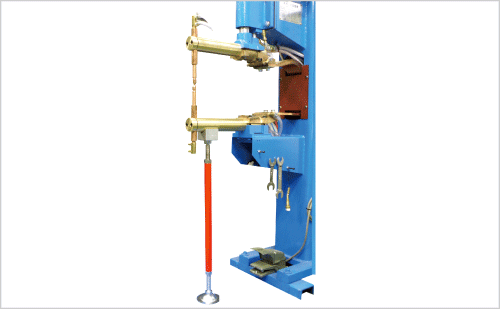

Tawaminax prevents deflection of the horn at the time of pressurization.
Mounting and installing
Fix the Tawaminax and the spot welder with anchor bolts not to move by the vibration due to pressurisation.

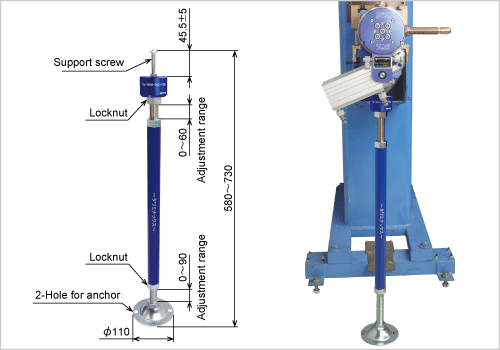

Specifically for Robot-Benri Holder

Maximum withstand load: 600kg
Weight: 2.48kg


Mounting and installing

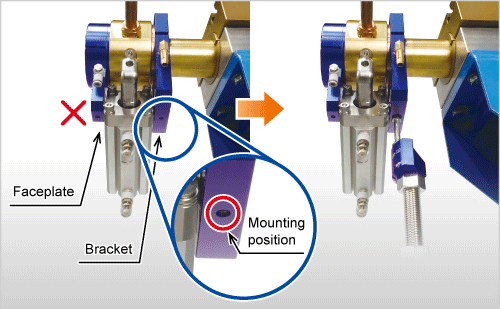

Be sure to atatch into the screw hole of the bracket, not on the faceplate of Robot-Benri Holder. Do not attach to the faceplate of Robot-Bebri Holder. Damage to the product can result.

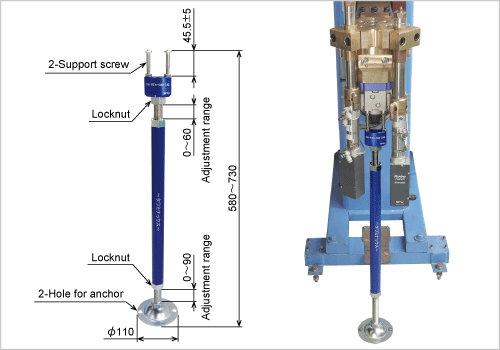

Specifically for Robot-Twin Arm

Maximum withstand load: 500kg
Weight: 2.51kg



Mounting and installing

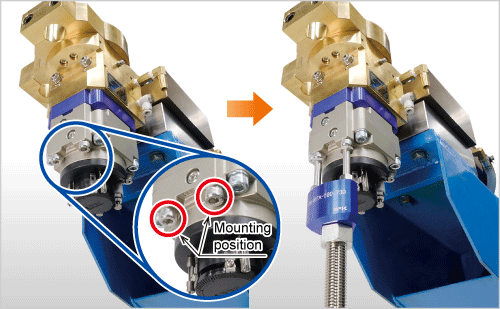

Attach to the two bolts on the front side of the Robot-Twin Arm.

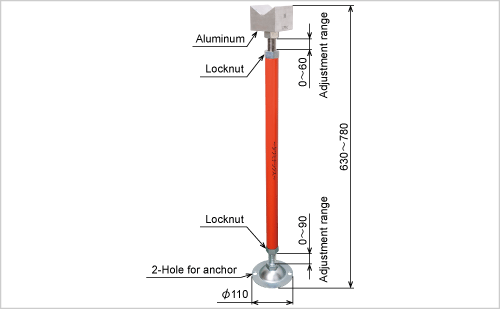

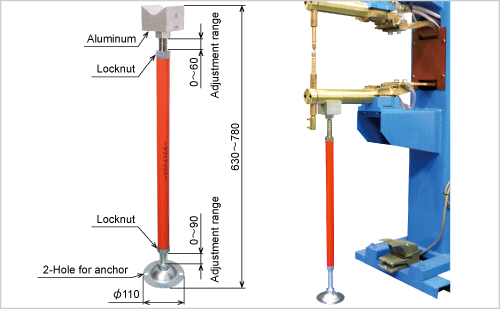

Specifically for Horn

Height from floor to bottom of horn: approx.650mm～750mm
Length adjustment: up 60mm down 90mm total 150mm
Maximum withstand load: 800Kg
Weight: 3Kg
