Taper Gauge

Overview

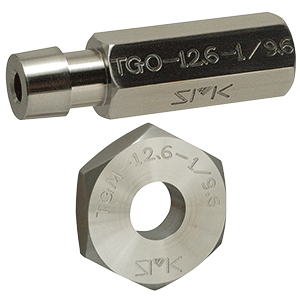

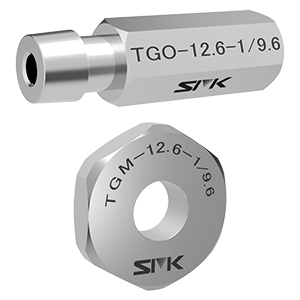

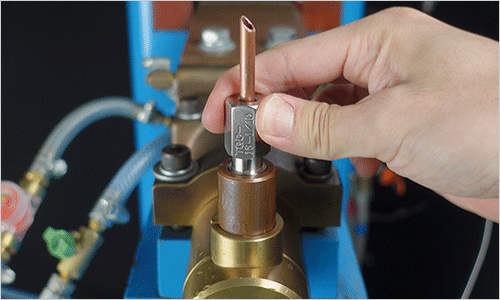

Taper gauge is the tool for inspections of electrodes taper part.
You can quickly and easily inspect the taper and prevent defective parts before production line stop.

φ12・φ13・φ16 Cap Tip type

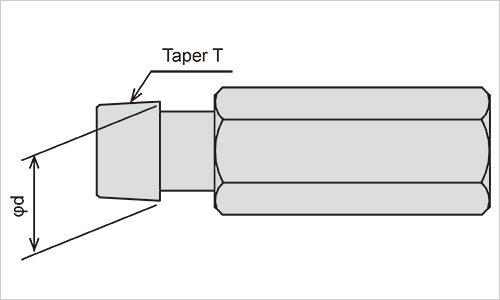

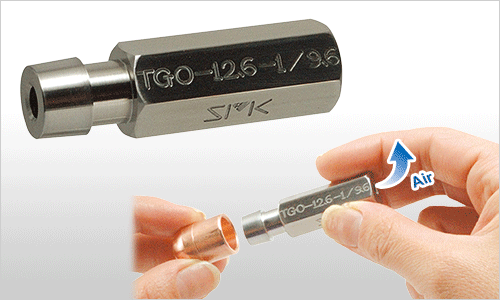

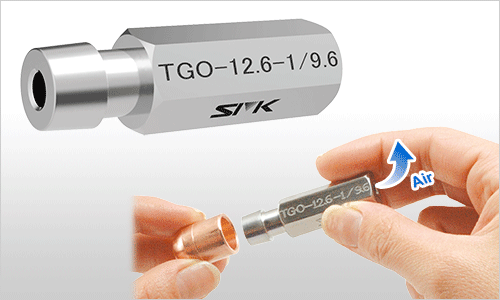

Male Taper Gauge for Cap Tip

Suitable for taper measurement of Cap Tip.
Tip diameter φｄ T
φ12･φ13 10 1/9.6
φ12･φ13 10 1/10
φ16 12.6 1/9.6
φ16 12.6 1/10
φ16 12.7 1/10

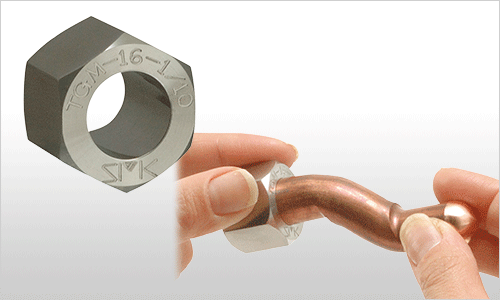

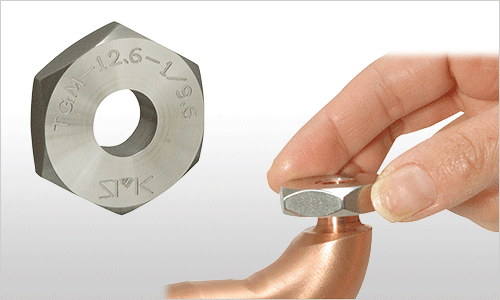

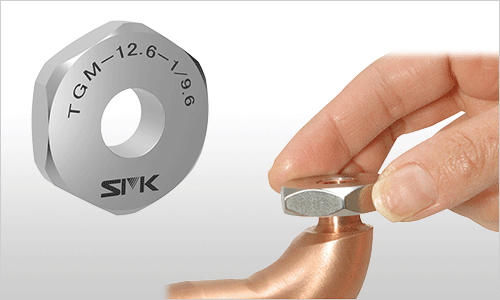

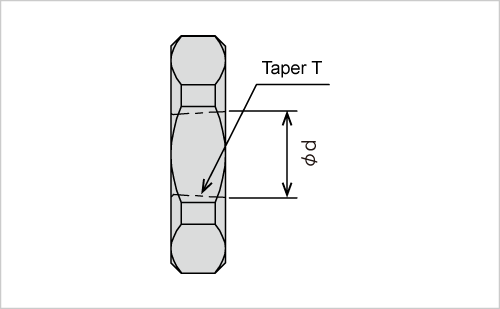

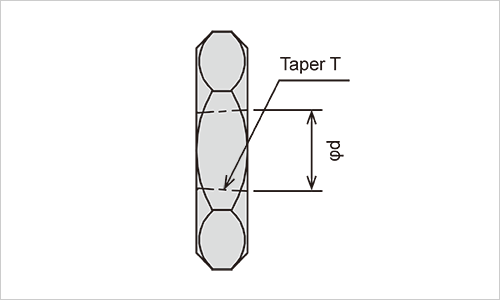

Female Taper Gauge for Shank

Suitable for measurement of tapered parts of gun arm, shank, tip base, etc.

Tip diameter φｄ T
φ12･φ13 10 1/9.6
φ12･φ13 10 1/10
φ16 12.6 1/9.6
φ16 12.6 1/10
φ16 12.7 1/10

All-purpose type (φ12)

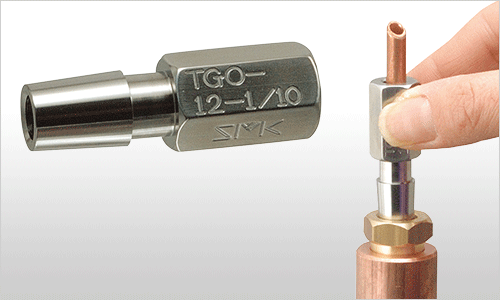

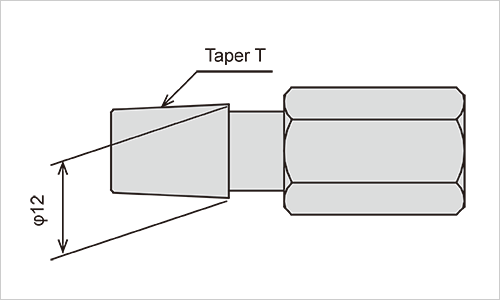

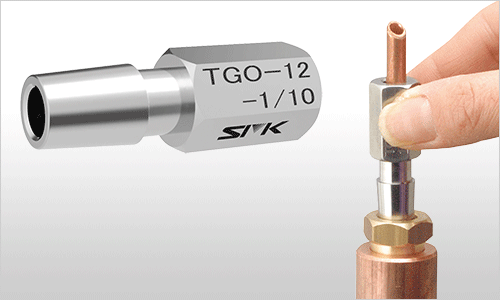

Male Taper Gauge

Suitable for inner taper measurement of adapters, L-type holders, straight holders, etc.
Gauge diameter T
φ12 1/10
φ12 MT#1

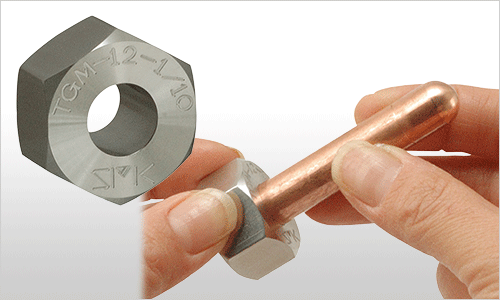

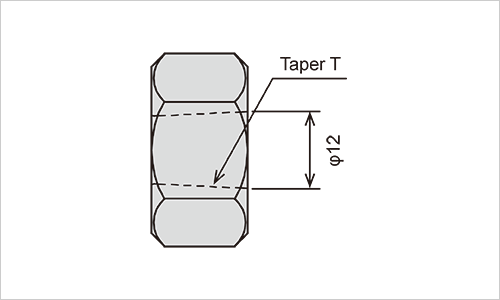

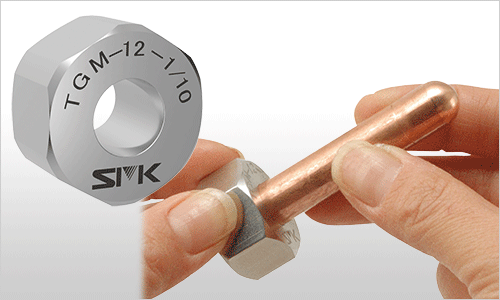

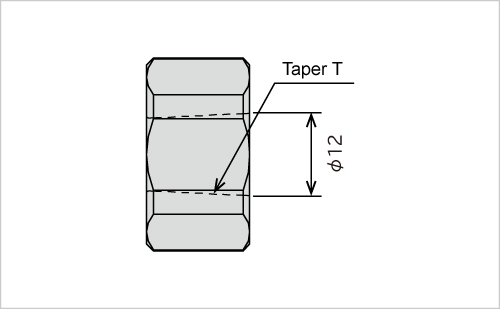

Female Taper Gauge

Suitable for outer taper measurement of straight tips, shanks, etc.
Gauge diameter T
φ12 1/10
φ12 MT#1

All-purpose type (φ16)

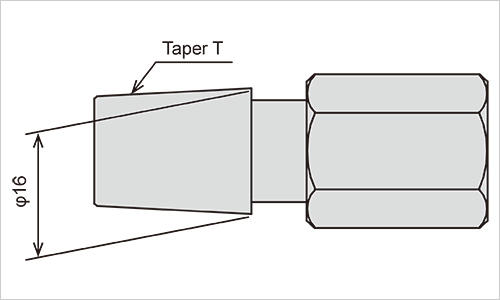

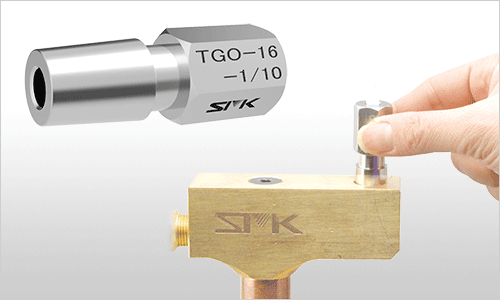

Male Taper Gauge

Suitable for inner taper measurement of  L-type holders, adapters,straight holders, etc.
Gauge diameter T
φ16 1/10
φ16 MT#2
φ16 1/5

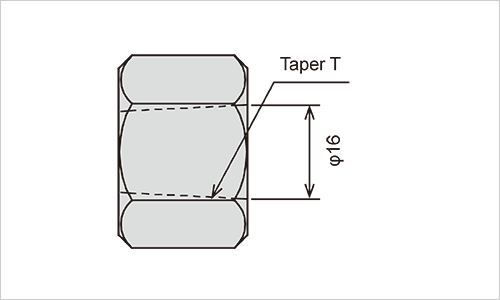

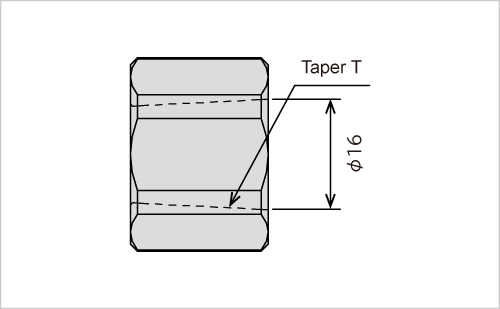

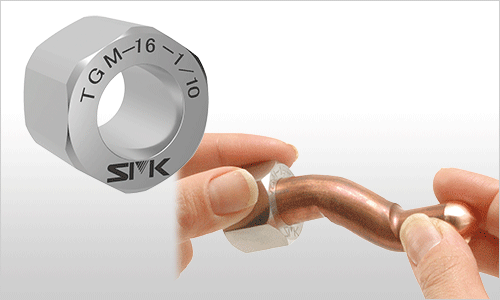

Female Taper Gauge

Suitable for outer taper measurement of bent tips, straight tips, holders, etc.
Gauge diameter T
φ16 1/10
φ16 MT#2
φ16 1/5
