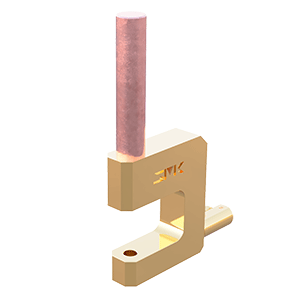

C Type Holder

Overview

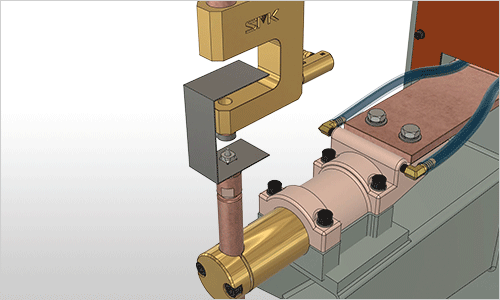

C type holder is suitable for nut and bolt welding to a U-shaped workpiece.

- Registered design

Features

Reduce deflection at the time of pressing.

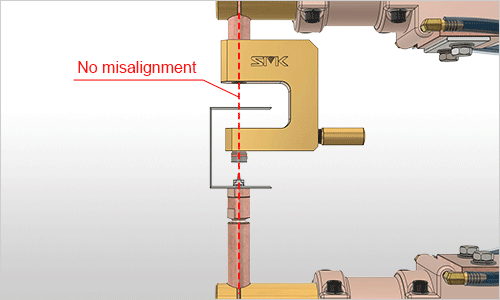

For L type holder, if center to center measurement is long, the amount of deflection increases during pressurization. For C type holder, the upper and lower holder parts and electrodes are coaxial so the deflection is reduced during pressurization.

Insure good quality welds.

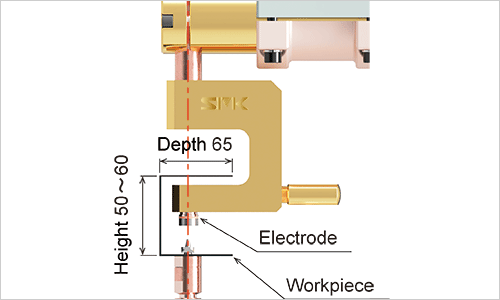

Channel type workpiece allowable size as a guide.

Example of use

Height (inside dimension) up to 50mm～60mm x depth (inside dimension) up to 65mm
Custom-made is also available. Contact us for detail.

WEB Catalog

BUY

Related products

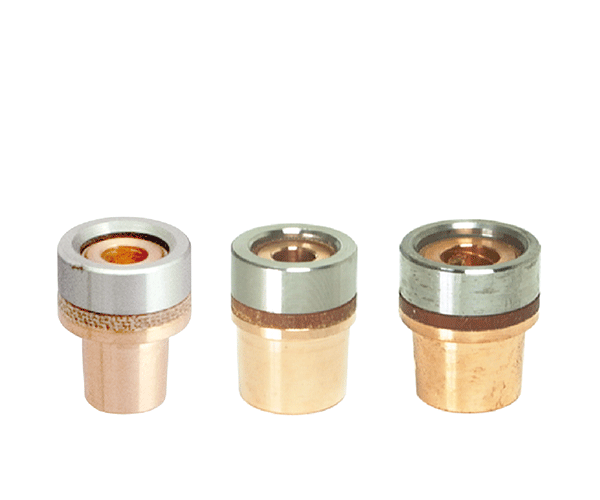

Missing-Part Prevention Outer Taper Tip for Nut Welding

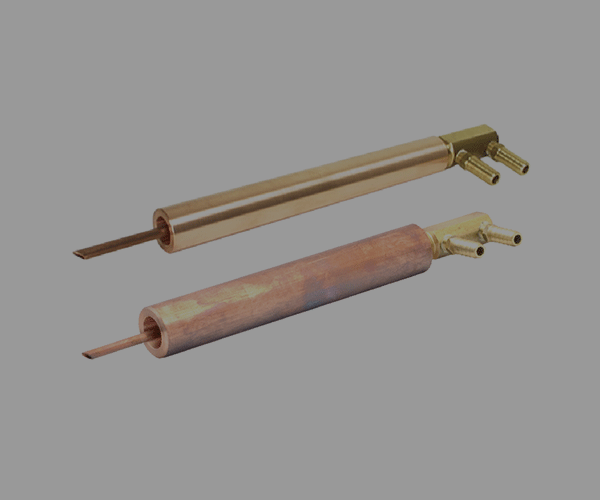

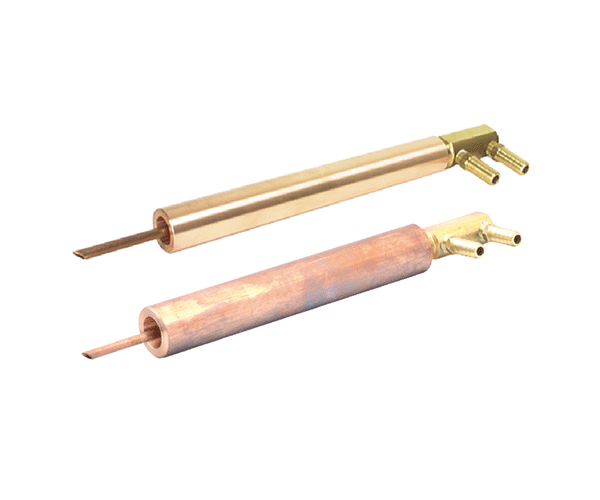

Straight Holder

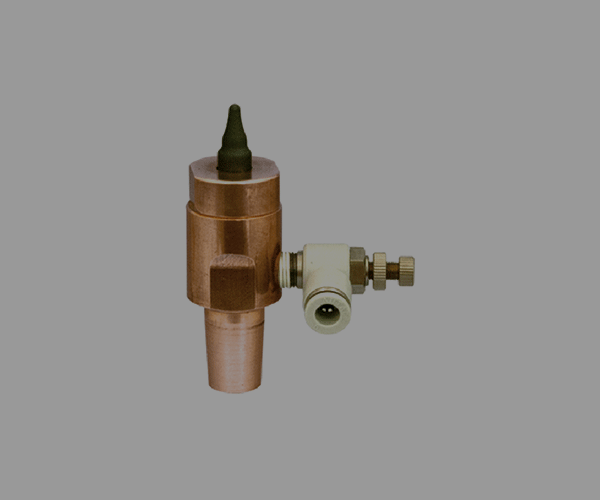

Lower Electrode Set for Nut Welding

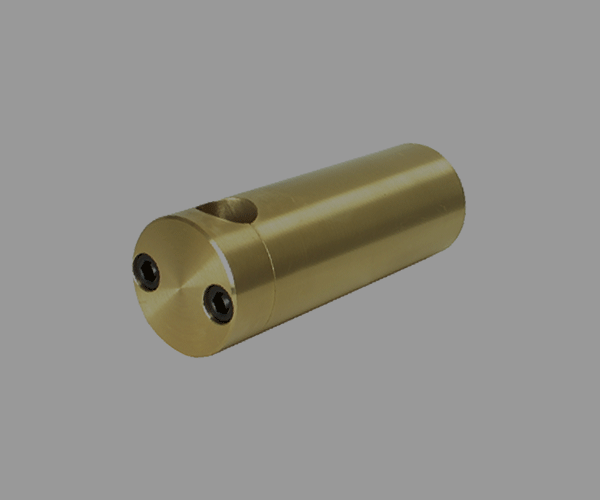

Horn
